ARITA Air Vent Valve รุ่น CAV-N300 วาล์วระบายอากาศอัตโนมัติแบบเกลียว NPT สำหรับระบบท่อน้ำ น้ำมัน และก๊าซ ช่วยระบายอากาศออกจากระบบโดยอัตโนมัติ พร้อมป้องกันการรั่วไหลของของเหลวด้วยระบบลูกลอยสแตนเลสและซีล EPDM ตัววาล์วผลิตจาก Ductile Iron แข็งแรง ทนต่อการใช้งานในงานอุตสาหกรรม รองรับมาตรฐาน BS EN 1074-4 และ BS EN 12266 รองรับแรงดันใช้งานสูงถึง 21 Bar และทดสอบแรงดันที่ 31 Bar เหมาะสำหรับระบบท่อและงานโรงงานอุตสาหกรรมทั่วไป

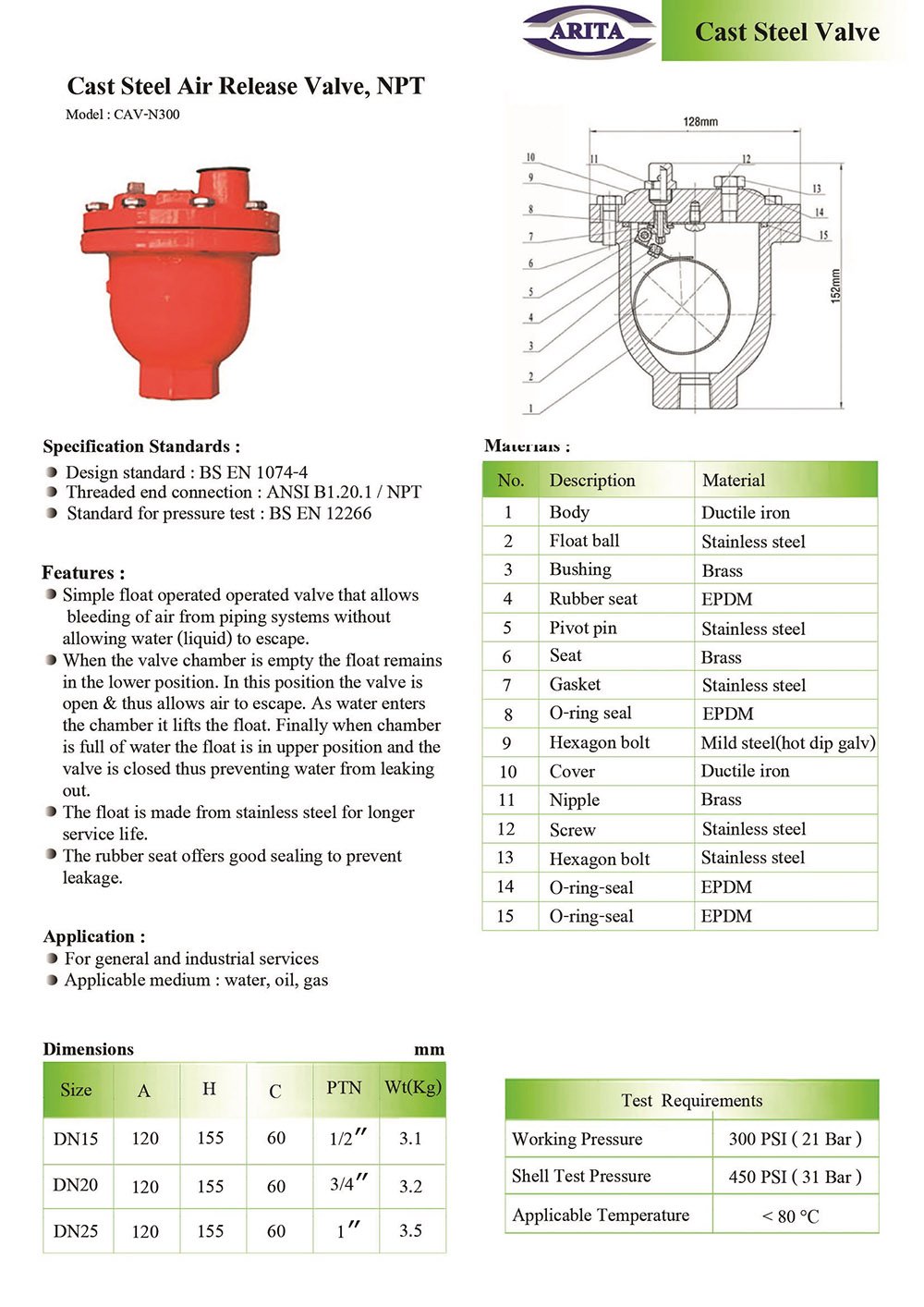

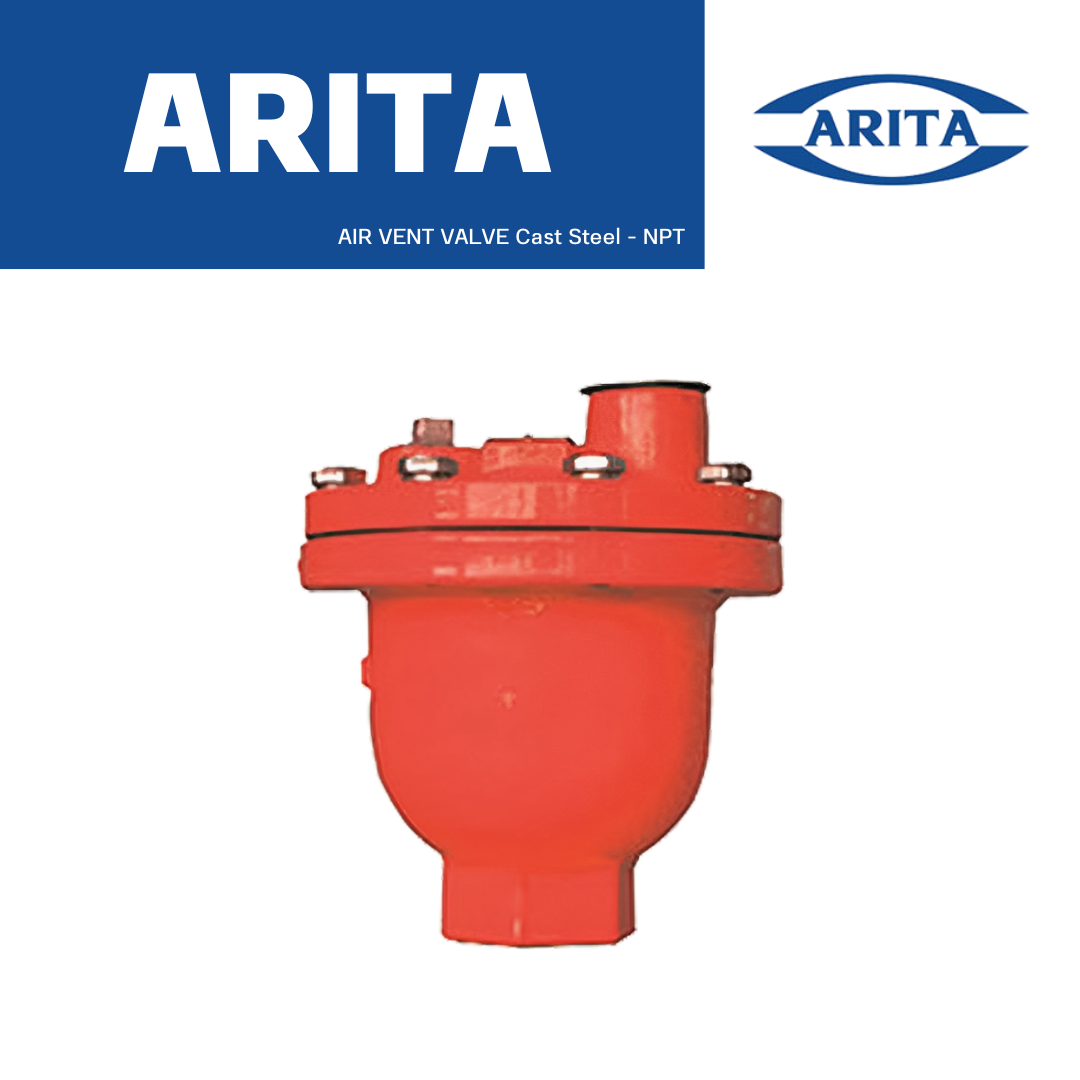

ARITA Cast Steel Air Vent Valve, NPT
Model : CAV-N300
Specification Standards:
- Size 1/2", 3/4" และ 1" นิ้ว
- Design standard: BS EN 1074-4
- Threaded end connection: ANSI B1.20.1/NPT
- Standard for pressure test: BS EN 12266
Features:
- Simple float operated operated valve that allows bleeding of air from piping systems without allowing water (liquid) to escape.
- When the valve chamber is empty the float remains in the lower position. In this position the valve is open & thus allows air to escape. As water enters the chamber it lifts the float. Finally when chamber is full of water the float is in upper position and the valve is closed thus preventing water from leaking out.
- The float is made from stainless steel for longer service life.
- The rubber seat offers good sealing to prevent leakage.
Application:
- For general and industrial services
- Applicable medium: water, oil, gas
Parts /Materials /Test Requirements
Body : Ductile iron
Float ball : Stainless steel
Bushing : Brass
Rubber seat : EPDM
Pivot pin : Stainless steel
Seat : Brass
Gasket : Stainless steel
O-ring seal : EPDM
Hexagon bolt : Mild steel(hot dip galv)
Cover : Ductile iron
Nipple : Brass
Screw : Stainless steel
Hexagon bolt : Stainless steel
O-ring-seal : EPDM
O-ring-seal : EPDM
Working pressure : 300 PSI (21 Bar)
Shell test pressure : 450 PSI (31 Bar)
Applicable temperature : <80 °C
