Sporlan distributor

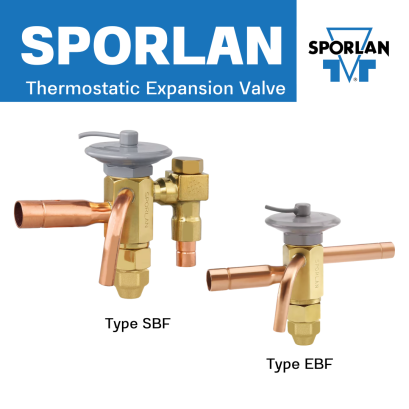

SPORLAN-SBF&EBF

Sporlan distributor Type SBF & EBF • SBFV-AAA • SBFV-AA • SBFV-A • SBFV-B • SBFV-C • SBFVE-AAA • SBFVE-AA • SBFVE-A • SBFVE-B • SBFVE-C • SBFV-AAA • SBFV-AA • SBFV-A • SBFV-B • SBFV-C • SBFVE-AAA • SBFVE-AA • SBFVE-A • SBFVE-B • SBFVE-C ฯลฯ Markets : • Air Conditioning • Refrigeration – Food Retail • Transportation • Industrial – Food Storage units Applications : • Systems with widely varying operating conditions • Capacity ranges from 1/8 to 5 ton R-22 • Supermarket cases and rack systems, Food and Beverage units • Air Conditioning – Residential, Commercial, Chillers • Transportation – Units on Truck/Trailer, Bus and Vans

ขายแล้ว 0 ชิ้น

฿0 ฿0

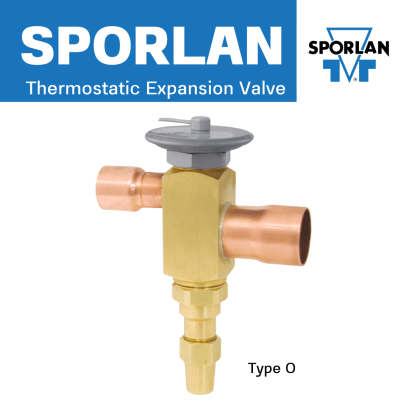

SPORLAN-O

Sporlan distributor Type O OVE-15, OVE-20, OVE-30, OVE-40, OVE-55, OVE-70 ฯลฯ Application : Commercial Refrigeration, Air Conditioning, Low Temp Refrigeration, Chiller Product Type : Small O- Valve or Large O- Valve Refrigerant Type : R-134a, R-407A/ R-407C/ R-407F, R-507, R-404A, R-22, R-410A Thermostatic Charge : C, CP60, ZP, CP100, GA, CP115, Z, ZP35, ZP40, CP85, N, CP180 Nominal Capacity : 1/6 to 60 ton Inlet Connection Size : 5/8 to 1-3/8 (ODF) inch Outlet Connection Size : 5/8 to 1-3/8 (ODF) inch Maximum Operating Pressure : 31 or 48.3 bar, 450 or 700 psi Equalizer Connection Type : 1/4" ODF or 1/4" SAE, Externally Equalized Body Material : Brass Connection Type : ODF Solder

ขายแล้ว 0 ชิ้น

฿0 ฿0

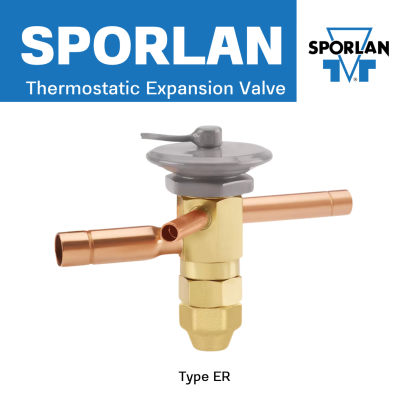

SPORLAN-ER

Sporlan distributor Type ER ERVE-1, ERVE-1-1/2, ERVE-2, ERVE-3, ERVE-4, ERVE-5, ERVE-6, ERVE-8, ERVE-10, ERVE-12, ERZE-1, ERZE-1-1/2, ERZE-2, ERZE-3, ERZE-4, ERZE-5, ERZE-6, ERZE-8, ERZE-12-1/2, ERZE-15 Evaporator Temperature : 40 °F (nom), 5 °C (nom) Liquid Temperature : 100 °F (nom), 37.8 °C (nom) Pressure Drop : 60, 100, or 160 psi (nom), 4, 6, or 11 bar (nom) Maximum Operating Pressure : 31 or 48.3 bar, 450 or 700 psi Equalizer Connection Type : N/A, 1/4" ODF, or 6MM, Internally or Externally Equalized Refrigerant Type : R-448A/ R-449A, R-134A, R-407A/ R-407C/ R-407F, R-290, R-404A, R-22, or R-410A Thermostatic Charge : C, Z, ZP40, CP100, CP60, GA, ZP, CP180, or N Nominal Capacity : 1/6 to 15 ton Inlet Connection Size : 1/4 to 7/8 inch (ODF), 10 or 12mm Outlet Connection Size : 3/8 to 1-1/8 inch (ODF), 12mm or 16mm

ขายแล้ว 0 ชิ้น

฿0 ฿0

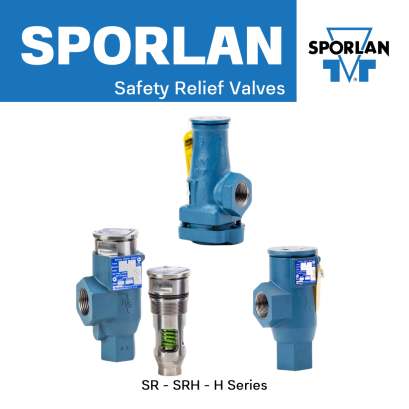

SPORLAN-SR-SRH-H

Sporlan distributor Type SR1, SR2, SR3, SR4, SRH1, SRH2 and SRH3 Series • Minimum Operating Temperature : -40 °C, -40° °F • Maximum Operating Temperature : 150 °C, 300 °F • Minimum Ambient Temperature : -29 °C, -20° °F • Maximum Ambient Temperature : 94 °C, 200° °F • Pressure Relief Setting : 10.3 to 27.6 barg, 150 to 400 psig • Maximum Operating Pressure : 27.6 barg, 400 psig • Valve Material : External : Cast Iron, Internal: Stainless Steel, Seat: PTFE • Inlet Connection Size : 1/2" to 1.1/4" • Outlet Connection Size : 3/4" to 2.1/4" • Orifice Size : 10.4 to 19.05 mm, .409" to 3/4" inch • Air Flow Rate : 130 to 1776 SCFM, 10 to 164 lb/min • Application : Vapor Only

ขายแล้ว 0 ชิ้น

฿0 ฿0

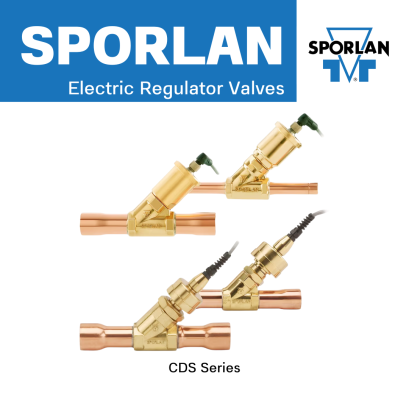

SPORLAN-CDS

Sporlan distributor Type • CDS-16, CDST-17, CDST-2, CDST-4, CDST-7 , CDST-7, CDST-9, CDS-17, CDS-2, CDS-4, CDS-7, CDS-9 Application • Electric Evaporator Pressure Regulators Refrigerant Type • All common HCFC and HFC refrigerants including R-410A and subcritical R-744. Motor Type • 2 Phase Bipolar Wet Motor For Fluid Type • All common Mineral, Polyester, and Alkybenzene oils. Input Voltage • 12 Volt DC -5% +10% (measured at the valve leads) Inlet Connection Size • 1/2" to 2.1/8" (ODF) inch Outlet Connection Size • 1/2" to 2.1/8" (ODF) inch

ขายแล้ว 0 ชิ้น

฿0 ฿0

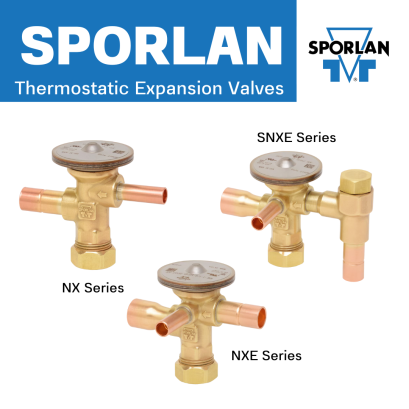

SPORLAN-NX-SNXE

Sporlan distributor Type NX Series NXE Series SNXE Valves Series Element Material • Stainless Steel Maximum Operating Pressure • 48 bar, 700 psi Evaporator Equalizer Size • N/A, 1/4 " inch Capillary Tube Length • 0.762 m, 30 inch Maximum Ambient Temperature • 65 °C, 150 °F Application • Refrigeration

ขายแล้ว 0 ชิ้น

฿0 ฿0

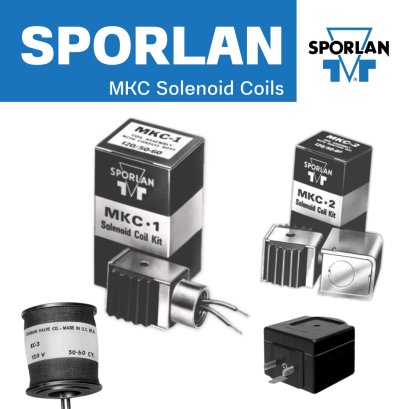

SPORLAN-MKC

Sporlan Solenoid Coil Type • MKC-1, MKC-2, OMKC-1, OMKC-2, MKC-2E, MKC-1E, MKC-1TS, MKC-2TS, OMKC-2TS, MKC-2, OMKC-1E, OMKC-2E, Junction Box, Conduit Boss- NEMA 4 Watertight, DIN, Leads Only, Top Spade Input Voltage • 24VAC, 120VAC, 208-240VAC, 12VDC, 24VDC, 36VDC, 64VDC, 115VDC Application • Solenoid Coil- Normally Closed Valves or Solenoid Coil- Normally Open Valves Frequency • Not Applicable, 50, 60 or 50-60 Hz Lead Wire Color • Blue, Red, Red/Yellow/Black/Blue, Orange, Black or Not Applicable

ขายแล้ว 0 ชิ้น

฿0 ฿0

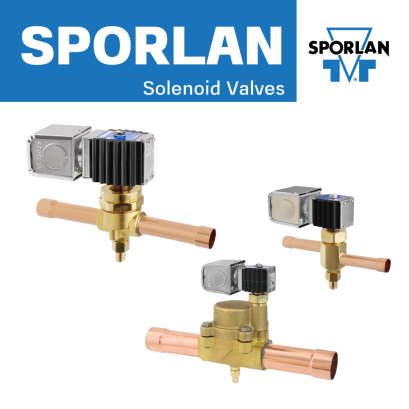

SPORLAN-01

Sporlan distributor • Types A3, E3 and E5 Series • Types B6 and E6 Series • Types B9 and E9 Series • Types B10 and E10 Series • Types B14 and E14 Series • Types B19 and E19 Series • Types B25 and E25 Series • Types E35 Series • Type E42 Series • Built-In Check Valve Series • Industrial Solenoid Valves Port Size • 3/16", 5/16", 19/32", 9/32", 7/16" Connection Size • 3/8", 1/2", 5/8", 7/8"

ขายแล้ว 0 ชิ้น

฿0 ฿0
