ตัวแทนจำหน่ายรายใหญ่ Arita valve ในประเทศไทย
ARITA Foot Valve รุ่น IFT-F1 ฟุตวาล์วเหล็กหล่อแบบหน้าแปลนมาตรฐาน JIS10K เหมาะสำหรับงานระบบน้ำและงานดูดน้ำในงานอุตสาหกรรม ตัววาล์วออกแบบให้ทำงานเงียบด้วยระบบ Short Linear Stroke พร้อม Full Port ช่วยให้การไหลมีประสิทธิภาพ ใช้วัสดุ GGG40 แข็งแรง พร้อมสปริงสแตนเลส SS316 และซีล NBR/EPDM ทนต่อการใช้งาน รองรับแรงดันใช้งาน 10 Bar และอุณหภูมิสูงสุด 80°C มีขนาดตั้งแต่ 2 นิ้ว ถึง 10 นิ้ว เหมาะสำหรับระบบปั๊มน้ำและงานท่ออุตสาหกรรมทั่วไป

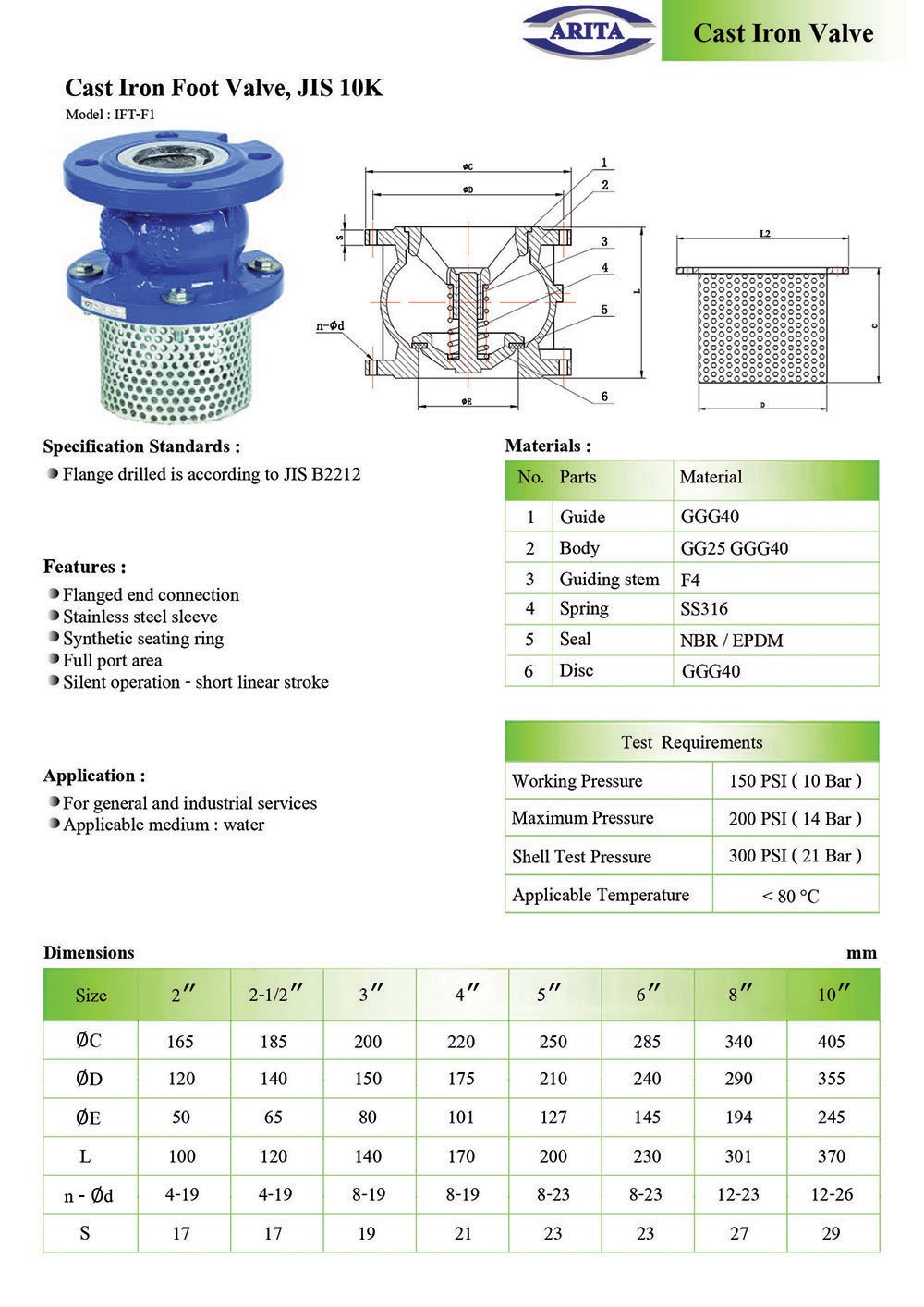

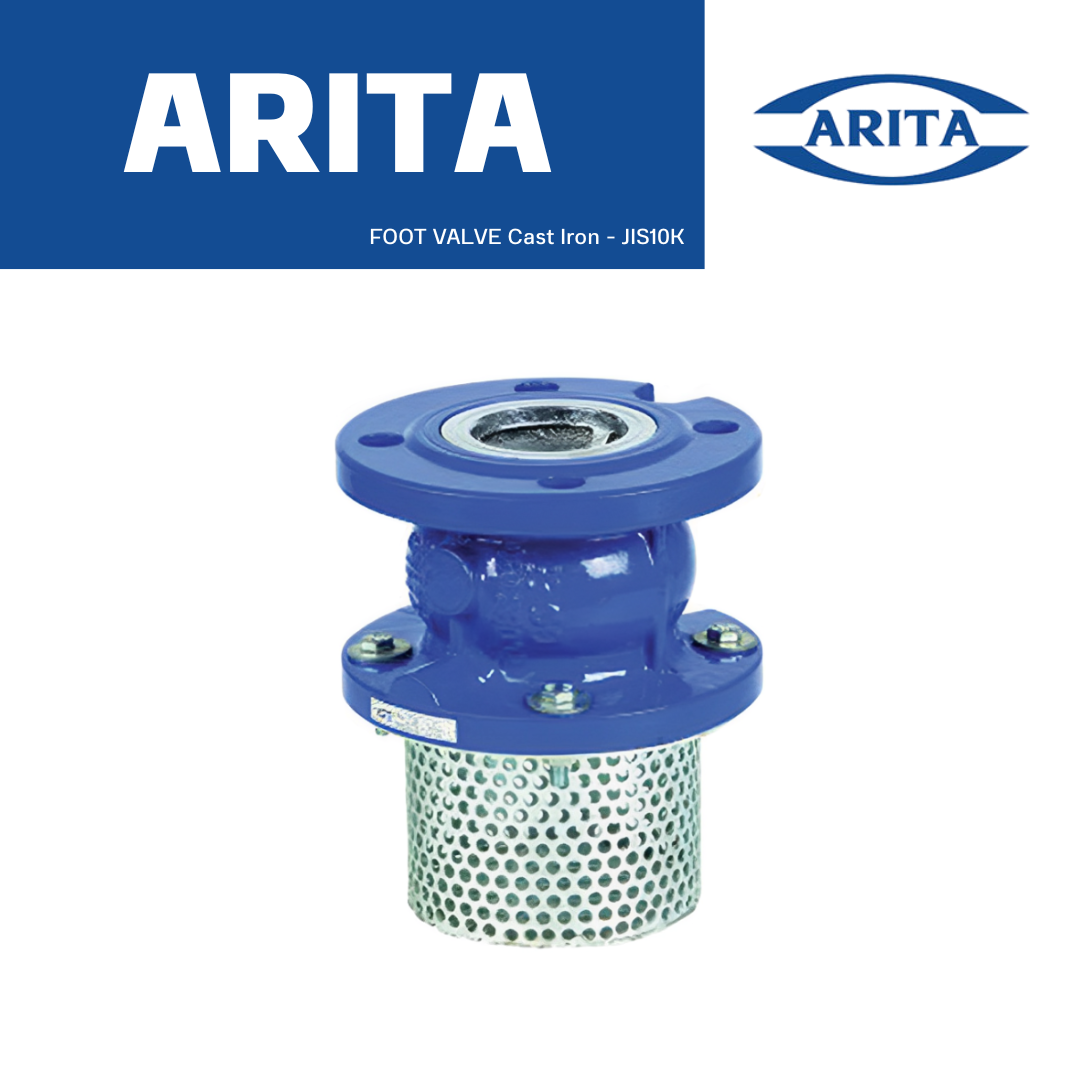

ARITA Cast Iron Foot Valve - JIS10K
Model. IFT-F1
Specification Standards:
- Size 2", 2.1/2", 3", 4", 5", 6", 8" และ 10" นิ้ว
- Flange drilled is according to JIS B2212
Features:
- Flanged end connection
- Stainless steel sleeve
- Synthetic seating ring
- Full port area
- Silent operation - short linear stroke
Application:
- For general and industrial services
- Applicable medium : water
Parts /Materials /Test Requirements
Guide : GGG40
Body : GG25 GGG40
Guiding stem : F4
Spring : SS316
Seal : NBR /EPDM
Disc : GGG40
Working pressure : 150 PSI (10 Bar)
Maximum pressure : 200 PSI (14 Bar)
Shell test pressure : 300 PSI (21 Bar)
Applicable temperature : <80 °C
