ตัวแทนจำหน่ายรายใหญ่ Arita valve ในประเทศไทย
ARITA Swing Check Valve รุ่น BSW-S200 สวิงเช็ควาล์วทองเหลืองแบบเกลียว BSPT Class 200 PSI ออกแบบเพื่อป้องกันการไหลย้อนกลับของของไหลในระบบอัตโนมัติ เหมาะสำหรับงานระบบน้ำ น้ำมันเบา และก๊าซที่ไม่กัดกร่อน ตัววาล์วผลิตจาก Forged Brass แข็งแรง ทนต่อการใช้งาน พร้อม Swing Type Disc ช่วยให้การเปิด-ปิดทำงานได้อย่างมีประสิทธิภาพ รองรับแรงดันใช้งาน 10 Bar และอุณหภูมิ -20 ถึง 120°C มีขนาดตั้งแต่ 1/2 นิ้ว ถึง 4 นิ้ว เหมาะสำหรับงานอุตสาหกรรมและระบบท่อทั่วไป

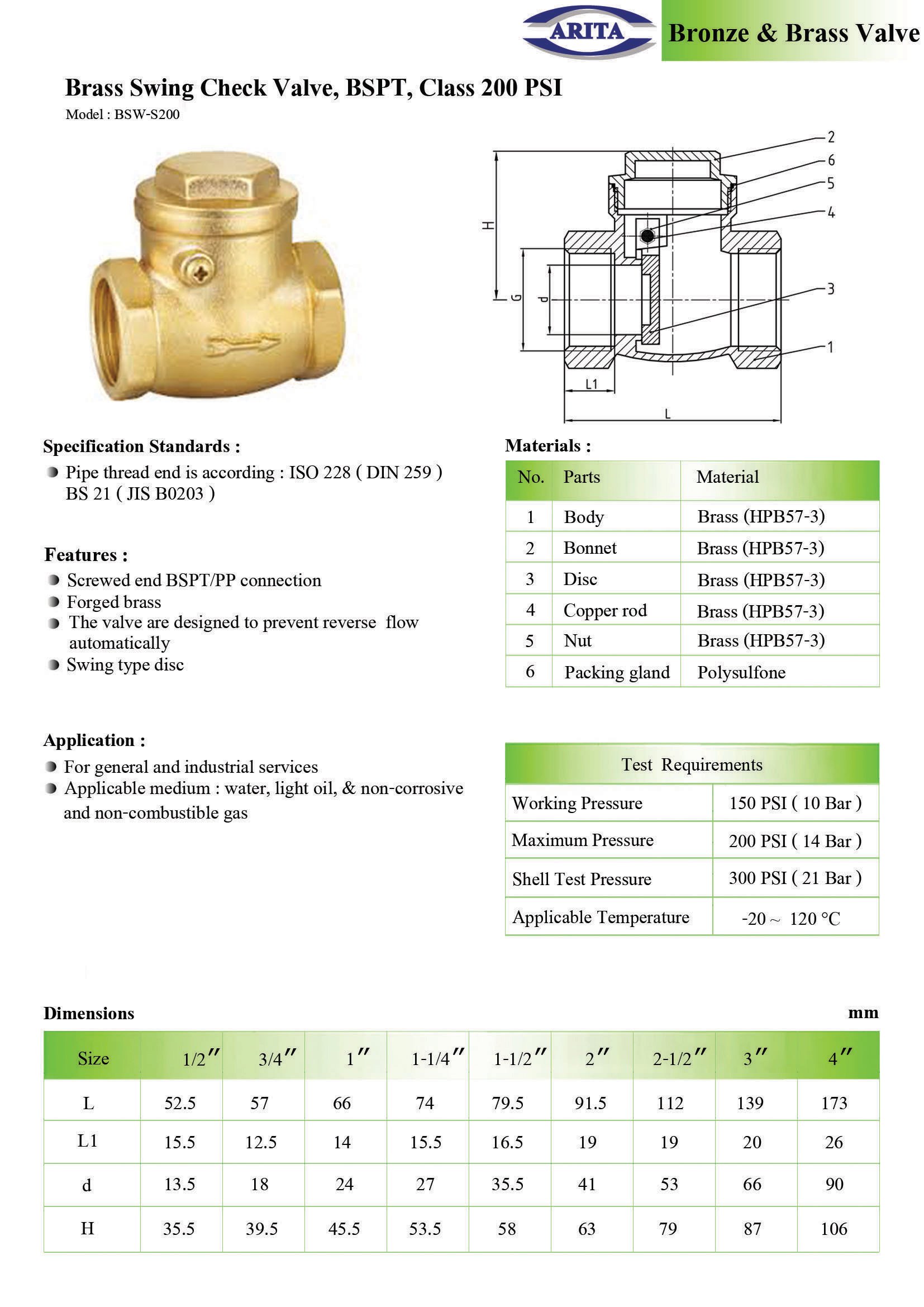

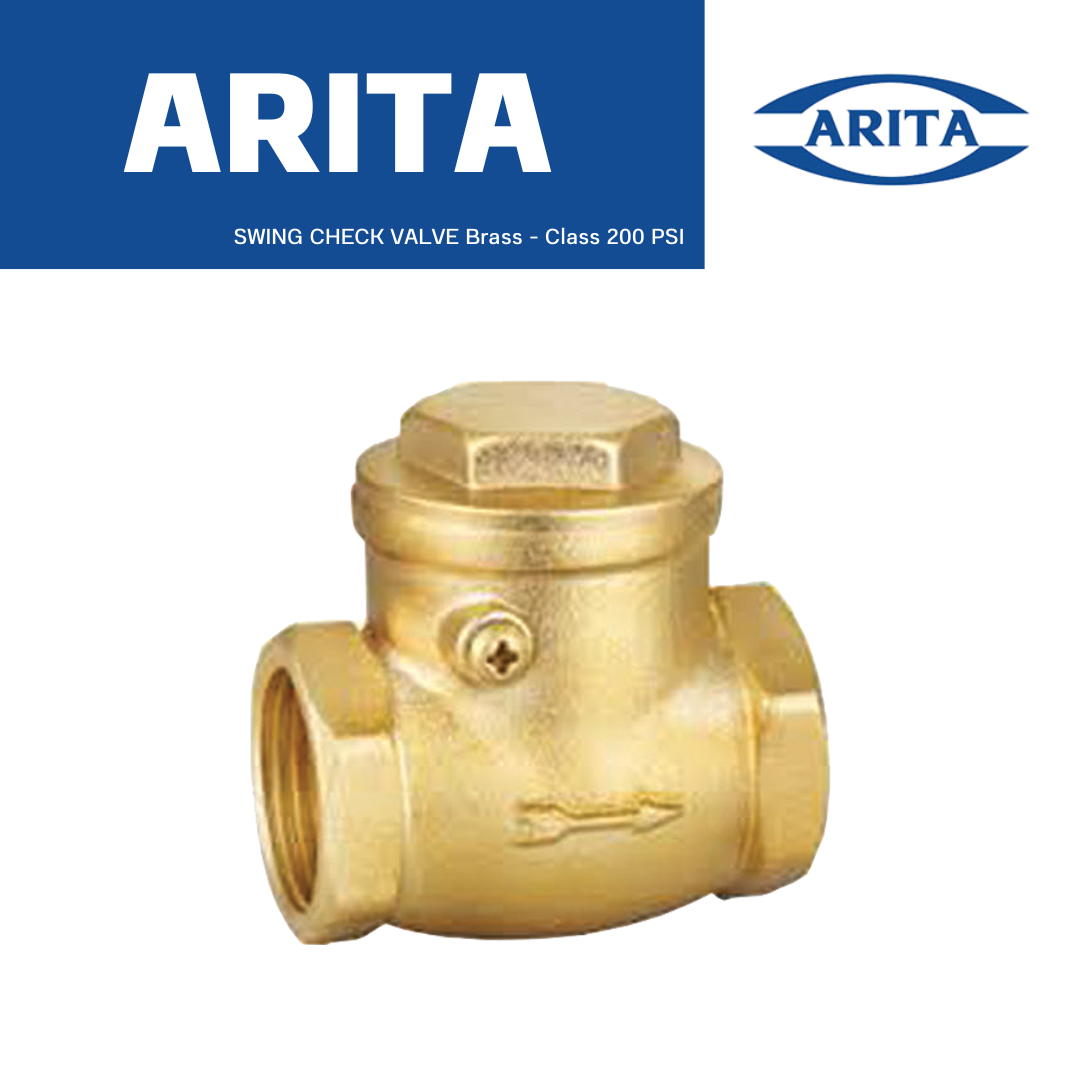

ARITA Brass Swing check valve, BSPT, Class 200 PSI
Model: BSW-S200
Specification Standards:
- Size 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2", 3" และ 4" นิ้ว BSPT
- Pipe thread end is according: ISO 228 (DIN 259) BS 21 (JIS B0203)
Features:
- Screwed end BSPT/PP connection
- Forged brass
- The valve are designed to prevent reverse flow automatically
- Swing type disc
Application:
- For general and industrial services
- Applicable medium : water, light oil, & non-corrosive and non-combustible gas
Parts /Materials /Test Requirements
Body : Brass (HPB57-3)
Bonnet : Brass (HPB57-3)
Disc : Brass (HPB57-3)
Copper rod : Brass (HPB57-3)
Nut : Brass (HPB57-3)
Packing gland : Polysulfone
Working Pressure : 150 PSI (10 Bar)
Maximum Pressure : 200 PSI (14 Bar)
Shell Test Pressure : 300 PSI (21 Bar)
Applicable Temperature : -20~120 °C
