ตัวแทนจำหน่ายรายใหญ่ Arita valve ในประเทศไทย

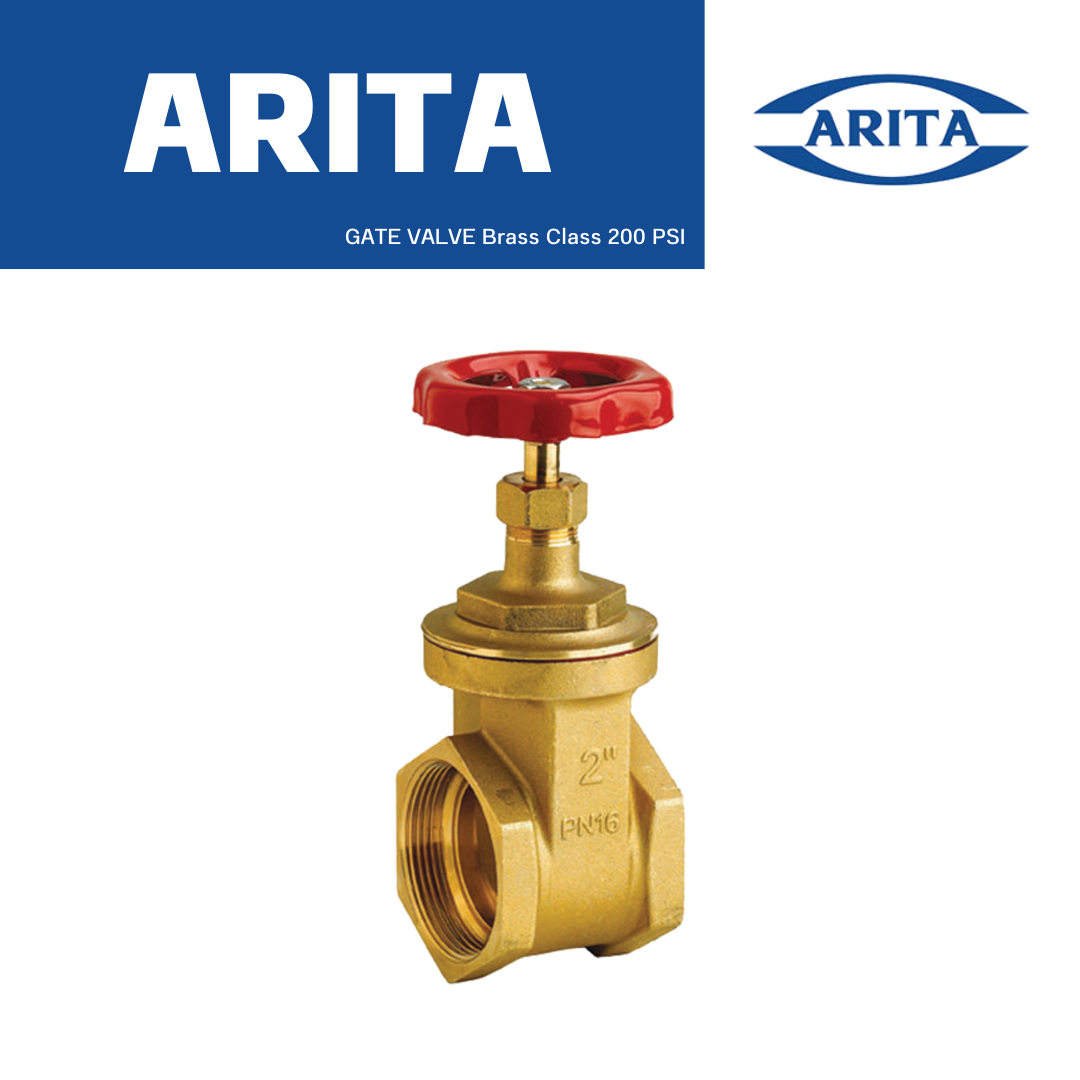

ARITA Gate Valve รุ่น BGA-AKZ เกทวาล์วทองเหลืองแบบเกลียว BSPT Class 200 PSI ออกแบบสำหรับงานระบบน้ำ น้ำมันเบา และก๊าซที่ไม่กัดกร่อน ตัววาล์วผลิตจาก Forged Brass แข็งแรง ทนต่อการใช้งานในงานอุตสาหกรรม ใช้ระบบเปิด-ปิดแบบ Hand Wheel พร้อม Non-Rising Stem และ Inside Wedge Disc ช่วยควบคุมการไหลได้อย่างมีประสิทธิภาพ รองรับแรงดันใช้งาน 10 Bar อุณหภูมิสูงสุด 120°C มีขนาดตั้งแต่ 1/2 นิ้ว ถึง 4 นิ้ว เหมาะสำหรับงานทั่วไปและงานโรงงานอุตสาหกรรม

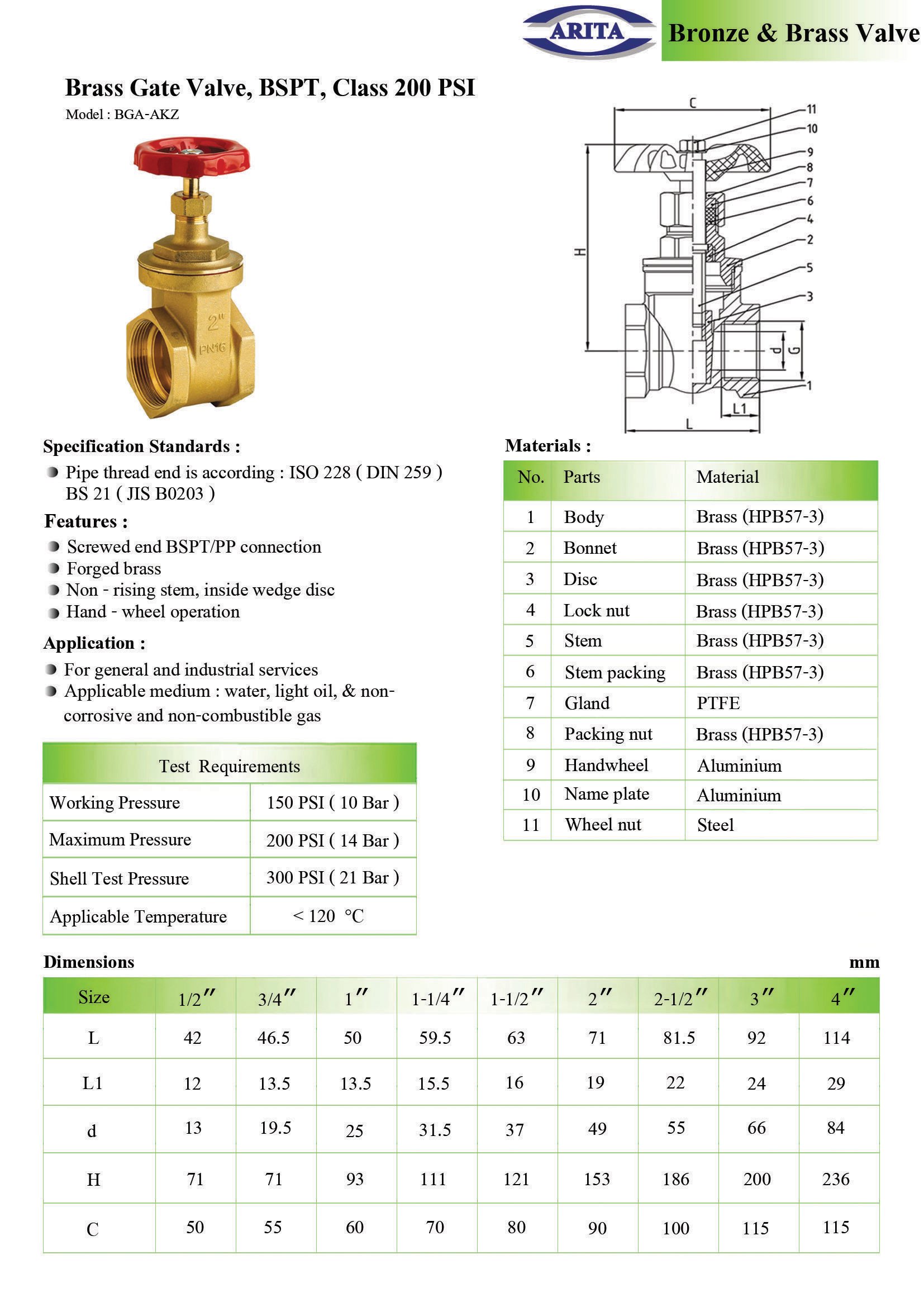

ARITA Brass Gate Valve, BSPT, Class 200 PSI
Model: BGA-AKZ
Specification Standards:
- Size 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2", 3", 4" นิ้ว BSPT/PP
(DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100)
- Pipe thread end is according : ISO 228 (DIN 259) BS 21 (JIS B0203)
Features:
- Screwed end BSPT/PP connection
- Forged brass
- Non-rising stem, inside wedge disc
- Hand - wheel operation
Application:
- For general and industrial services
- Applicable medium : water, light oil, & non- corrosive and non-combustible gas
Parts /Materials /Test Requirements
Body : Brass (HPB57-3)
Bonnet : Brass (HPB57-3)
Disc : Brass (HPB57-3)
Lock nut : Brass (HPB57-3)
Stem : Brass (HPB57-3)
Stem packing : Brass (HPB57-3)
Gland : PTFE
Packing nut : Brass (HPB57-3)
Handwheel : Aluminium
Name plate : Aluminium
Wheel nut : Steel
Working pressure : 150 PSI (10 Bar)
Maximum pressure : 200 PSI (14 Bar)
Shell test pressure : 300 PSI (21 Bar)
Applicable temperature : < 120 °C
