Arita ball valve รุ่น BBA-AF600 บอลวาล์วทองเหลืองแบบ Full Bore รองรับแรงดันสูงถึง 600 PSI (40 Bar) เหมาะสำหรับงานระบบน้ำ น้ำมัน และก๊าซในงานอุตสาหกรรม ผลิตจาก Forged Brass แข็งแรง พร้อมซีล PTFE ช่วยเพิ่มประสิทธิภาพการปิดผนึก รองรับอุณหภูมิการใช้งานสูงสุด 150°C มาพร้อมระบบเปิด-ปิดแบบ Lever และการเชื่อมต่อเกลียว BSPT ตามมาตรฐานสากล มีขนาดตั้งแต่ 1/4 นิ้ว ถึง 2 นิ้ว เหมาะสำหรับงานระบบท่อที่ต้องการความทนทานและความน่าเชื่อถือสูง

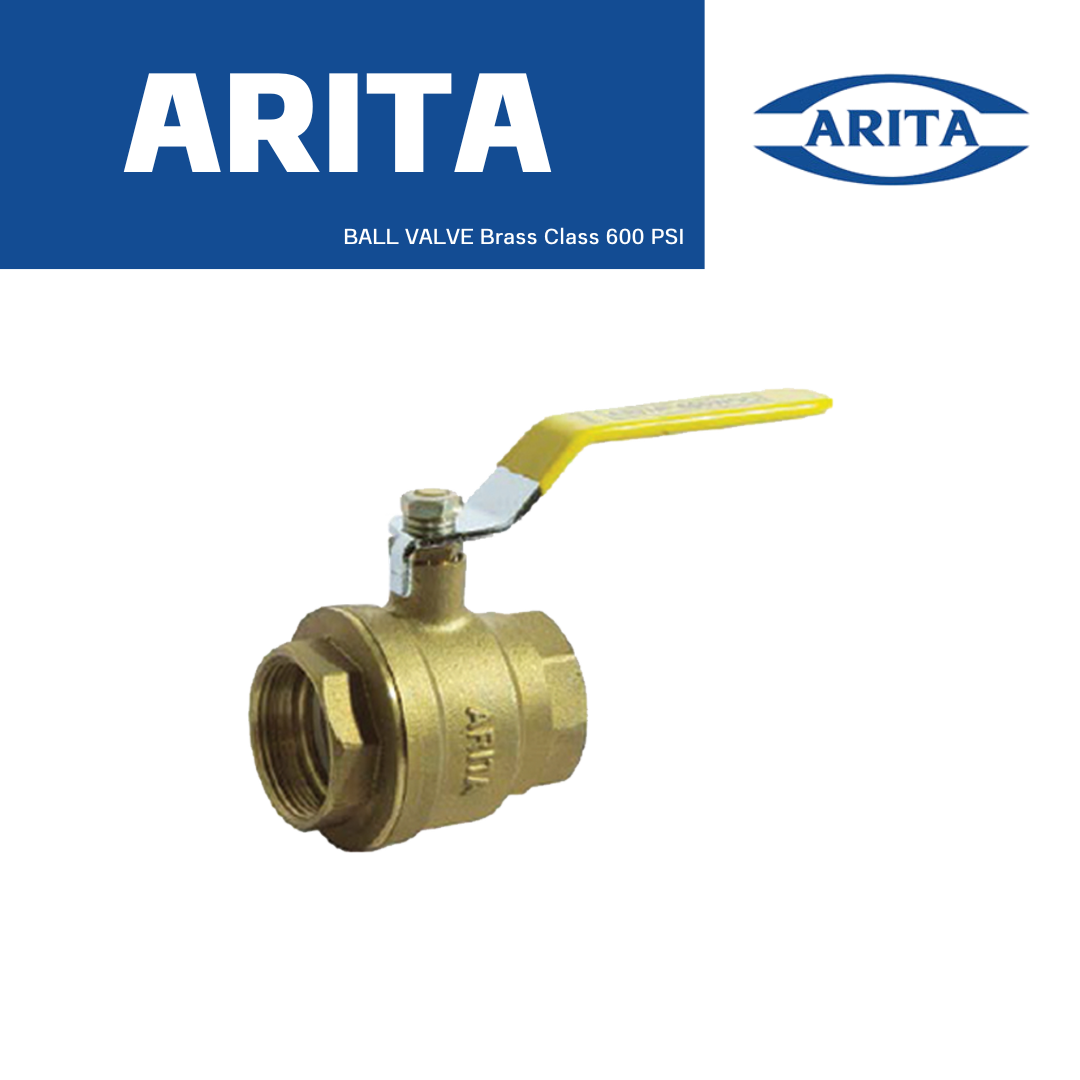

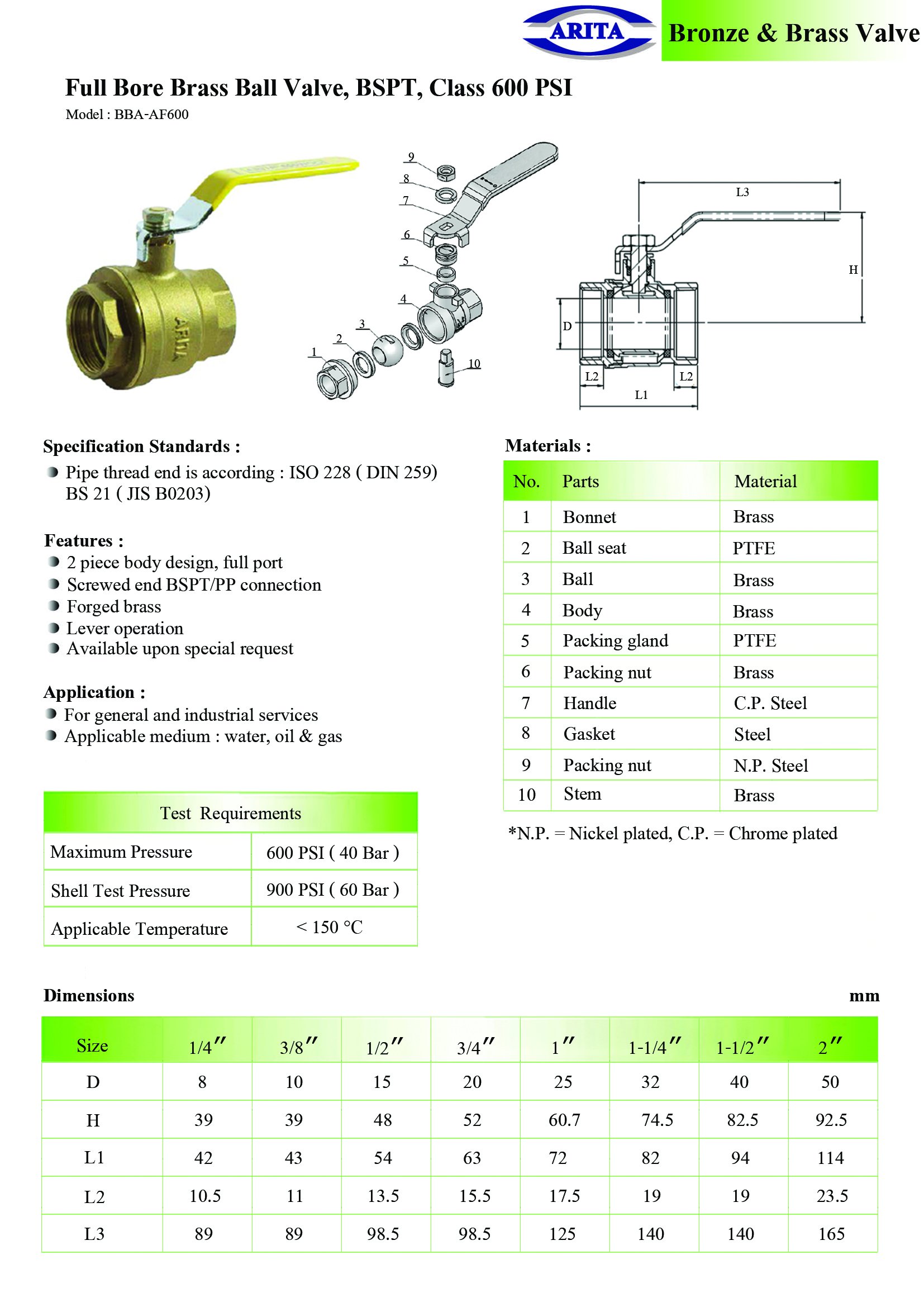

Full Bore Brass Ball Valve, BSPT, Class 600 PSI
Model : BBA-AF600
Specification Standards:
- Size 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2"
- Pipe thread end is according : ISO 228 (DIN 259) BS 21 (JIS B0203)
Features:
- 2 piece body design, full port
- Screwed end BSPT/PP connection
- Forged brass
- Lever operation
- Available upon special request
Application:
- For general and industrial services
- Applicable medium : water, oil & gas
Parts /Materials /Test Requirements
Bonnet : Brass
Ball seat : PTFE
Ball : Brass
Body : Brass
Packing gland : PTFE
Packing nut : Brass
Handle : C.P. Steel
Gasket : Steel
Packing nut : N.P. Steel
Stem : Brass
Maximum Pressure : 600 PSI (40 Bar)
Shell Test Pressure : 900 PSI (60 Bar)
Applicable Temperature : < 150 °C
