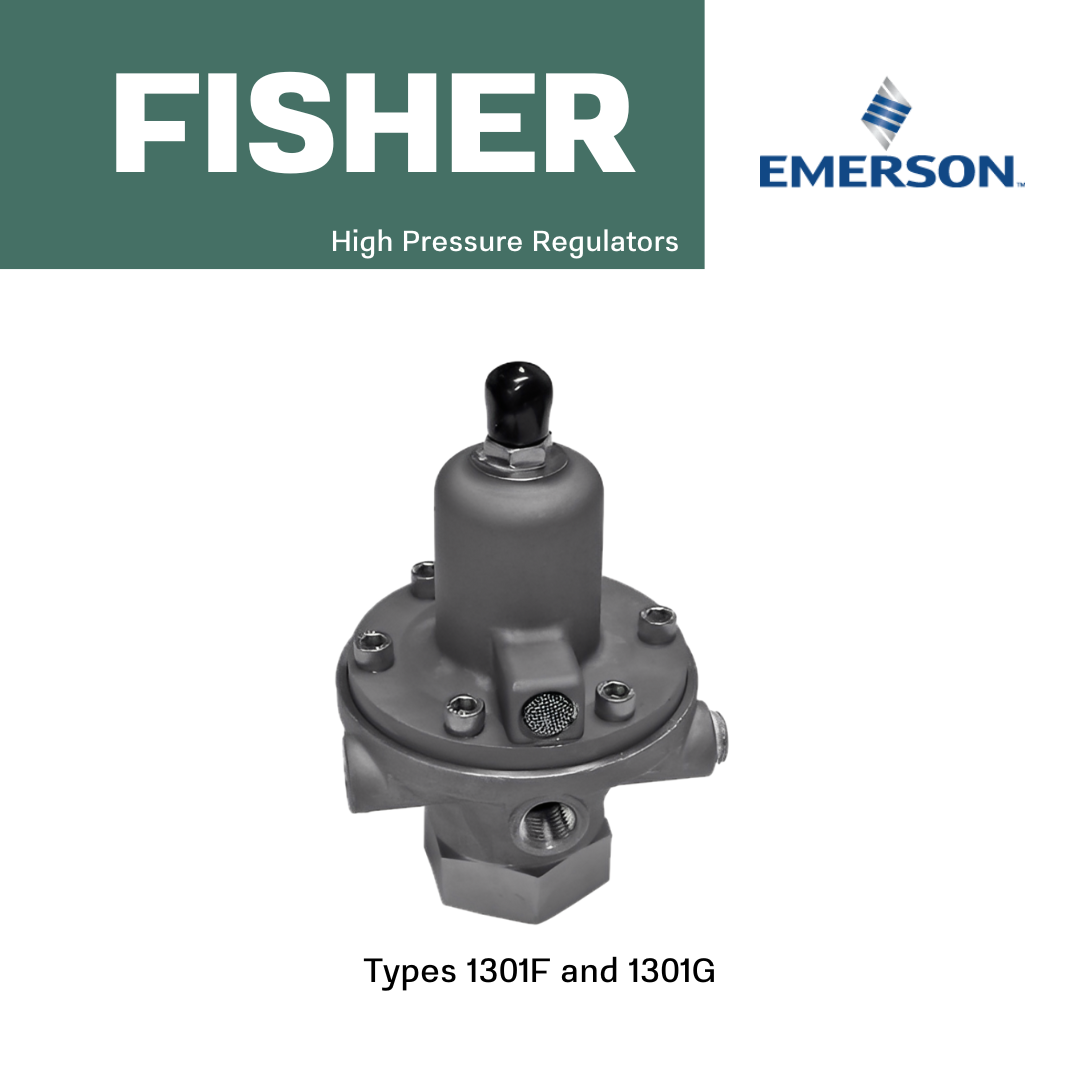

ตัวแทนจำหน่าย Fisher by Emerson Types 1301F and 1301G High Pressure Regulators ในประเทศไทย
Self-Operated High-Pressure Control
• These regulators are designed to operate without external power, offering simple and reliable high-pressure regulation.
Versatile Applications
Ideal for reducing high-pressure gas for:
• Pilot supply in pilot-operated regulators
• Loading pressure in pressure-loaded regulators
• General high-pressure gas service across a wide range of industries
Flexible Use with Various Gases
• Suitable for controlling the pressure of numerous gas types, making them highly adaptable for different systems and environments.
Features
High-Strength Stainless Steel Diaphragm
• Designed to handle high outlet pressure applications with durability and long-term performance.
Built-In Spare Valve Disk
• Comes with an extra valve disk, integrated into a reversible holder for quick and convenient replacement.
Broad Media Compatibility
• Suitable for regulating various fluids such as air, natural gas, water, and other liquids, offering great versatility in industrial use.
Leak-Tight Shutoff (ANSI Class VI)
• Equipped with soft-seat valve plug disks that provide a tight, reliable shutoff to prevent leakage.
Sour Gas Ready
• Available with special materials that meet NACE MR0175 and MR0103 standards for safe operation in sour gas environments.
Hydrogen Application Approved
• Engineered and tested for hydrogen service, ensuring compatibility, reduced leakage, and resistance to hydrogen embrittlement under demanding conditions.

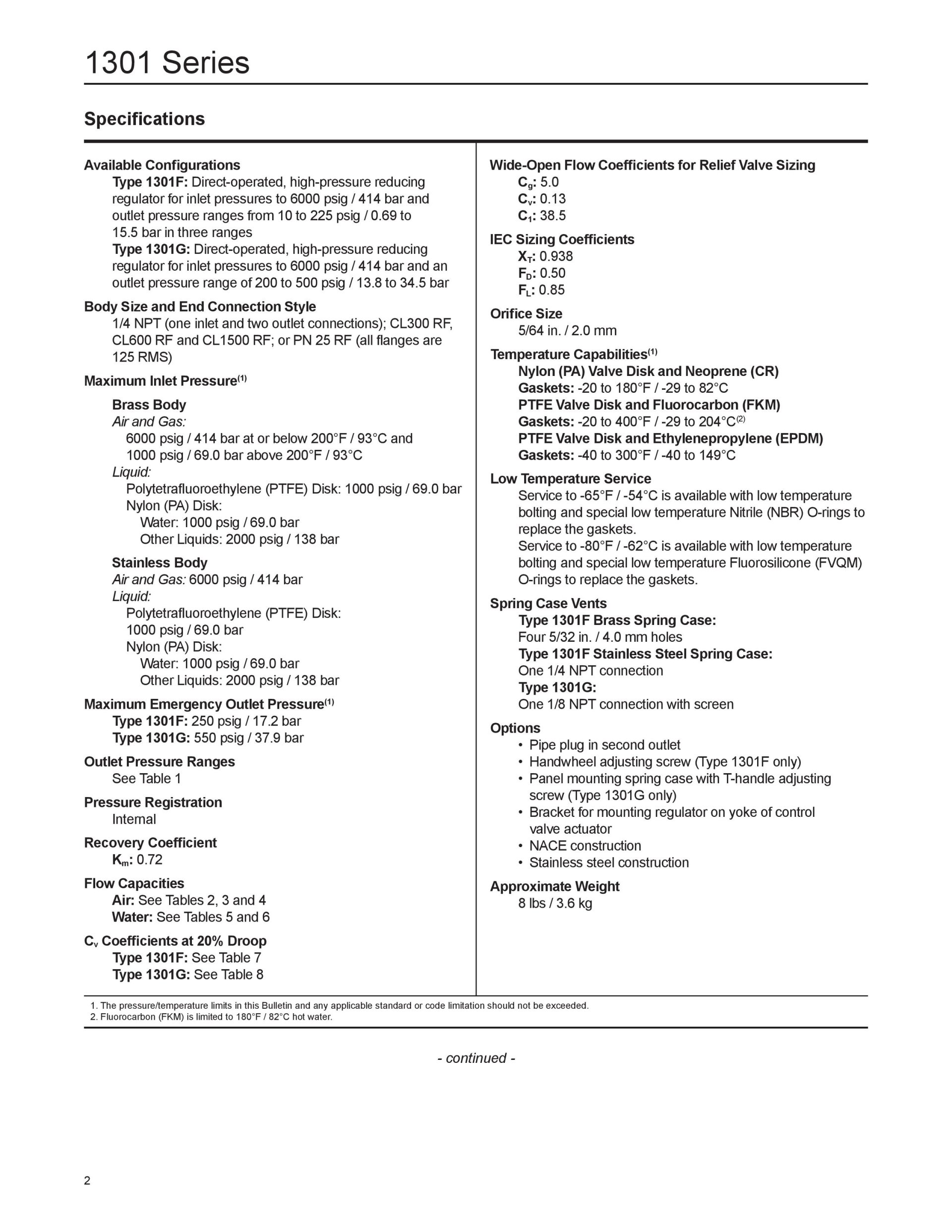

Specifications
Available Constructions
• 1301F Series: inlet 6000 psig / 414 bar, outlet ranges 10 to 225 psig / 0.69 to 15.5 bar
• 1301G Series: inlet 6000 psig / 414 bar, outlet ranges 200 to 500 psig / 13.8 to 34.5 bar
Body Size and End Connection Style
• 1/4 NPT
Maximum Inlet Pressure
Air and Gas:
• 6000 psig / 414 bar
Liquid:
• PTFE Disk: 1000 psig / 69.0 bar
• Nylon (PA) Disk: Water: 1000 psig / 69.0 bar, Other Liquids: 2000 psig / 138 bar
Outlet Pressure Ranges
• Type 1301F: 10 to 225 psig / 0.69 to 15.5 bar in three ranges
• Type 1301G: 200 to 500 psig / 13.8 to 34.5 bar
Standard Temperature Capabilities
• Nylon Disk & Neoprene Gaskets: -20 to 180°F / -29 to 82°C
High Temperature Capbailities
• PTFE Disk & FKM Gaskets: -20° to 400°F / -29 to 204°
• PTFE Disk & EPDM Gaskets: -40 to 300°F / -40 to 149°C
Pressure Registration
• Internal
Approximate Weight
• 8 Pounds / 3.6 kg
Additional Technical Data
• For additional technical information, contact your local Sales Office or refer to technical documentation.
