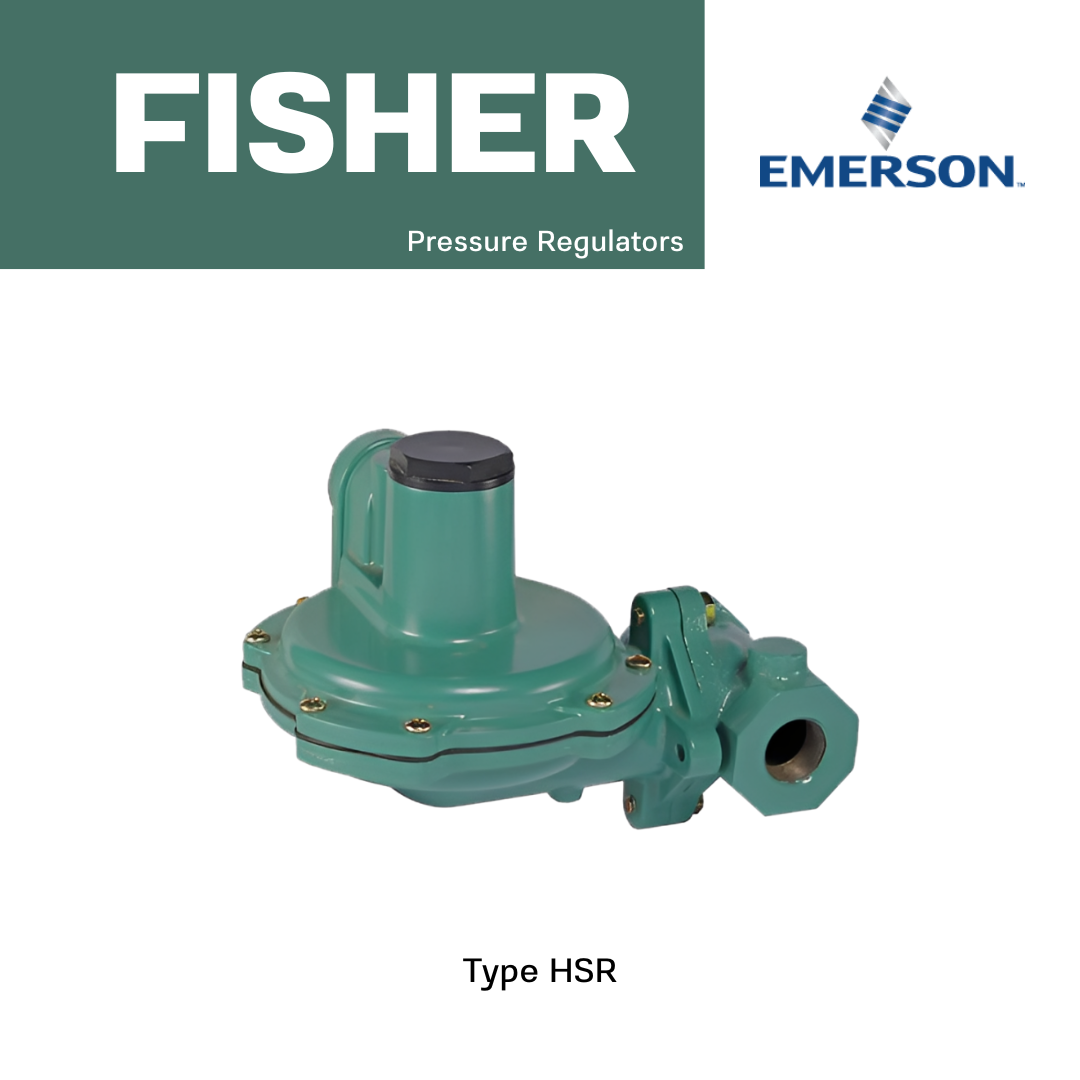

The Fisher Type HSR is a compact, cost-effective, direct-operated, spring-loaded pressure regulator designed for a wide range of residential, commercial, and industrial gas applications. Its construction and performance characteristics make it well-suited for use with natural gas, manufactured gas, or liquefied petroleum gas (LPG).
Features
• Angle Bodies
• Globe Bodies
• High Capacity
• Compact Design
• High Capacity Internal Relief
• Meets or Exceeds ANSI B109.4 / CGA 6.18 Requirements
• Fixed Factor / PFM Accuracy

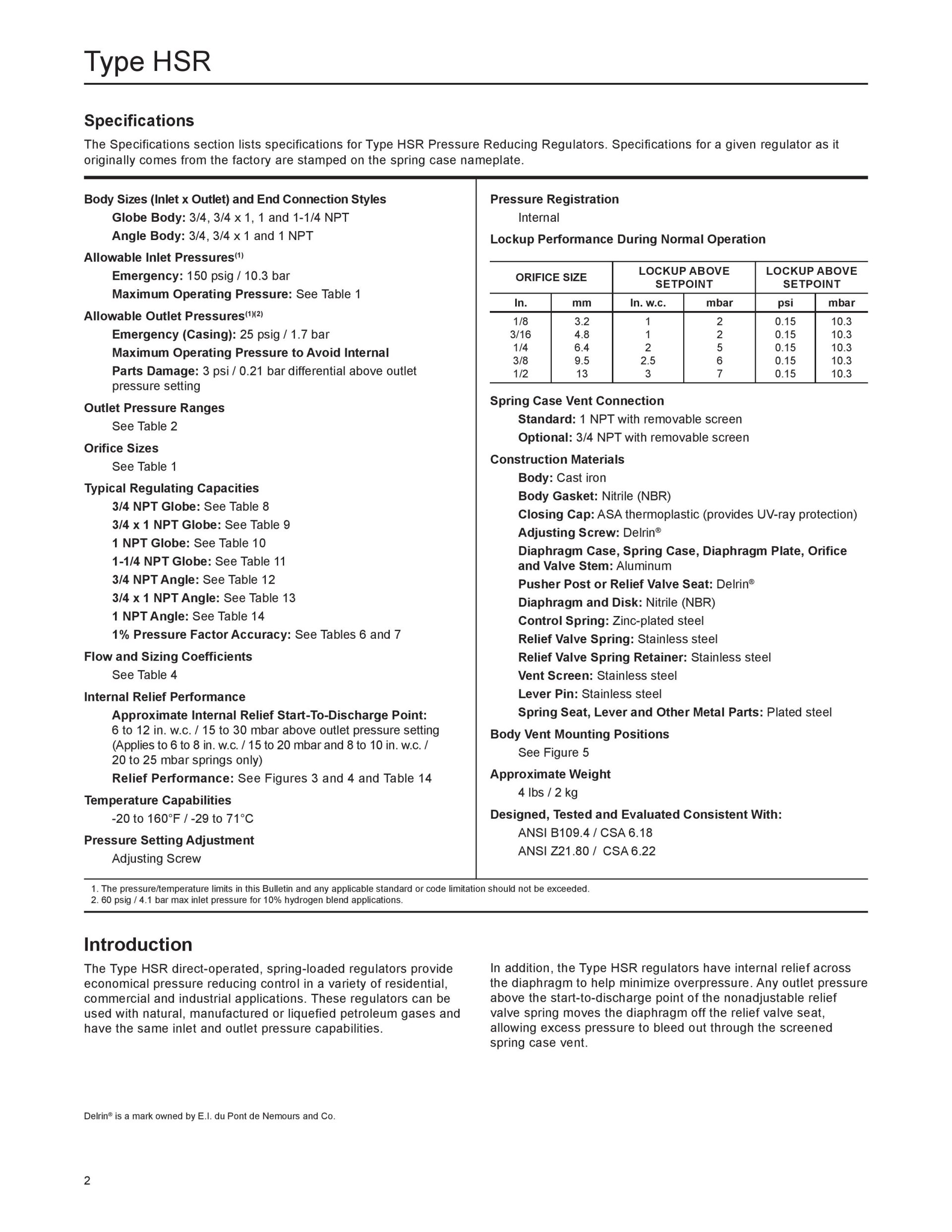

Specifications
Body Size and End Connection Styles
• NPS 3/4 x 3/4, 3/4 x 1, 1 x 1, NPT All sizes available in Globe or Angle Body
Allowable Inlet Pressure
• Emergency: 150 psig / 10,3 bar
• Maximum Operating Pressure: 125 psig / 8,6 bar
Allowable Outlet Pressure
• Emergency (Casing): 25 psig / 1,7 bar
• Maximum Operating Pressure to Avoid Internal Parts Damage: 3 psi / 0,21 bar differential above outlet pressure setting
Outlet Pressure Ranges
• 4-inches w.c. to 2.2 psig / 10 mbar to 0,15 bar in 7 ranges
Pressure Registration
• Internal
Temperature Capabilities
• -20 to 160°F / -29 to 71°C
Approximate Weight
• 4 Pounds / 2 kg
