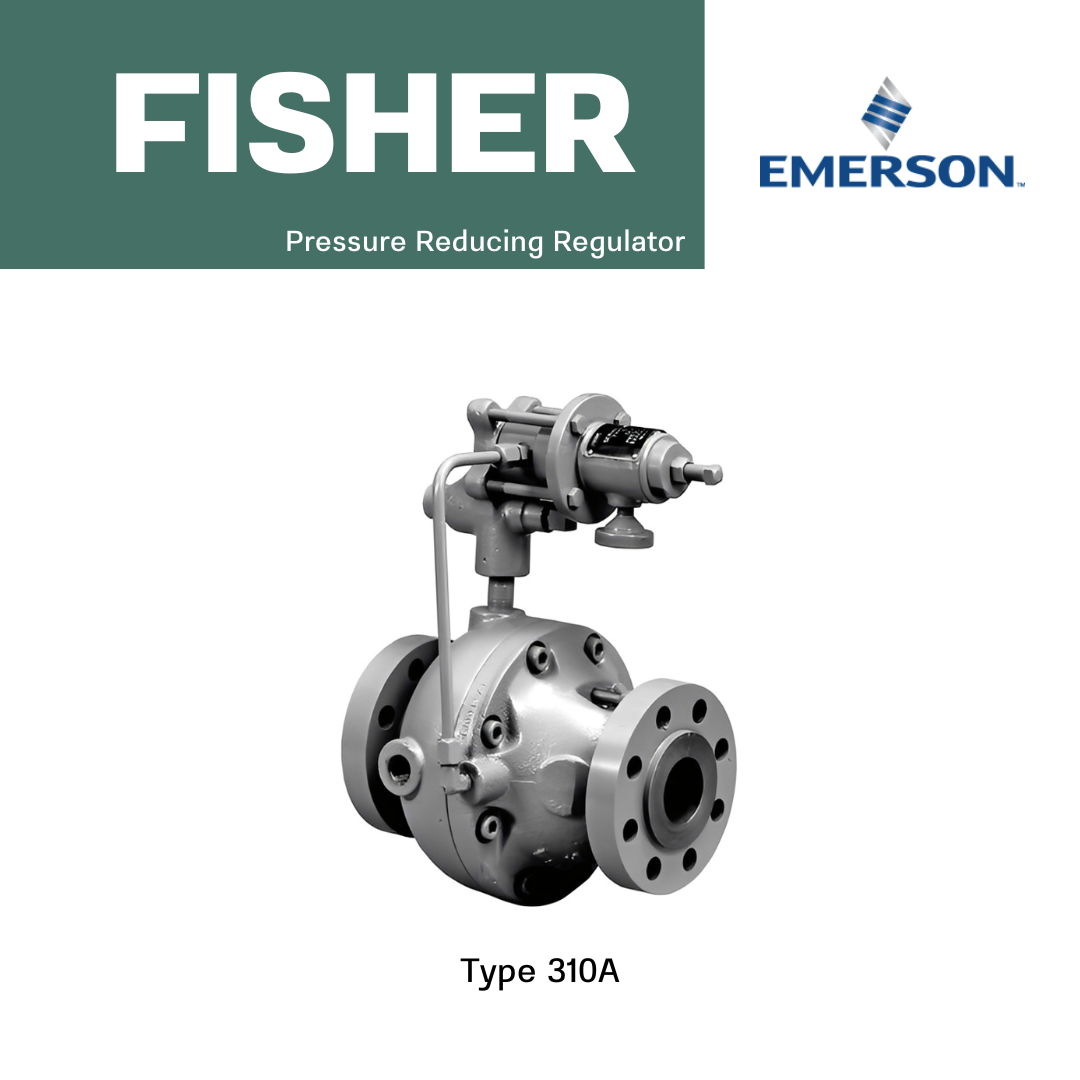

ตัวแทนจำหน่าย Fisher by Emerson Type 310A Pressure Reducing Regulator ในประเทศไทย
The Fisher Type 310A is a high-performance, pilot-operated regulator designed for applications that demand high capacity and precision pressure control. It’s ideal for pressure-reducing systems, wide-open monitoring, or working monitor setups using either one or two Type 32A pilots.
Features and Benefits
Precise Pressure Control
• Equipped with molded pilot diaphragms for a narrow proportional band.
• Outlet pressure is registered directly on the main diaphragm for excellent sensitivity.
Reliable Shutoff Performance
• Features a throttling-sleeve design combined with a PTFE (Teflon) seat for tight shutoff and leak prevention.
High Flow Capacity
• The regulator body includes a straight-through flow path for exceptionally high flow rates and stable performance.
Reduced Relief Valve Sizing
• An optional restricted trim design helps minimize relief valve sizing needs.
• Trim can be upgraded easily to full-capacity if flow requirements increase later.
Fast Response Time
• Engineered for quick responsiveness, making it suitable for demanding applications like gas turbine startup or fuel gas delivery.
Space-Saving Design
• Compact main valve layout includes the actuator spring within the valve, requiring less installation space than other regulators in its class.
Specifications
Body Sizes and End Connection Styles
• NPT: NPS 1
• CL300 RF and CL600 RF: NPS 1, 2, 3, 4, or 4 x 6 / DN 25, 50, 80 100, or 100 x 200
Maximum Inlet Pressure
• 1480 psig / 102 bar
Maximum Outlet (Casing) Pressure
• 1480 psig / 102 bar
Outlet Pressure Ranges
• 10 to 750 psig / 0,69 to 51,7 bar in five ranges
Temperature Capabilities
• -20° to 300°F / -29° to 149°C
