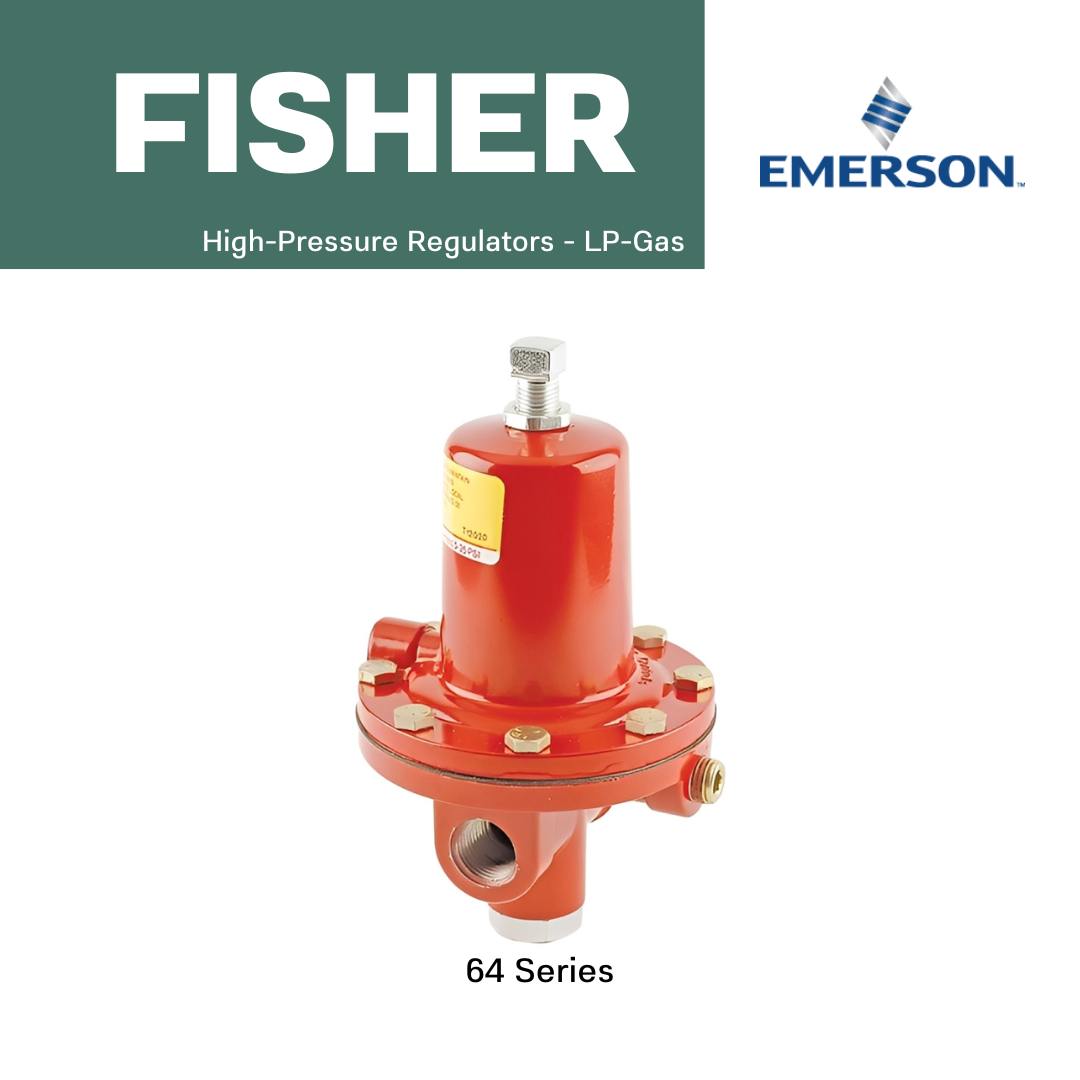

ตัวแทนจำหน่าย Fisher by Emerson 64 Series High-Pressure Regulators - LP-Gas ในประเทศไทย
The Fisher 64 Series regulators are designed to reduce high tank pressures to intermediate levels for further regulation, typically by a second-stage or final-stage regulator. These units are ideal for a wide variety of medium-sized commercial and industrial applications, including crop dryers, tobacco curing systems, and high-pressure burner systems.
Applications & Functionality
• Intermediate Regulation: Commonly used to step down tank pressure to an intermediate pressure, making them suitable as a first-stage regulator when paired with downstream regulation.
• High-Pressure Systems: The Type 64SR can be used directly as a final-stage regulator on high-pressure burner systems or as a first-stage regulator when set at 10 psig / 0.69 bar or lower.
• Versatility: Suitable for use with vapor or liquid propane up to 150°F / 66°C.
Models & Differences
| Model | Relief Valve | Application |
| Type 64 | No | Must be used with a downstream regulator and/or an external relief device. Not recommended for systems operating at 14 in. w.c. |
| Type 64SR | Yes | Suitable for final-stage or first-stage regulation; includes internal overpressure protection. |
Design Features
• Adjustable Outlet Pressure: The 64 Series features a wide range of outlet pressure settings for flexibility across various applications.
• Side Outlet Gauge Port: A 1/4-inch FNPT port is provided on the side of the regulator for pressure gauge installation. This is normally plugged when not in use.
• Outdoor-Ready Design: A cover or auxiliary vent assembly is recommended to protect the vent port in outdoor installations.
• Temperature Rating: Both the 64 and 64SR models are rated from -20°F to 150°F / -29°C to 66°C.
Important Installation Notes
• Type 64 does not contain an internal relief valve and must be installed with additional overpressure protection (per NFPA 58 standards).
• These regulators should not be used in fixed piping systems serving 14 in. w.c. / 35 mbar appliance systems.
• For vent safety, if there is any risk of vented gas ignition at the installation site, a vent line should be routed to a safe discharge location.

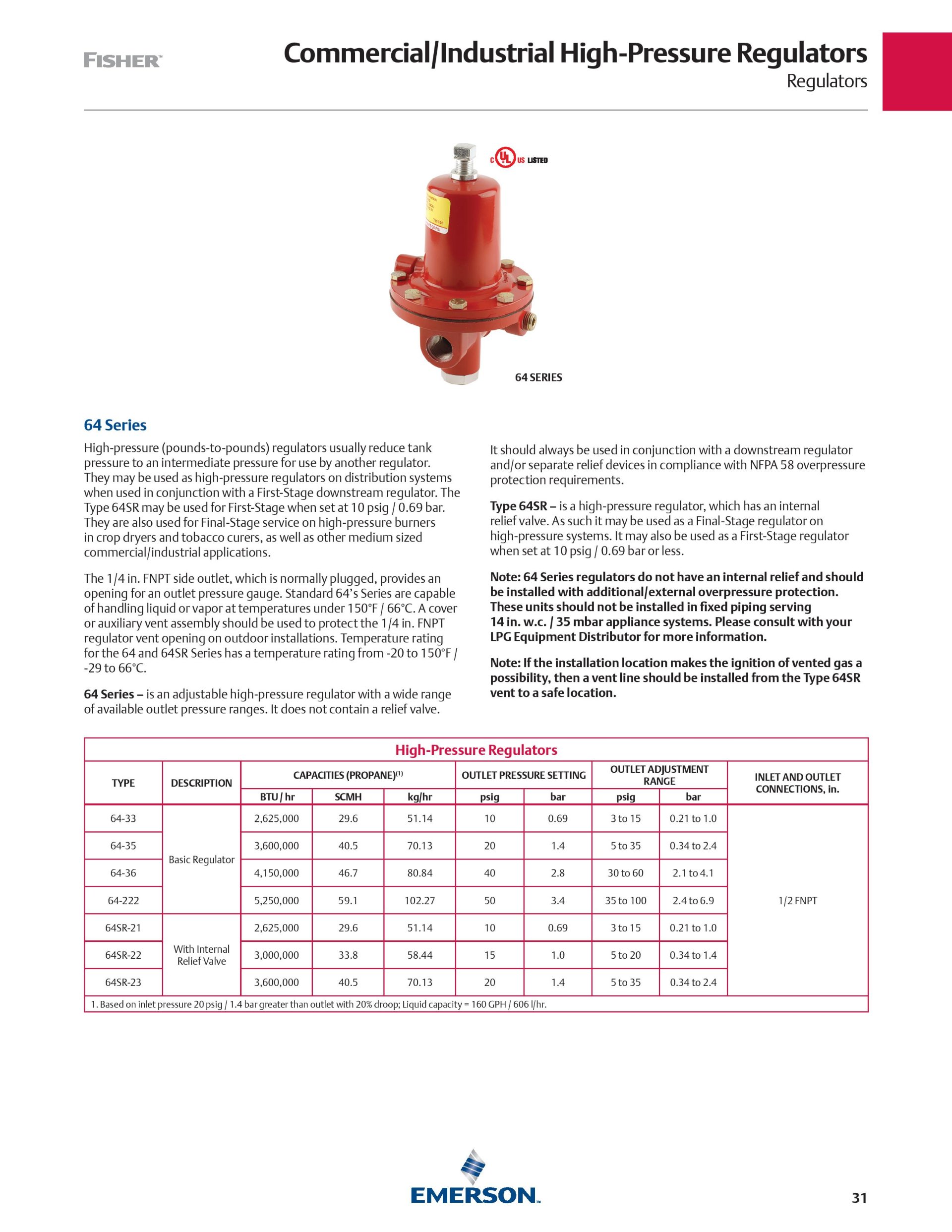

Model Variants and Capacities
Basic Regulator (No Internal Relief Valve)
| Model | Capacity (BTU/hr) | Pressure Setting (psig) | Adjustment Range (psig) |
| 64-33 | 2,625,000 | 10 | 3 to 15 |
| 64-35 | 3,600,000 | 20 | 5 to 35 |
| 64-36 | 4,150,000 | 40 | 30 to 60 |
| 64-222 | 5,250,000 | 50 | 35 to 100 |
• Connection Size: 1/2 in. FNPT
• Suitable for systems with external overpressure protection
With Internal Relief Valve
| Model | Capacity (BTU/hr) | Pressure Setting (psig) | Adjustment Range (psig) |
| 64SR-21 | 2,625,000 | 10 | 3 to 15 |
| 64SR-22 | 3,000,000 | 15 | 5 to 20 |
| 64SR-23 | 3,600,000 | 20 | 5 to 35 |
• Provides built-in overpressure protection
• Ideal for use as final-stage regulators
Performance Notes
Capacities are rated based on:
• Inlet pressure: 20 psig (1.4 bar) greater than outlet
• 20% droop factor
• Liquid capacity equivalent: 160 GPH (606 L/hr)
High performance in demanding environments with accurate regulation and long-lasting operation
Specifications
Body Size and End Connection Style
• 1/2-inch NPT
Gauge Outlet
• 1/4-inch NPT
Maximum Inlet Pressure
• 250 psig / 17,2 bar
Maximum Emergency Outlet Pressure
• 220 psig / 15,2 bar
Outlet Pressure Ranges
• 3 to 100 psig / 207 mbar to 6,9 bar in four ranges
Temperature Capabilities
• -20° to 150°F / -29° to 66°C
Approximate Weight
• 2.25 Pounds / 1 kg
