ตัวแทนจำหน่าย Fisher by Emerson EZH and EZHSO Series Pressure Reducing Regulators ในประเทศไทย

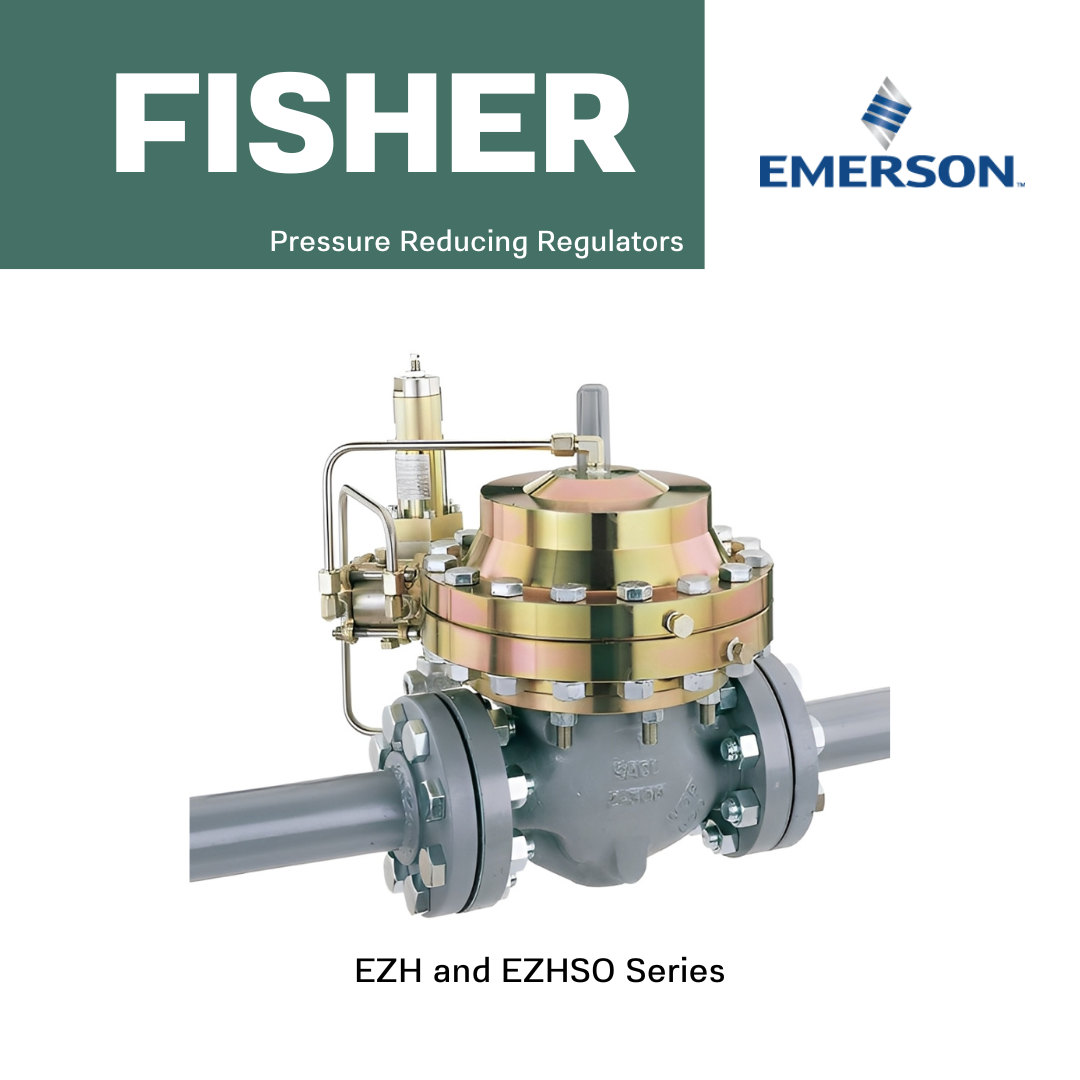

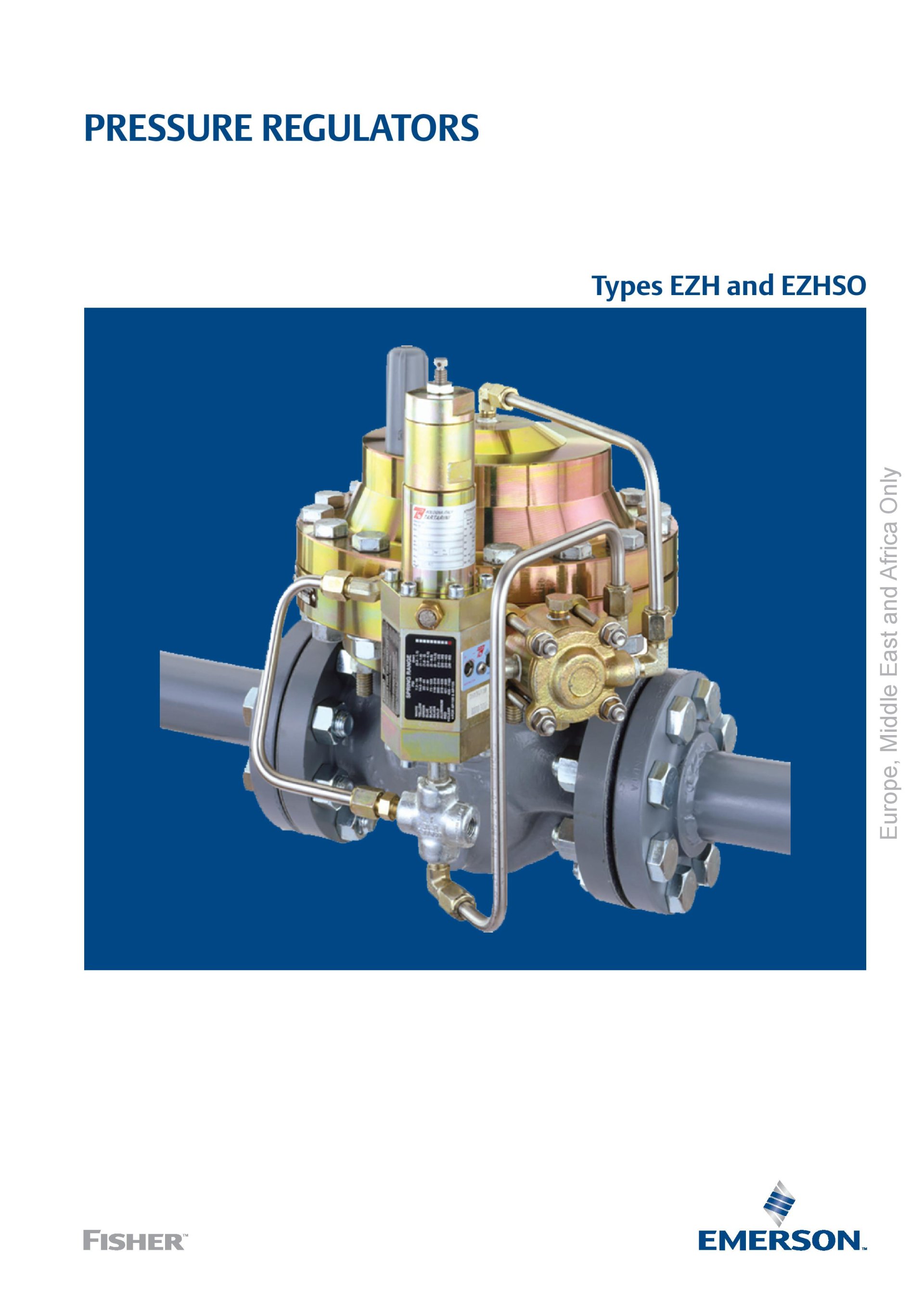

The Fisher Types EZH and EZHSO (Spring-to-Open) regulators are precision-engineered, pilot-operated, pressure-balanced, soft-seated regulators designed for high-pressure natural gas transmission, city gate stations, large-capacity distribution systems, and power plant feed lines. These regulators offer exceptional performance, tight shutoff, and extended service life, even in the most demanding applications.
Advantages
Enhanced Durability in Severe Conditions
• Designed with a metal plug that diverts debris away from the soft seat, these regulators minimize erosion and extend service life. For added chemical resistance, Fluorocarbon (FKM) components are available for use in gas streams containing liquid aromatics.
Wide Range of Flow Control
• Thanks to an oversized diaphragm and advanced piloting system, the EZH and EZHSO deliver superior performance across varying downstream flow demands, providing high turndown ratios for consistent pressure regulation.
Optional Whisper Trim™ Cage for Noise Reduction
• An integrated Whisper Trim™ Cage allows up to 8 dB of noise attenuation while maintaining a compact form factor—ideal for applications where acoustic performance is a priority.
Zero Atmospheric Bleed
• The pilot-operated control system ensures that 100% of vented gas is redirected downstream, eliminating atmospheric emissions and reducing environmental impact and product loss.
Bubble-Tight Shutoff
• Featuring a knife-edged metal plug and soft seat, these regulators provide bubble-tight shutoff, making them ideal for dead-end systems and other applications where leak prevention is critical.
Accurate and Stable Control
• Utilizing the PRX and SA/2 pilot systems, the EZH and EZHSO ensure consistent downstream pressure, even with fluctuating inlet pressures or varying load conditions.
Tool-Free Maintenance and Inspection
• A top-entry design streamlines servicing—no need to remove the regulator from the pipeline. The modular trim assembly can be easily extracted, inspected, and replaced without special tools.
• EZH DN100: Serviceable by a single operator
• EZH DN150 & DN200: Serviceable by two operators
This results in reduced downtime and maintenance costs.
Failure Mode Flexibility
• Available in Spring-to-Close and Spring-to-Open configurations, allowing for customized failure mode response in the event of main diaphragm failure or pilot supply loss. (Refer to failure mode analysis on page 6.)
Specifications
Available Configurations
• Type EZH (Spring-to-Close) and EZHSO (Spring-to-Open): Control range of 14.5 to 1160 psig / 1 to 80 bar
• Type EZHOSX and EZHSO-OSX: Type EZH and EZHSO with integrated Type OS2 slam-shut device
Body Sizes and End Connection Styles
• Body Sizes: NPS 1, 2, 3, 4, 6, 8, 12x6 / DN 25, 50, 80, 100, 150, 200, 300x150
• End Connections: NPT, CL150 RF, CL300 RF, CL600 RF, BWE, SWE
Maximum Allowable Pressures
• Inlet Pressure: 1500 psig / 103 bar
• Outlet (Casing) Pressure: 1500 psig / 103 bar
• Emergency Casing Pressure: 1500 psig / 103 bar
Outlet Pressure Range
• 14.5 to 1160 psig / 1.0 to 80.0 bar
Temperature Capabilities
• Nitrile (NBR) Version: -20 to 180°F / -29 to 82°C
• Fluorocarbon (FKM) Version: 0 to 180°F / -18 to 82°C
• Polyurethane (PU): All body sizes except NPS 3 to 4 / DN 80 to 100: -22 to 180°F / -30 to 82°C, NPS 3 to 4 / DN 80 to 100 Sizes: -4 to 180°F / -20 to 82°C
Hydrogen Configurations
• The EZH was validated for hydrogen service through extensive high-pressurehydrogen testing to analyze shutoff performance and material compatibility. For additional details regarding the evaluation and testing, please refer to “Blending Hydrogen with Natural Gas : Technical Factors to Consider”.
