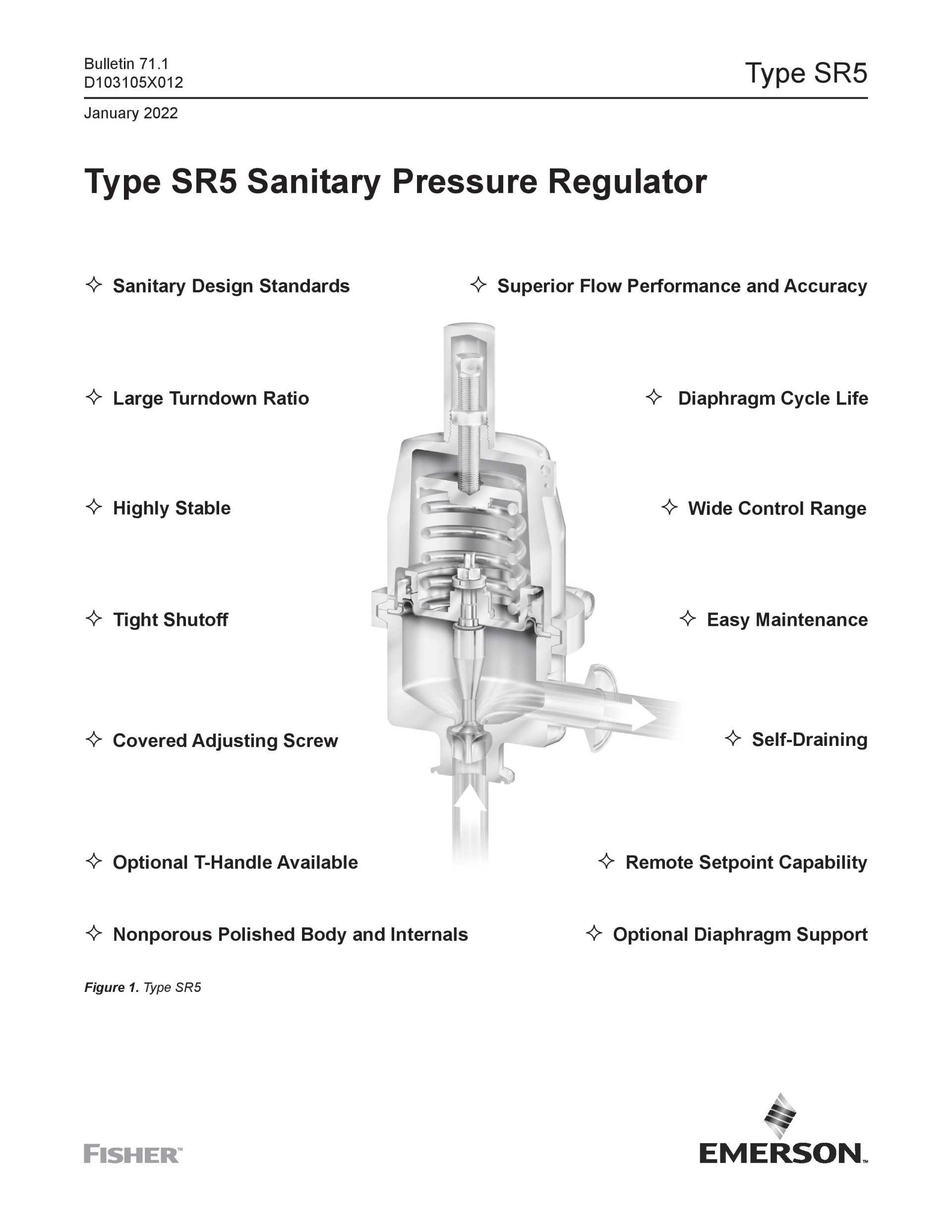

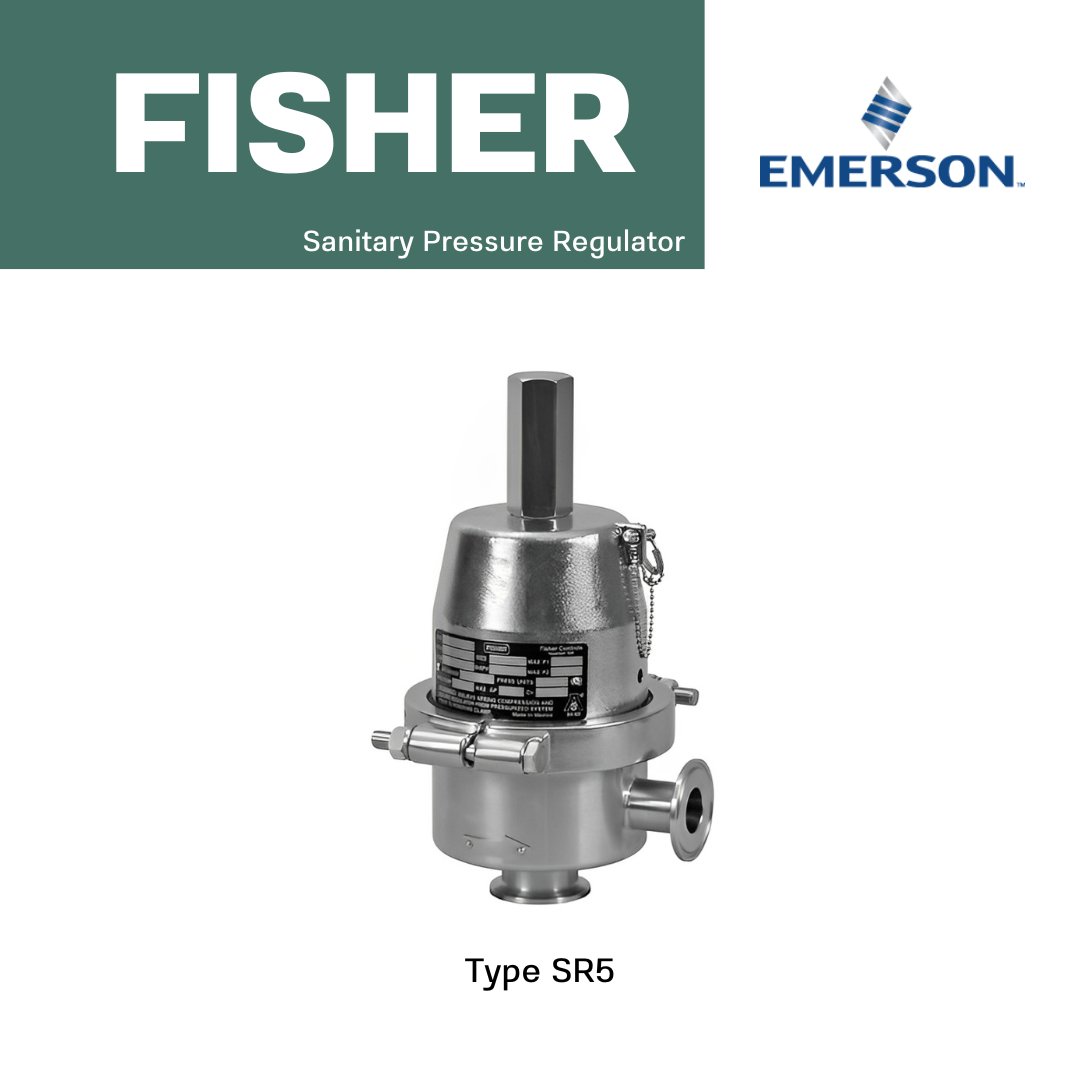

ตัวแทนจำหน่าย Fisher by Emerson Type SR5 Sanitary Pressure Regulator ในประเทศไทย
The Fisher Type SR5 is a compact, high-capacity, direct-operated pressure reducing regulator specifically engineered for applications requiring sanitary design, including use in the pharmaceutical, biotech, and food & beverage industries. The regulator is available in sizes ranging from 1/2-inch to 3-inch (DN 15 to DN 80) and features Tri-Clamp® compatible end connections for hygienic process compatibility. It is suitable for steam, liquid, or gas service.

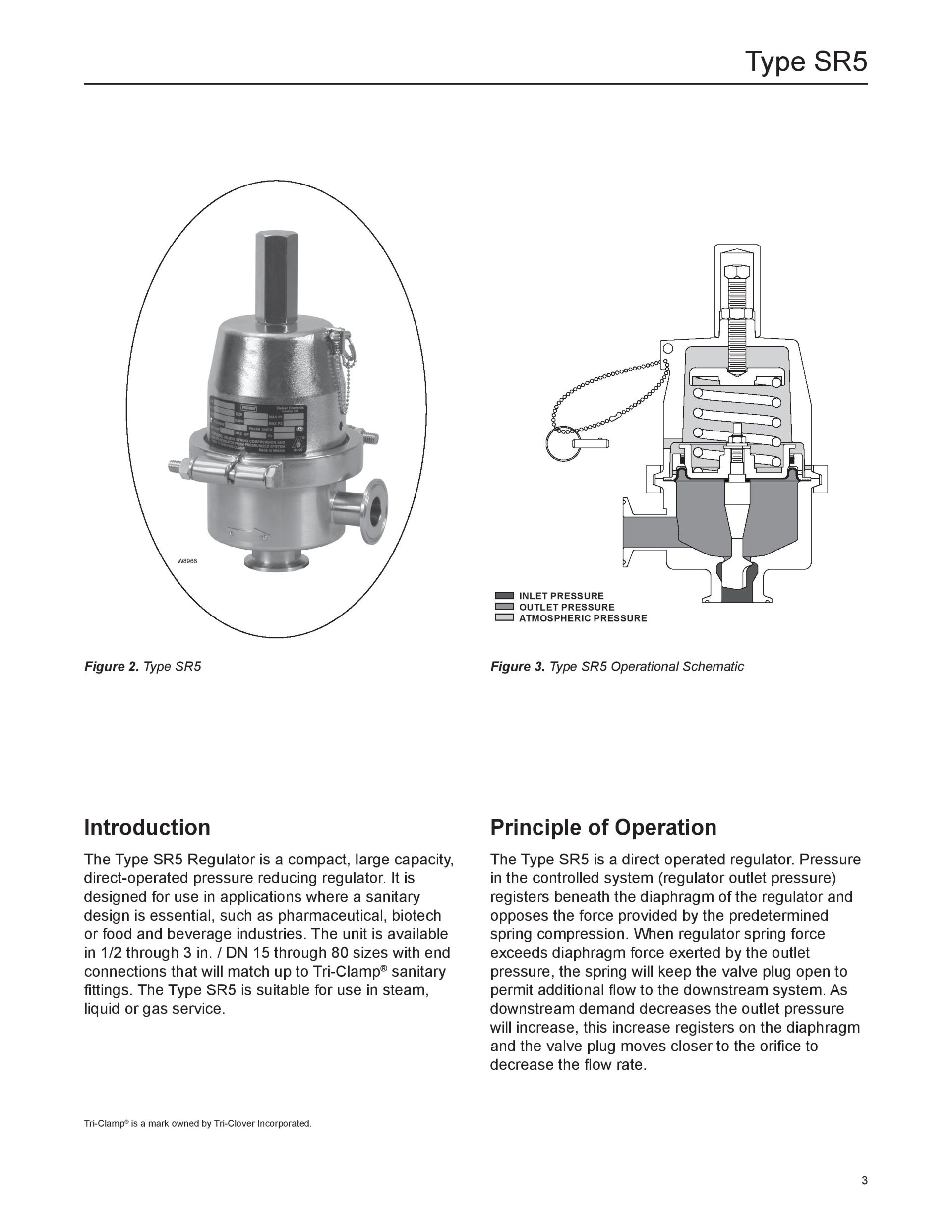

Principle of Operation
The SR5 regulator operates based on the balance between downstream (outlet) pressure and a spring-loaded diaphragm. As downstream pressure increases, it acts on the diaphragm to reduce valve opening, limiting flow. When demand increases and outlet pressure drops, the spring force reopens the valve plug, maintaining consistent downstream pressure.
Features
Sanitary, Nonporous Internal Finish
• Constructed from 316L stainless steel, all internal wetted surfaces are mechanically polished and electropolished to a surface finish of 20 µin (0.5 µm Ra) for high purity applications.
Broad Control Range
• Accommodates applications with setpoints from 2 to 135 psig (0.2 to 9.3 bar), supporting a wide array of process conditions.
Excellent Turndown Ratio
• Capable of precise control across varying flow rates without requiring reduced Cv trims at low flow levels.
Self-Draining Design
• When installed with the spring case in the upright position, the body allows fluids to drain naturally toward the inlet, ensuring system cleanliness.
CIP/SIP Capable (Clean/Steam-In-Place)
• A lock-in-place pin keeps the valve open during CIP or SIP procedures, enabling uninterrupted cleaning operations.
Soft Seat for Tight Shutoff
• Optional soft seat construction ensures reliable shutoff in dead-end systems, helping prevent pressure buildup.
Stable and Accurate Performance
• An upper guide ring enhances stability across the full operating range, minimizing pressure deviations under variable flow conditions.
Superior Flow Capacity
• The SR5 is engineered for high throughput with minimal pressure offset, ensuring stable delivery even at maximum rated capacity.
Easy Access and Maintenance
• Features a metal-to-metal stop to protect diaphragms from over-compression and a Tri-Clamp® body design for quick disassembly and internal access.
Vacuum-Compatible Option
• An optional diaphragm support is available for vacuum service environments, offering additional diaphragm stability.
Extended Diaphragm Life
• The 316L stainless steel diaphragm is built for long-term durability, supporting high-cycle applications.
Covered Adjustment Mechanism
• An electropolished stainless steel screw cover enhances cleanability and aesthetics, ideal for sanitary environments.
Meets Sanitary Standards
• Compliant with ASME BPE and EHEDG (European Hygienic Equipment Design Group) standards for hygienic equipment design.
Optional T-Handle
• A T-handle adjustment option is available for installations requiring frequent manual pressure adjustments.
Remote Setpoint Control
• Optional remote loading configuration enables setpoint adjustment via pressure loading from a remote control source.

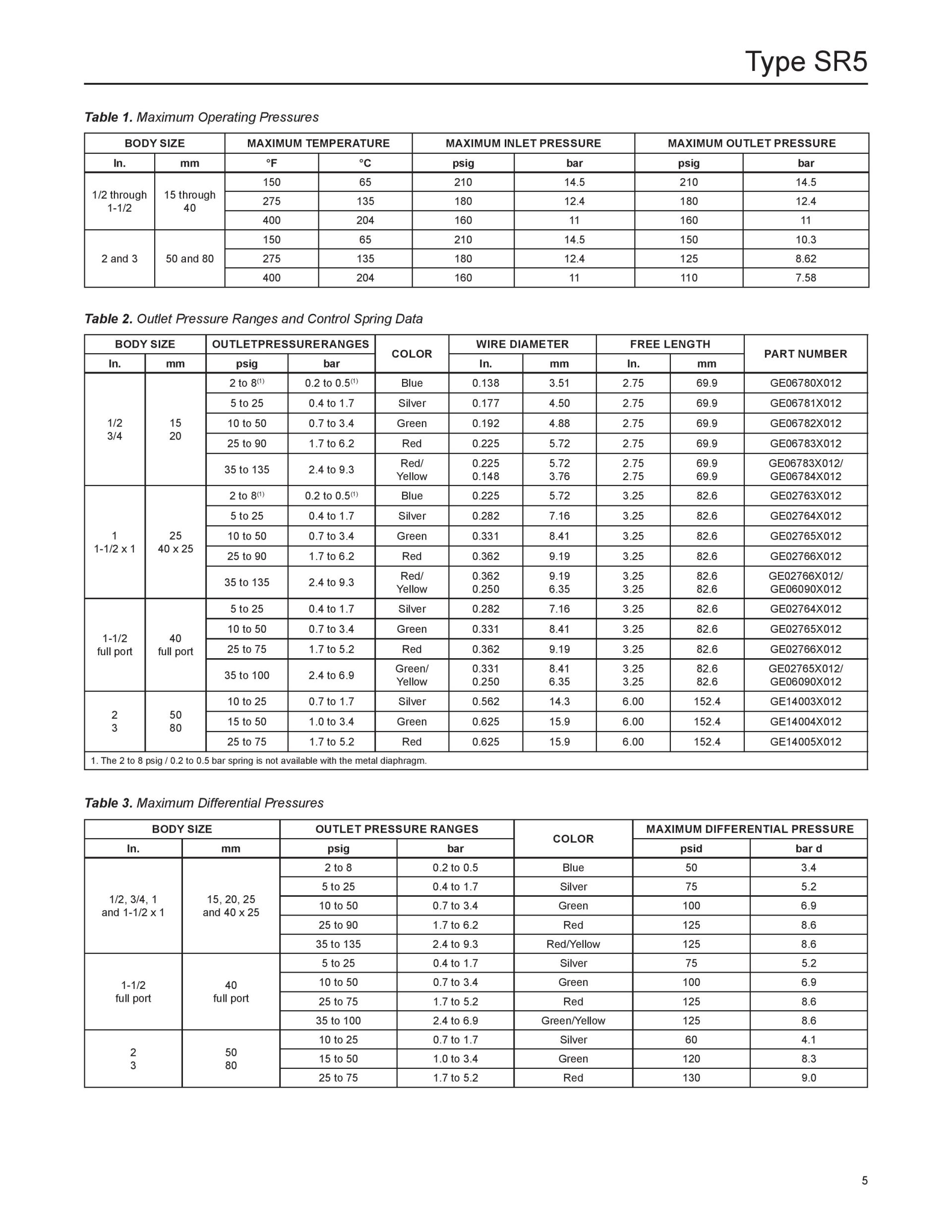

PART NUMBER
• GE06780X012
• GE06781X012
• GE06782X012
• GE06783X012
• GE06783X012
• GE06784X012
• GE02763X012
• GE02764X012
• GE02765X012
• GE02766X012
• GE02766X012
• GE06090X012
• GE02764X012
• GE02765X012
• GE02766X012
• GE02765X012
• GE06090X012
• GE14003X012
• GE14004X012
• GE14005X012

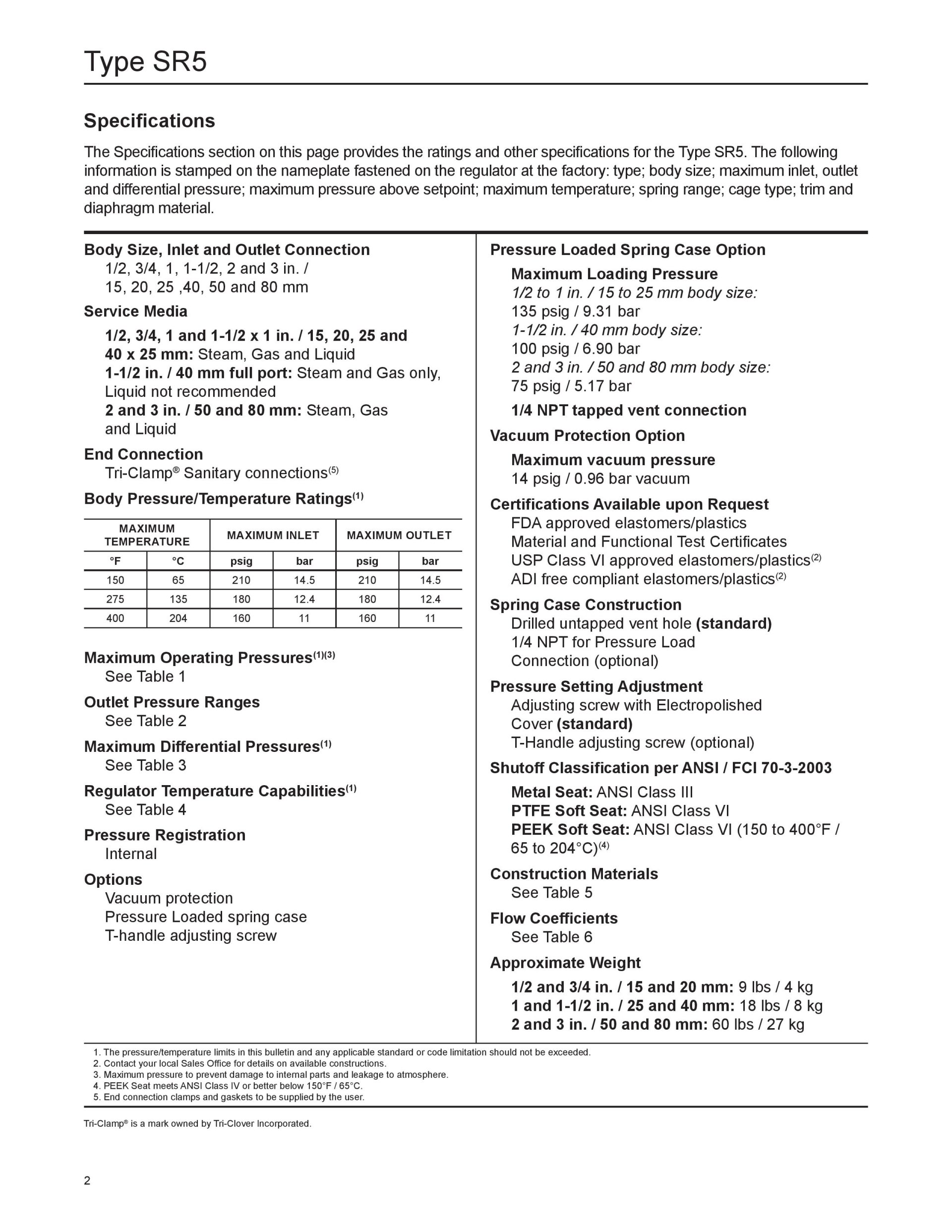

Specifications
Pressure Registration
• Internal

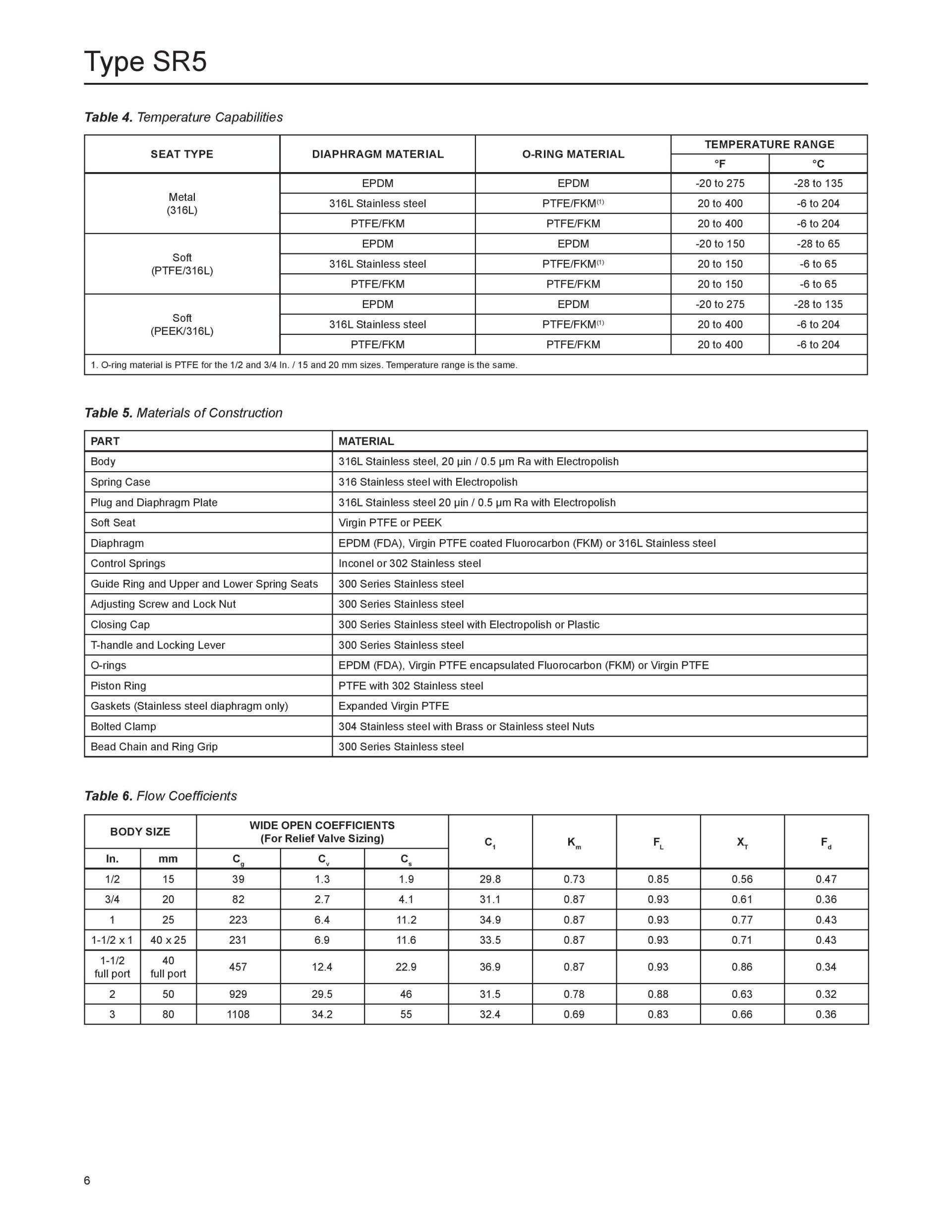

Temperature Capabilities
• -20° to 400°F / -28° to 204°C Depending on seat and diaphragm material
Body Sizes
• NPS 0.5 / 0.75 / 1 / 1.5 / 1.5x1 / 2 / 3 | DN 15 / 20 / 25 / 40 / 40x25 / 50 / 80
End Connections
• Sanitary Tri-Clamp
Maximum Inlet Pressure
• 210 PSIG / 14.5 bar
Maximum Outlet Pressure
• 210 PSIG / 17.2 bar
Spring Ranges
• 2 to 135 PSIG / 0.14 to 9.3 bar
Additional Technical Data
• For additional technical information,?contact?your local?Sales Office?or refer to technical documentation.
