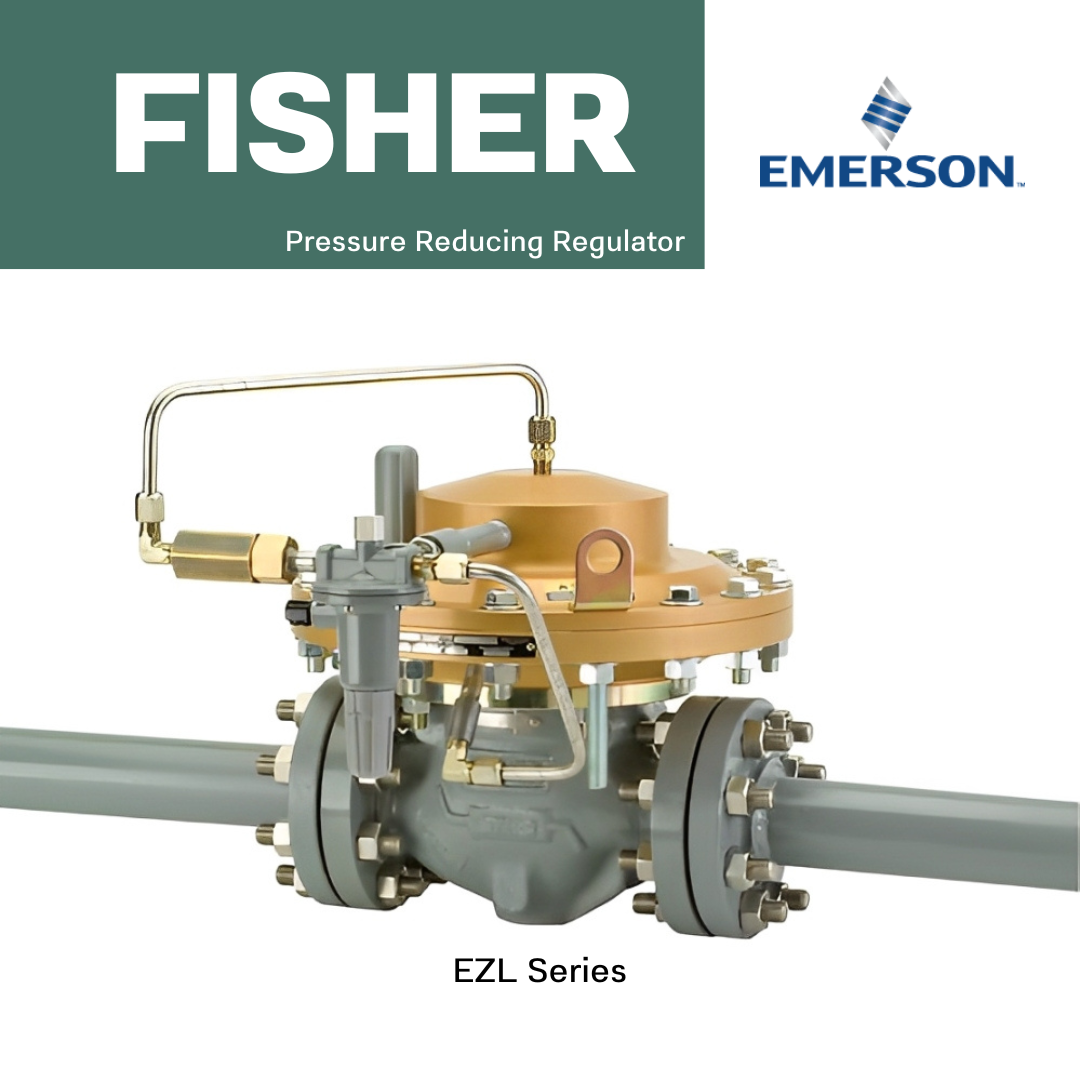

ตัวแทนจำหน่าย Fisher EZL Series | Pressure Reducing Regulator for Low Pressure Applications ในประเทศไทย
The Fisher EZL Series regulators are high-performance, pilot-operated, pressure-balanced, soft-seated regulators engineered for precision and durability. Designed specifically for natural gas distribution systems—including district regulator stations and commercial or industrial meter sets—they offer smooth, low-differential operation, tight shutoff, and extended service life.

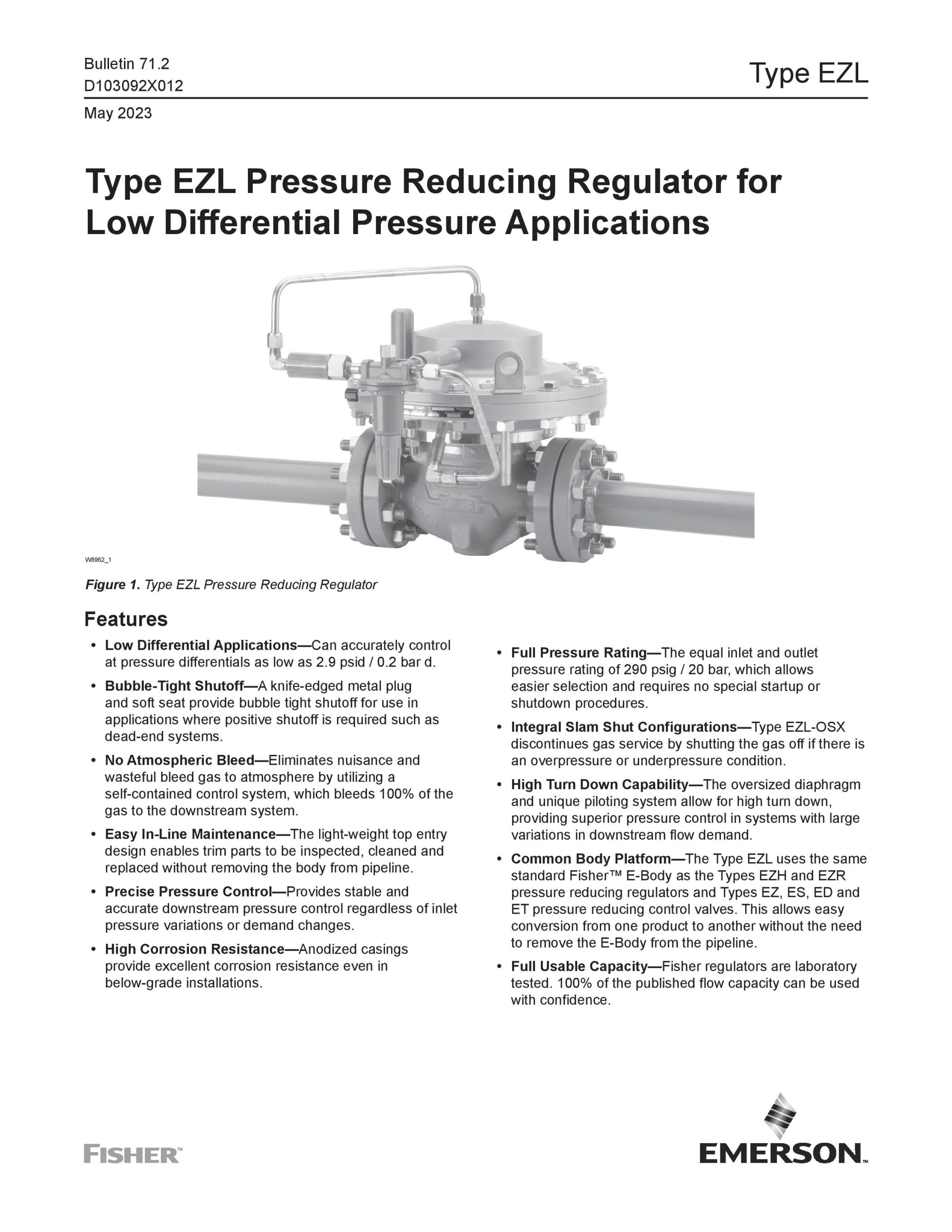

Features
Ideal for Low Differential Pressure Applications
• Accurately controls downstream pressure at differentials as low as 2.9 psid (0.2 bar d), making it well-suited for low-pressure systems.
Bubble-Tight Shutoff
• A combination of a knife-edged metal plug and a soft seat ensures leak-free shutoff, making the EZL Series ideal for applications requiring positive shutoff, including dead-end systems.
Zero Atmospheric Bleed
• The pilot-operated design eliminates continuous gas bleeding to the atmosphere—100% of bleed gas is redirected to the downstream system, reducing emissions and operational waste.
Simplified In-Line Maintenance
• A top-entry design allows for quick inspection, cleaning, and replacement of trim components without removing the regulator from the pipeline.
Stable and Precise Pressure Control
• Delivers accurate downstream pressure control even with fluctuations in inlet pressure or load changes.
Travel Indicator
• Enables easy in-service diagnostics and troubleshooting by visually indicating valve plug movement.
Full Pressure Rating Capability
• Designed with equal inlet and outlet pressure ratings of 290 psig (20 bar), allowing for easier regulator selection and eliminating the need for special startup or shutdown procedures.

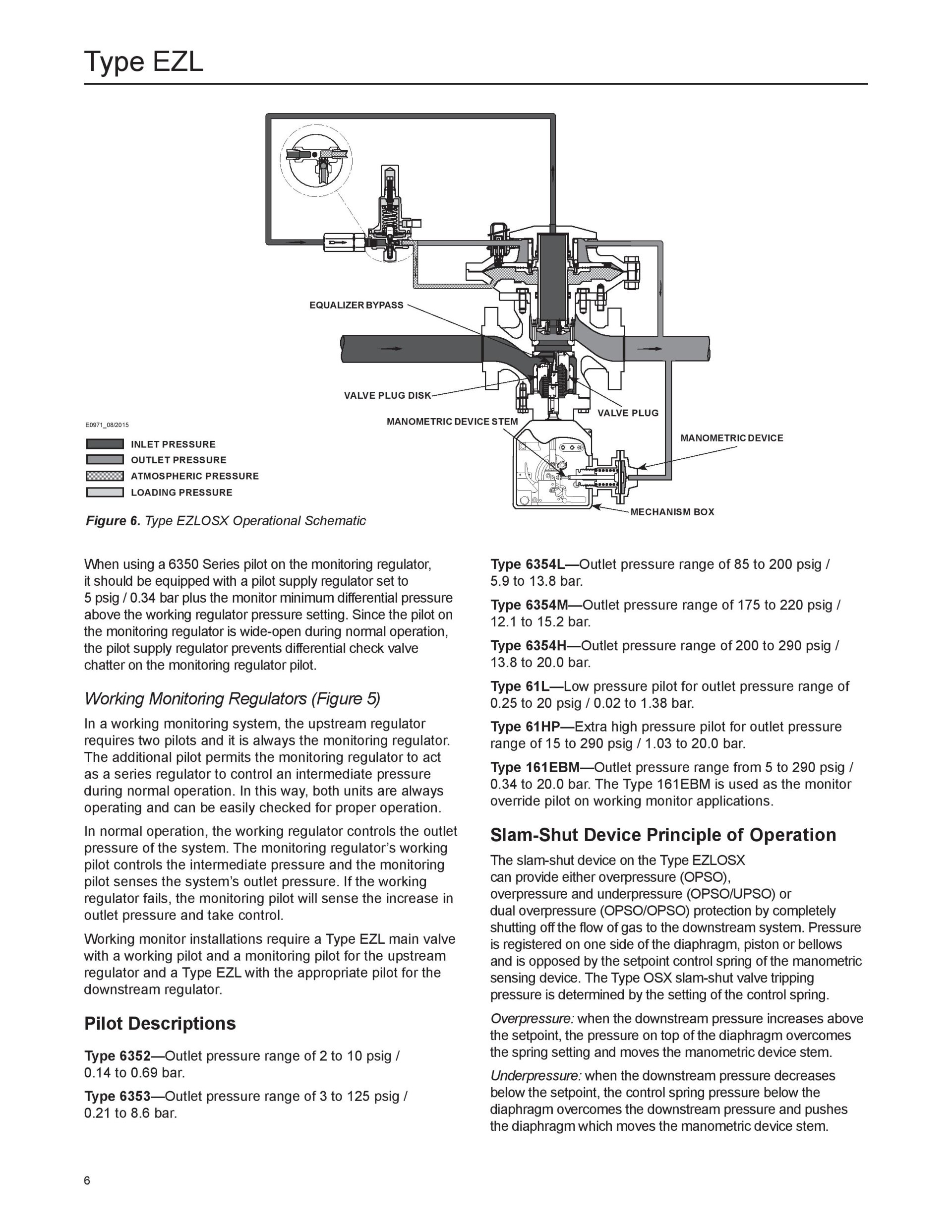

Integrated Slam-Shut Option
• The Type EZLOSX configuration includes a slam-shut mechanism that automatically interrupts gas flow in the event of an overpressure or underpressure condition, enhancing safety in critical systems.

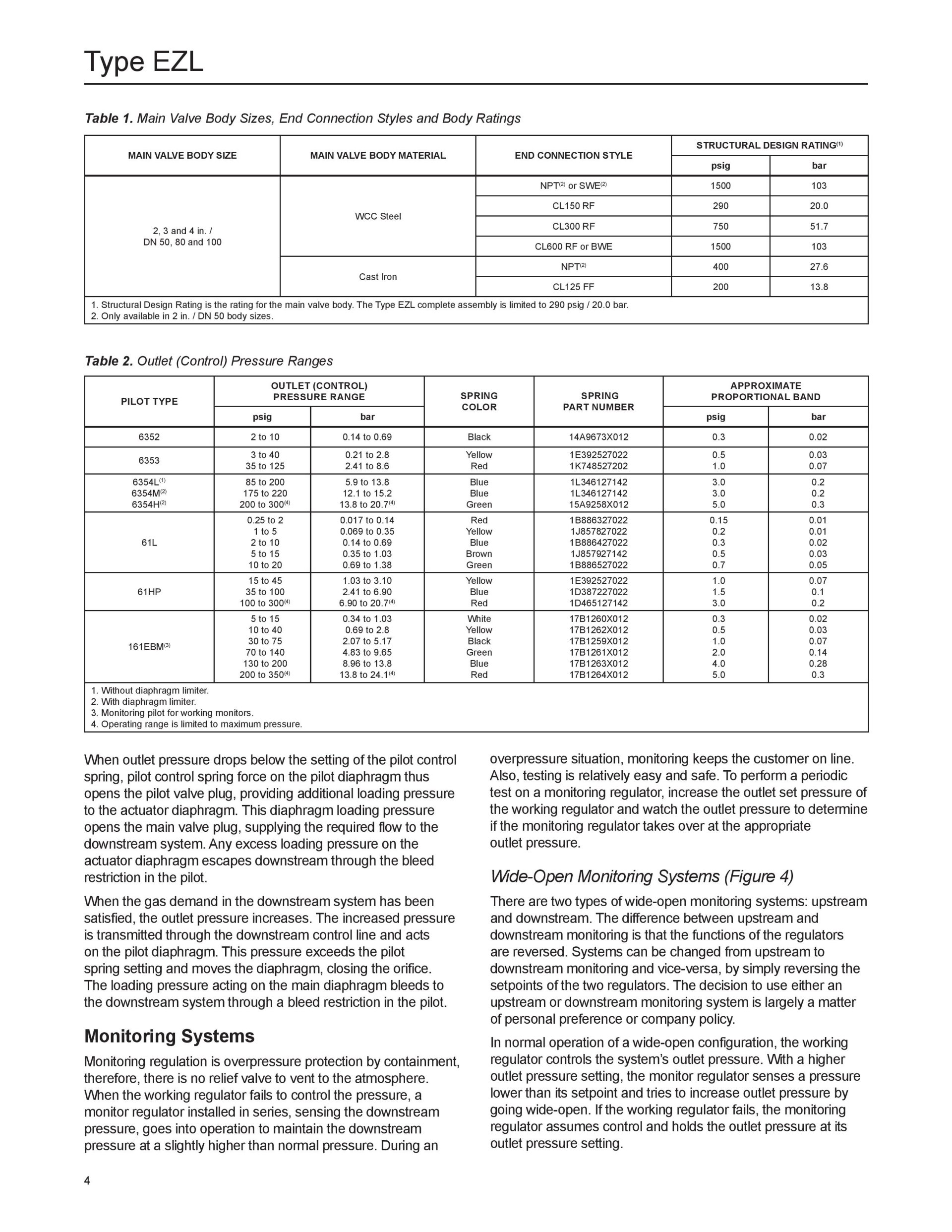

PART NUMBER
• 14A9673X012
• 1E392527022
• 1K748527202
• 1L346127142
• 1L346127142
• 15A9258X012
• 1B886327022
• 1J857827022
• 1B886427022
• 1J857927142
• 1B886527022
• 1E392527022
• 1D387227022
• 1D465127142
• 17B1260X012
• 17B1262X012
• 17B1259X012
• 17B1261X012
• 17B1263X012
• 17B1264X012

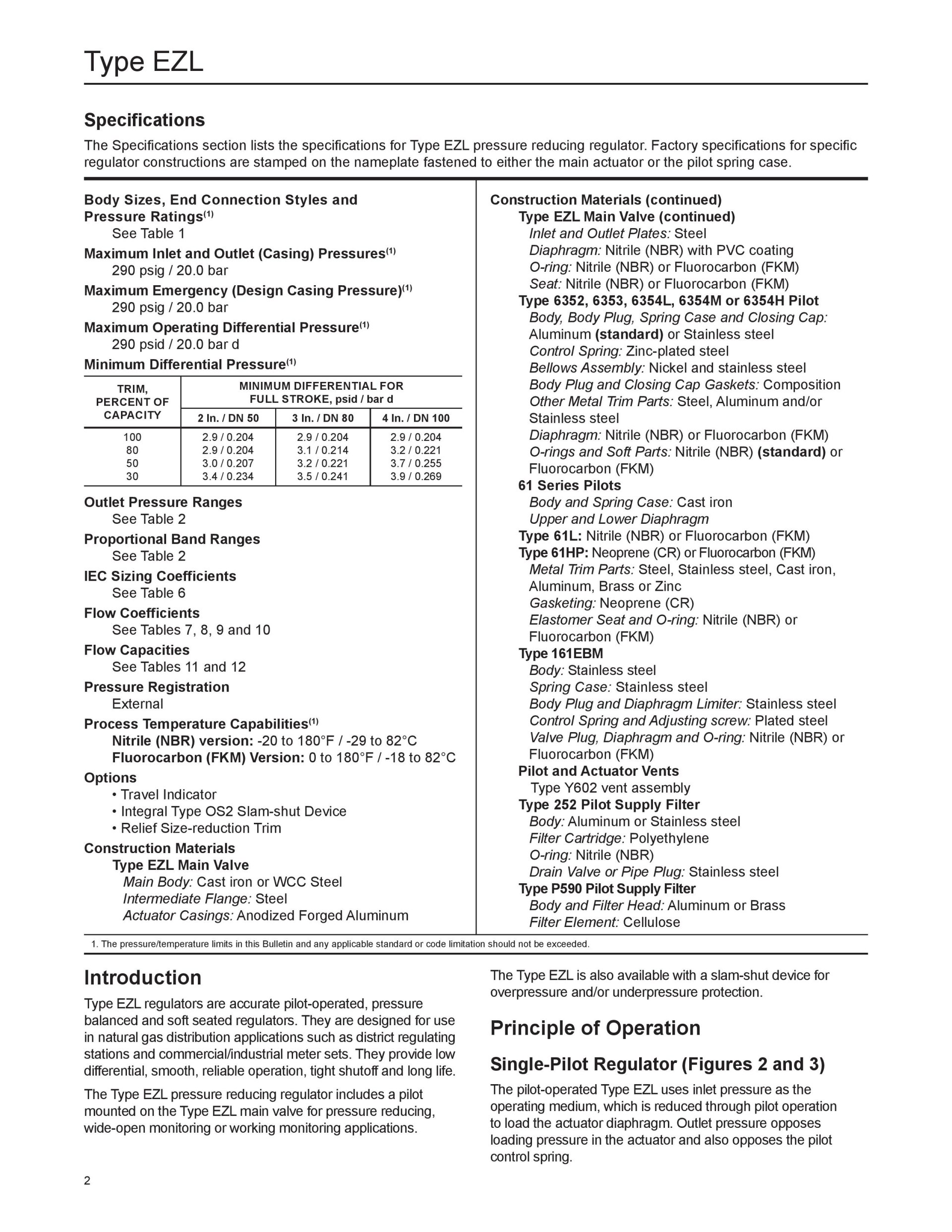

Specifications
Available Configurations
• Type EZL: Control range of 7 inches w.c. to 300 psig / 17 mbar to 20,7 bar
• Type EZLOSX: Type EZL with an integrated Type OS2 slam-shut device
Body Sizes and End Connection Styles
• Body Sizes: NPS 2, 3, or 4 / DN 50, 80, or 100
• Main Valve Body Material: WCC or Cast iron
• End Connection Styles: NPT, SWE, BWE, CL150 RF, CL250 RF, CL300 RF, CL600 RF, or CL125 FF
Maximum Allowable Pressures
• Inlet Pressure: 290 psig / 20,0 bar
• Outlet (Casing) Pressure: 290 psig / 20,0 bar
• Emergency Casing Pressure: 290 psig / 20,0 bar
• Operating Differential Pressure: 290 psid / 20,0 bar d
Outlet Pressure Range
• 0.25 to 350 psig / 0,02 to 24,1 bar
Temperature Capabilities
• -20° to 180°F / -29° to 82°C
