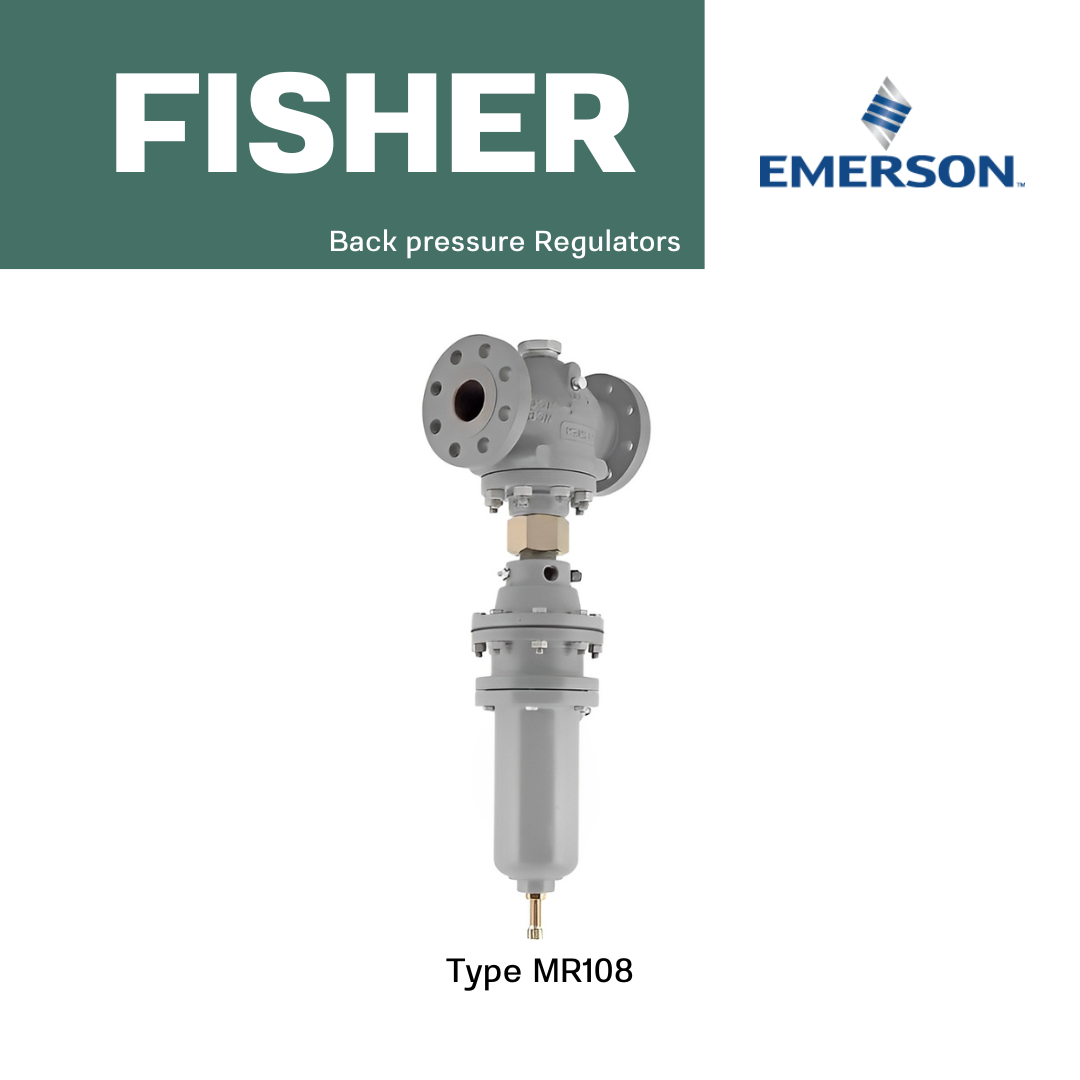

ตัวแทนจำหน่าย Fisher Type MR108 Back pressure Regulators ในประเทศไทย

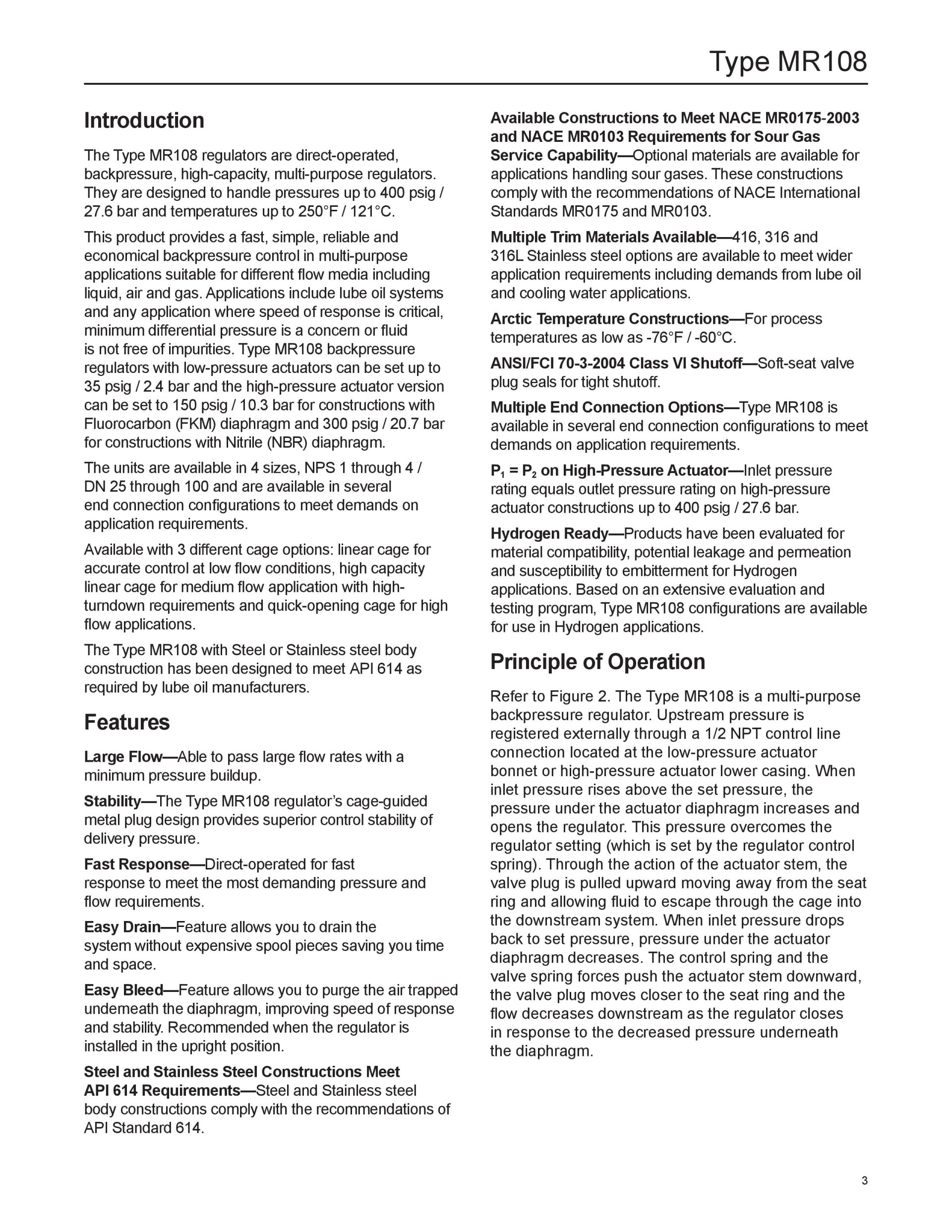

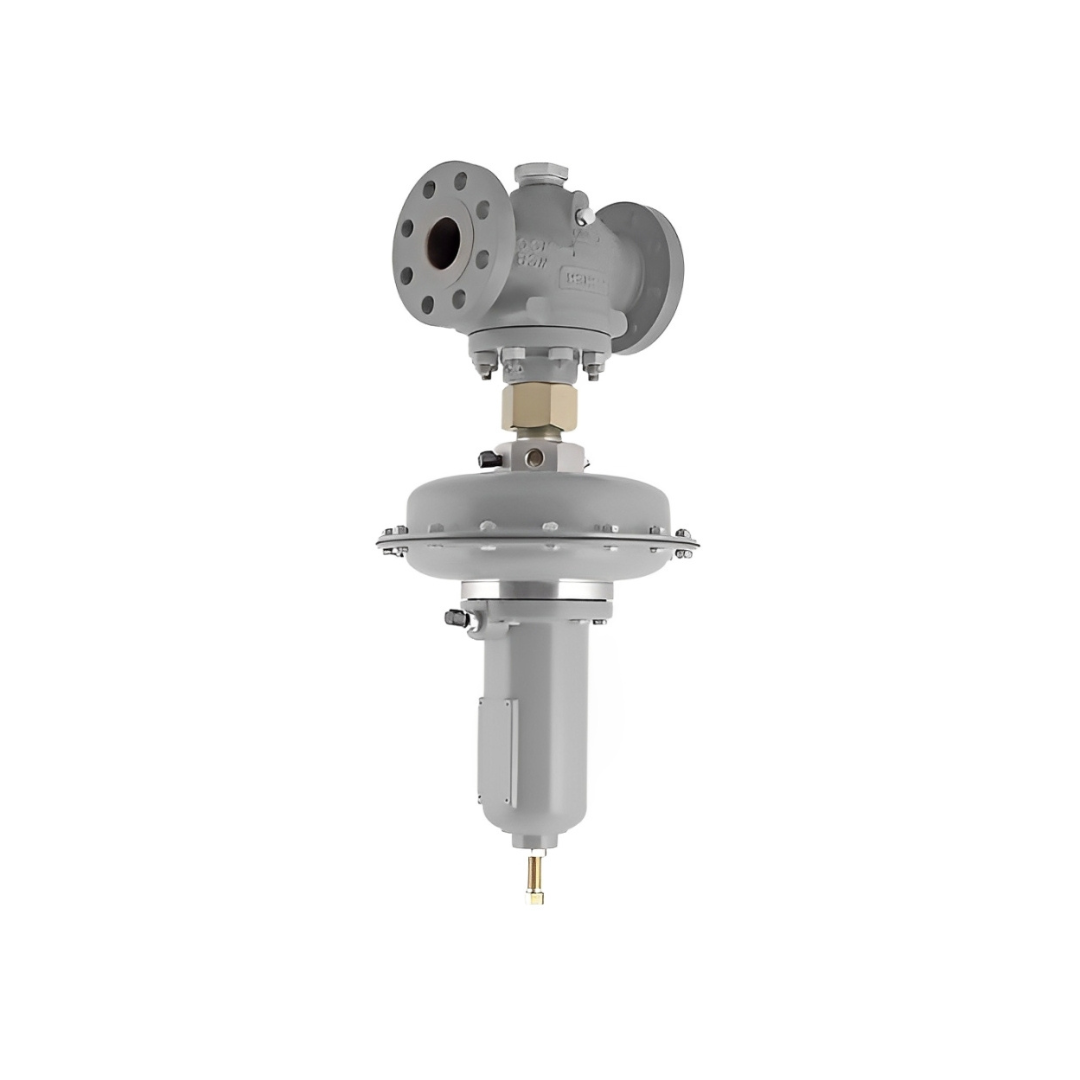

The Fisher Type MR108 is a direct-operated, high-capacity back pressure regulator designed for multi-purpose use across a wide range of demanding applications. Capable of handling pressures up to 400 psig (27.6 bar) and temperatures up to 250°F (121°C), the MR108 offers dependable, cost-effective control of various flow media—including liquids, air, and gases.

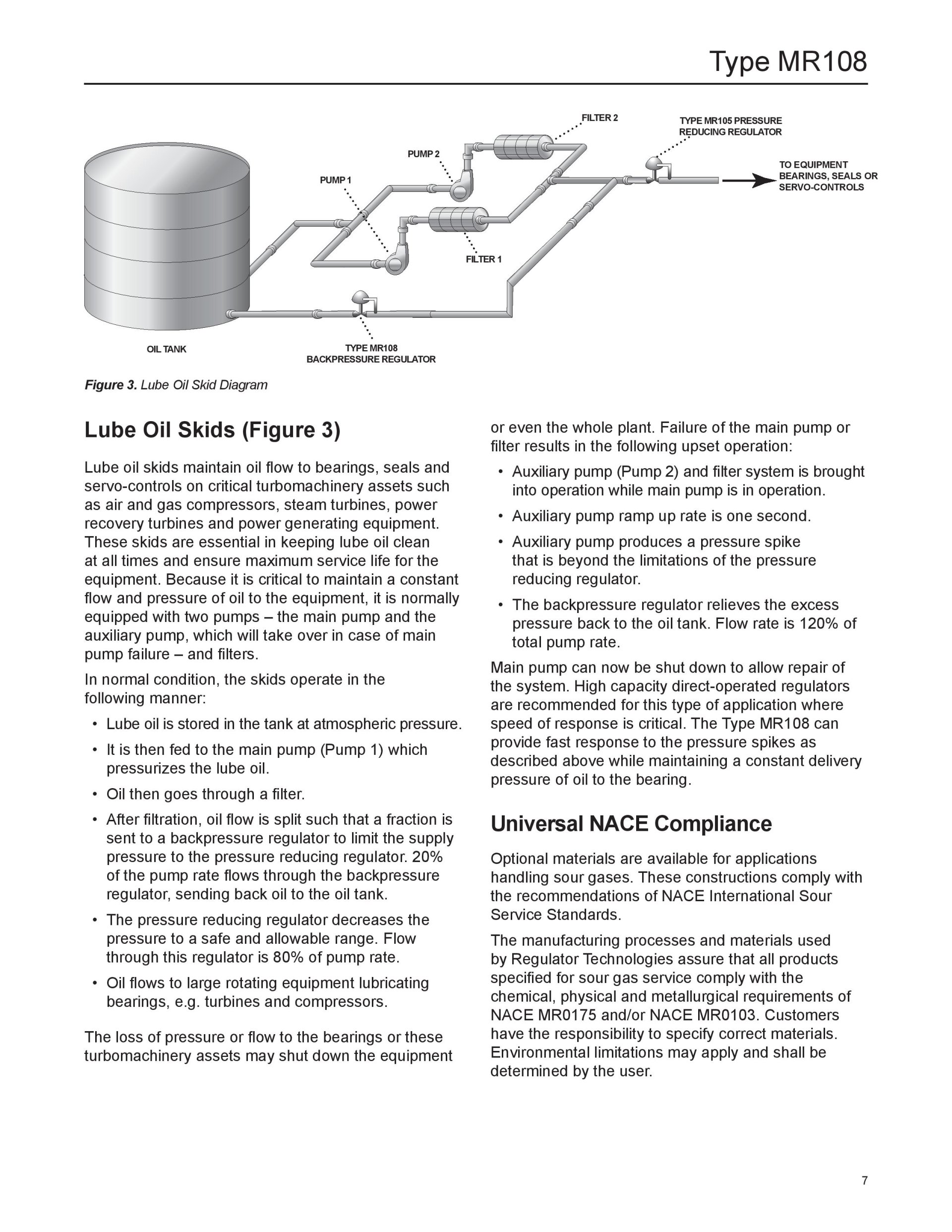

It is especially well-suited for systems where fast response time, low differential pressure, or the presence of impurities in the fluid are critical factors. Common applications include lube oil systems and other industrial processes requiring precise back pressure regulation under challenging conditions.

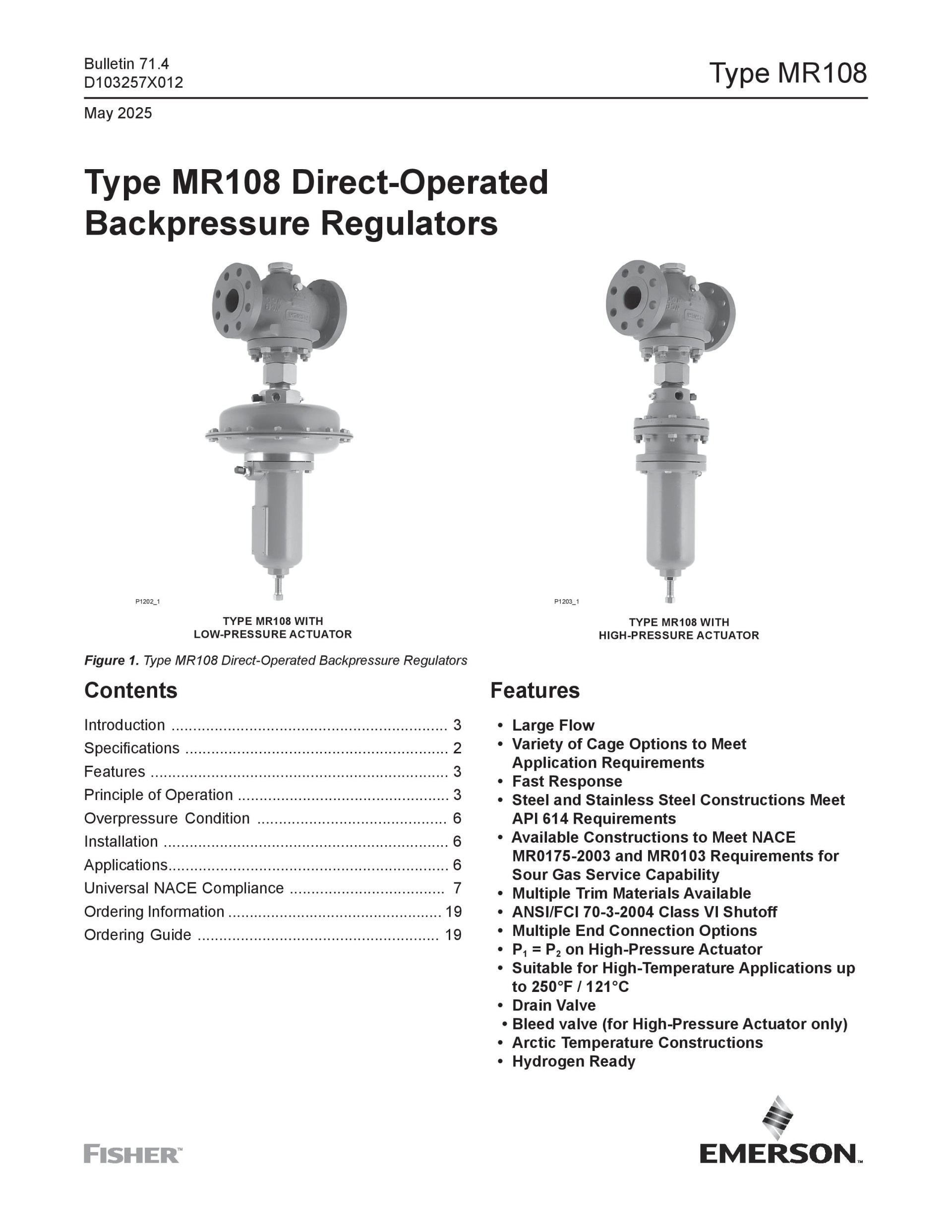

Features
• Steel and Stainless Steel Constructions Meet API 614 Requirements
• Available Constructions to Meet NACE MR0175-2003 and NACE MR0103 Requirements for • Sour Gas Service Capability
• P1 = P2 on High-Pressure Actuator
• Drain Valve
• Pressure-Loaded Actuator
• Bleed valve (for High-Pressure Actuator only)
• Travel Indicator
PART NUMBER
• GE42909X012
• GE42910X012
• GE42911X012
• GE43002X012
• GE42906X012
• GE42907X012
• GE42909X012
• GE42910X012
• GE43002X012

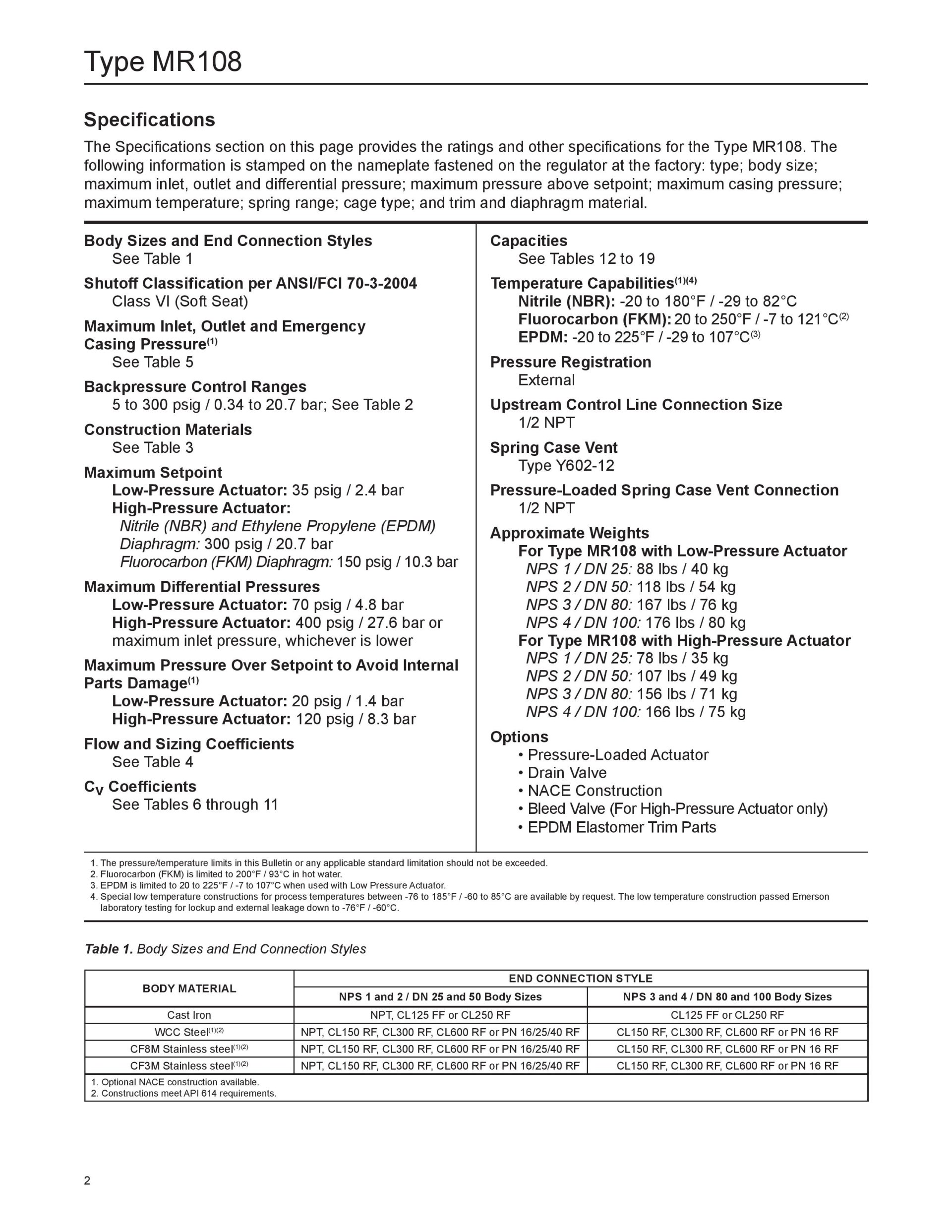

Specifications
The Specifications section on this page provides the ratings and other specifications for the Type MR108. The following information is stamped on the nameplate fastened on the regulator at the factory: type; body size; maximum inlet, outlet and differential pressure; maximum pressure above setpoint; maximum casing pressure; maximum temperature; spring range; cage type; and trim and diaphragm material.
Pressure Registration
• External
Temperature Capabilities
• Nitrile (NBR):?-20 to 180°F / -29 to 82°C | Fluorocarbon (FKM): 20 to 250°F / -7 to 121°C; limited to 200°F / 93°C in hot water | Ethylene Propylene (EPDM): -20 to 225°F / -29 to 107°C
Body Sizes
• NPS 1 / 2 / 3 / 4 | DN 25 / 50 / 80 / 100
End Connections
• NPT / CL125FF / CL150RF / CL250RF / CL300RF / CL600RF / PN 16/25/40

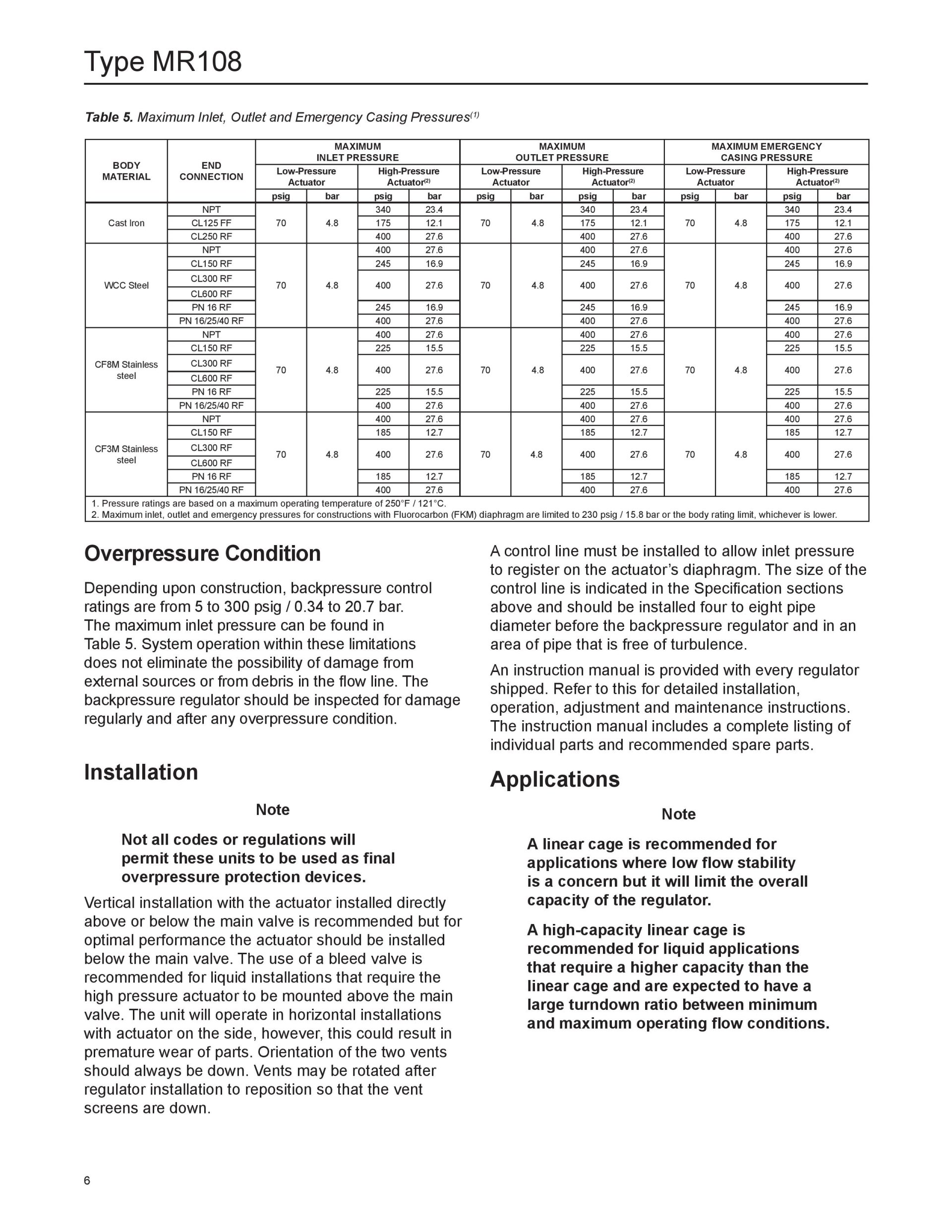

Maximum Inlet Pressure
• 400 psig / 27.6 bar | Or body rating limit, whichever is lower
Maximum Outlet Pressure
• 400 psig / 27.6 bar | Or body rating limit, whichever is lower

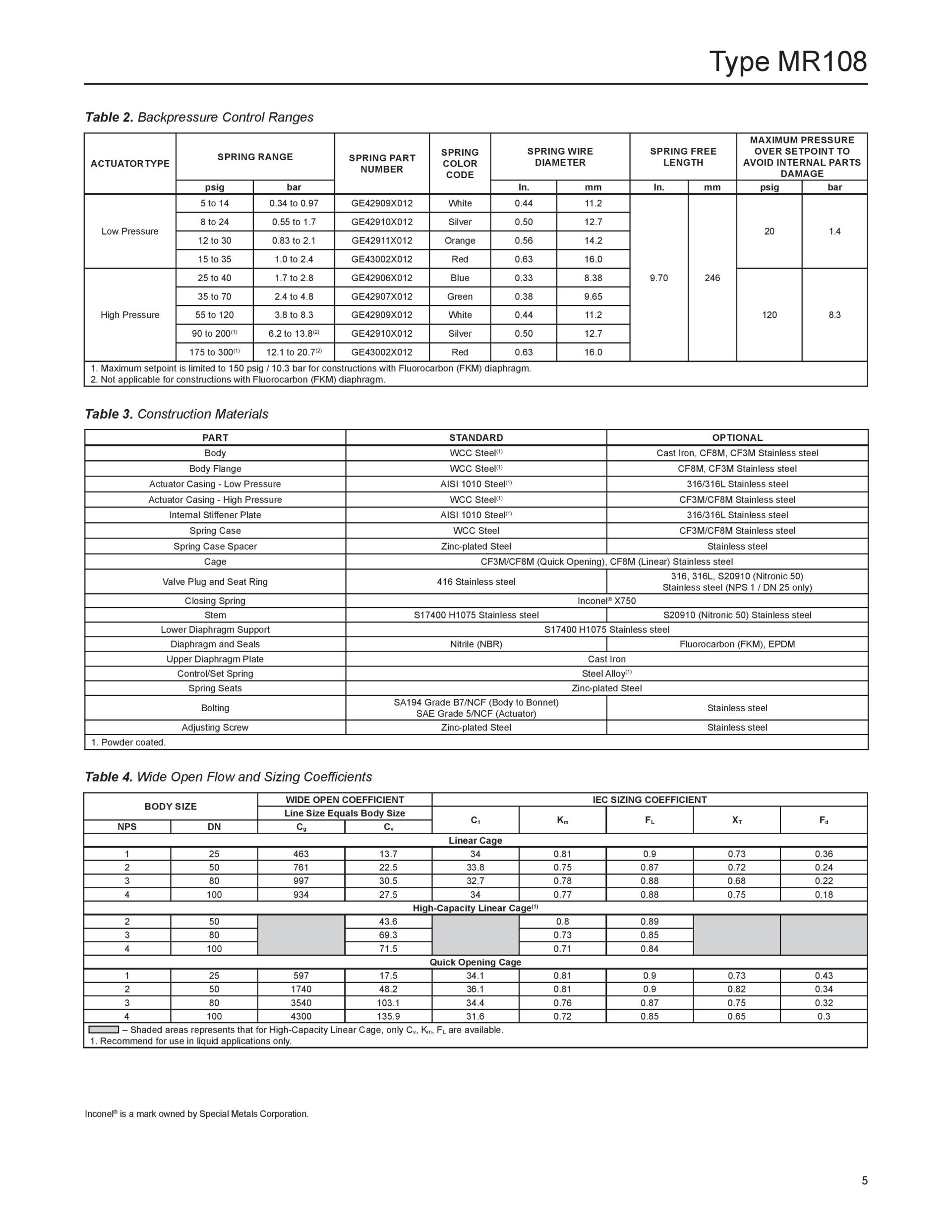

Spring Ranges
• 5 to 300 psig / 0.4 to 20.7 bar
Additional Technical Data
• For additional technical information,?contact?your local?Sales Office?or refer to technical documentation.
