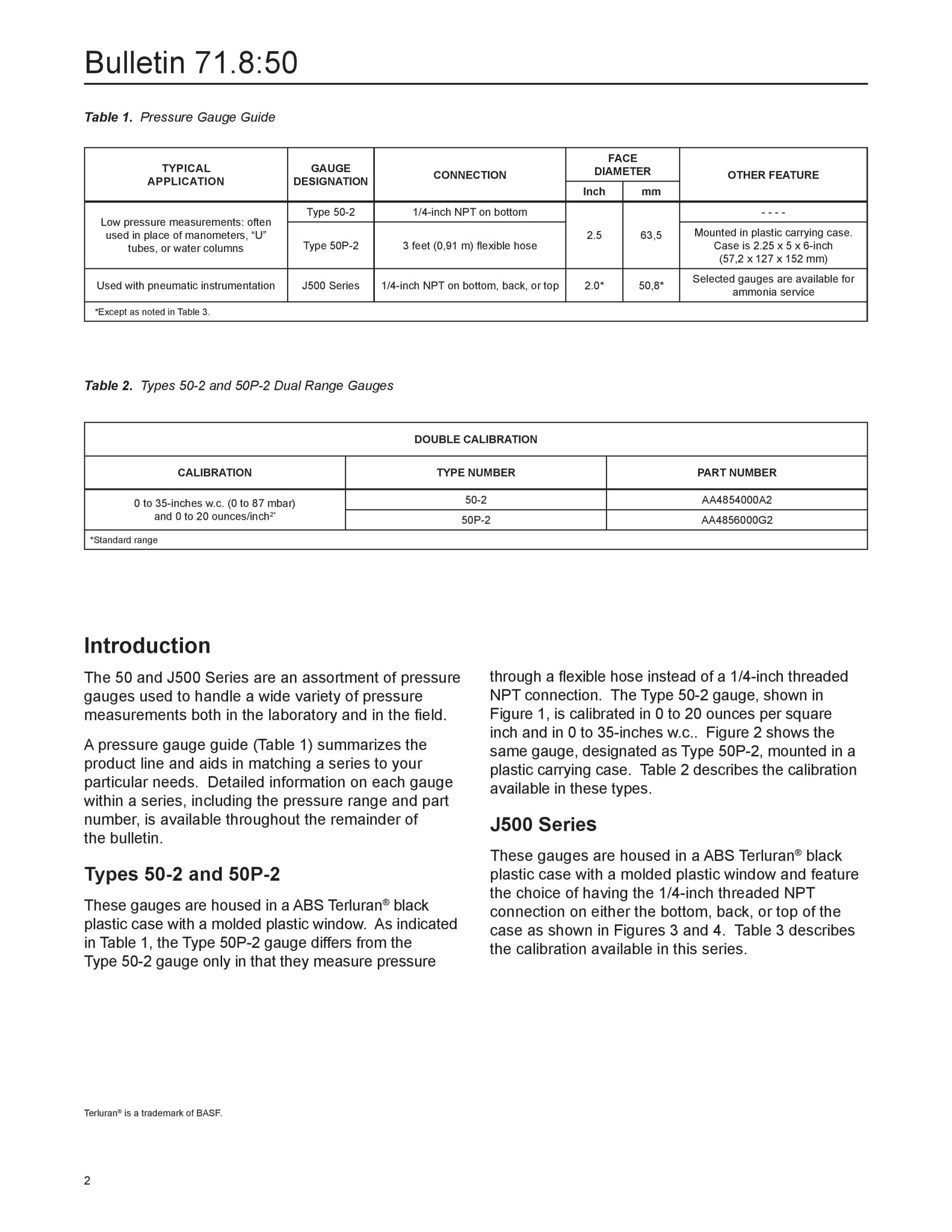

ชุดเกจวัดแรงดัน Fisher Pressure Gauge ซีรีส์ 50 และ J500 เป็นกลุ่มผลิตภัณฑ์ที่ออกแบบมาเพื่อรองรับการวัดแรงดันในรูปแบบต่างๆ ทั้งในห้องปฏิบัติการและการใช้งานภาคสนาม เกจในแต่ละซีรีส์ครอบคลุมช่วงแรงดันหลากหลาย พร้อมรายละเอียดเชิงเทคนิค เช่น หมายเลขชิ้นส่วน และขอบเขตการสอบเทียบ ซึ่งสามารถดูได้ในส่วนอื่นๆ ของเอกสาร
รุ่น 50-2 และ 50P-2
เกจทั้งสองรุ่นนี้บรรจุอยู่ในตัวเรือนพลาสติก ABS Terluran® สีดำ แข็งแรง ทนทาน พร้อมหน้าต่างพลาสติกใสแบบหล่อขึ้นรูปเพื่อความทนทานในการใช้งาน
ความแตกต่างระหว่างรุ่น 50-2 และ 50P-2 อยู่ที่ช่องทางการรับแรงดัน:
• รุ่น 50-2 ใช้การเชื่อมต่อแบบเกลียว 1/4 นิ้ว NPT

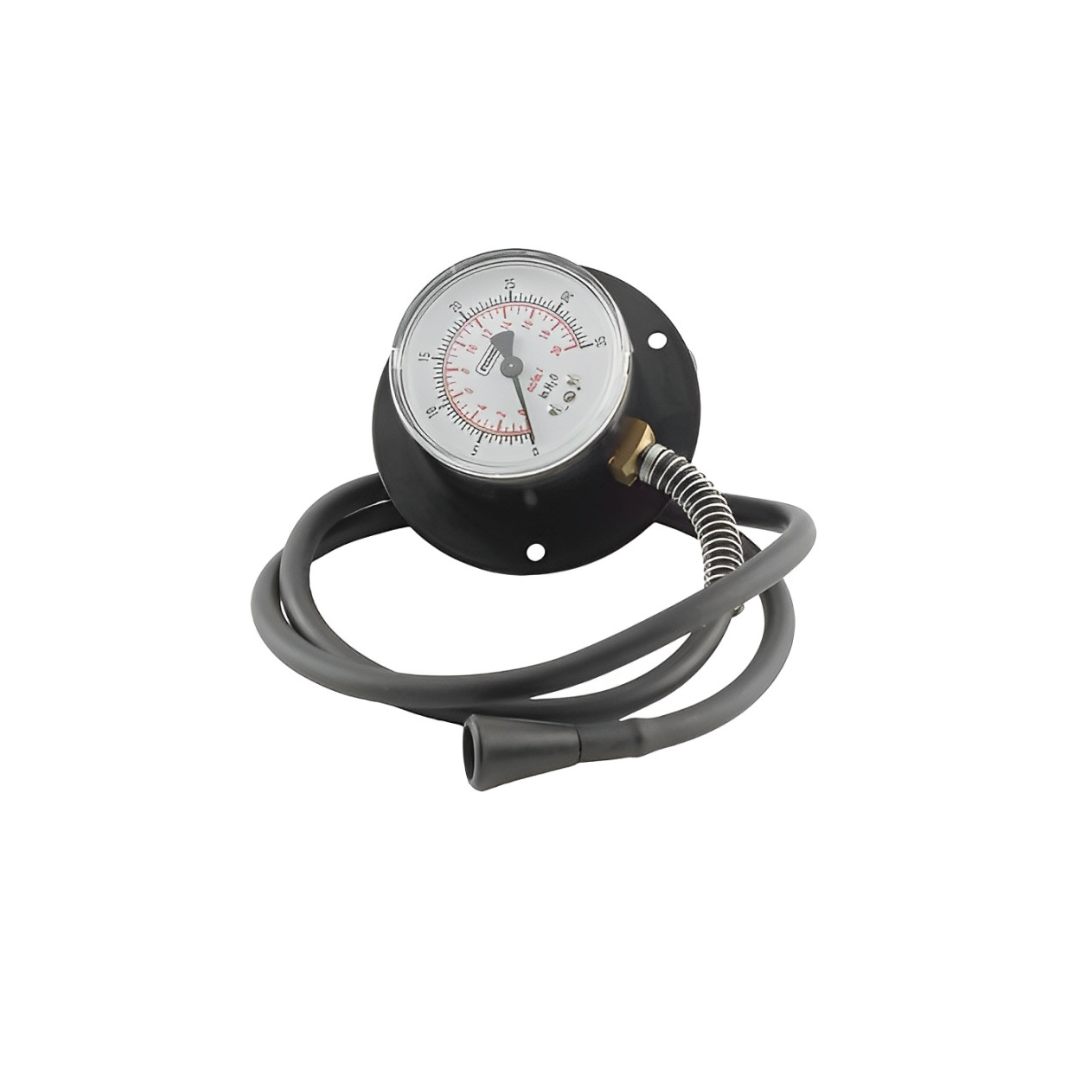

• รุ่น 50P-2 ใช้ท่อสายอ่อน (Flexible Hose) แทนการต่อแบบเกลียว และมาพร้อมกล่องบรรจุแบบพกพา
รุ่น 50-2 มีช่วงการสอบเทียบตั้งแต่:
• 0 ถึง 20 psi (ปอนด์ต่อตารางนิ้ว)
• 0 ถึง 35 นิ้วของคอลัมน์น้ำ (inches W.C.)
รุ่น J500 Series
เกจวัดแรงดันในซีรีส์ J500 มีลักษณะโครงสร้างเช่นเดียวกัน คือ ตัวเรือนทำจากพลาสติก ABS Terluran® สีดำ พร้อมหน้าต่างพลาสติกแบบหล่อขึ้นรูป เพื่อความแข็งแรงและป้องกันการกระแทก
จุดเด่นของรุ่น J500 คือ:
• สามารถเลือกตำแหน่งการเชื่อมต่อเกลียว NPT ขนาด 1/4 นิ้ว ได้ทั้งที่ด้านล่าง ด้านหลัง หรือด้านบนของตัวเรือน

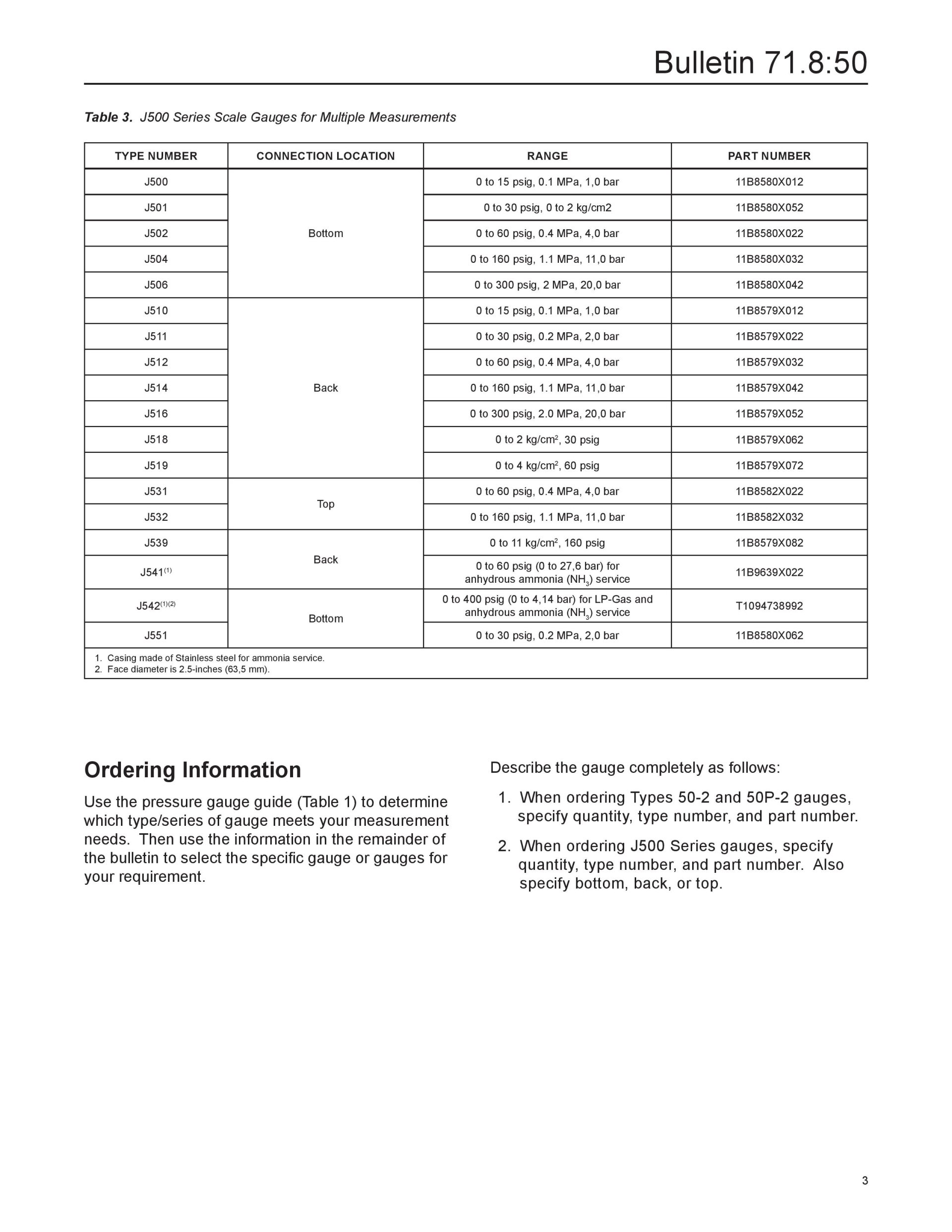

• รองรับการสอบเทียบหลากหลาย ตามรายละเอียดในตารางที่แสดงในเอกสาร (Table 3)

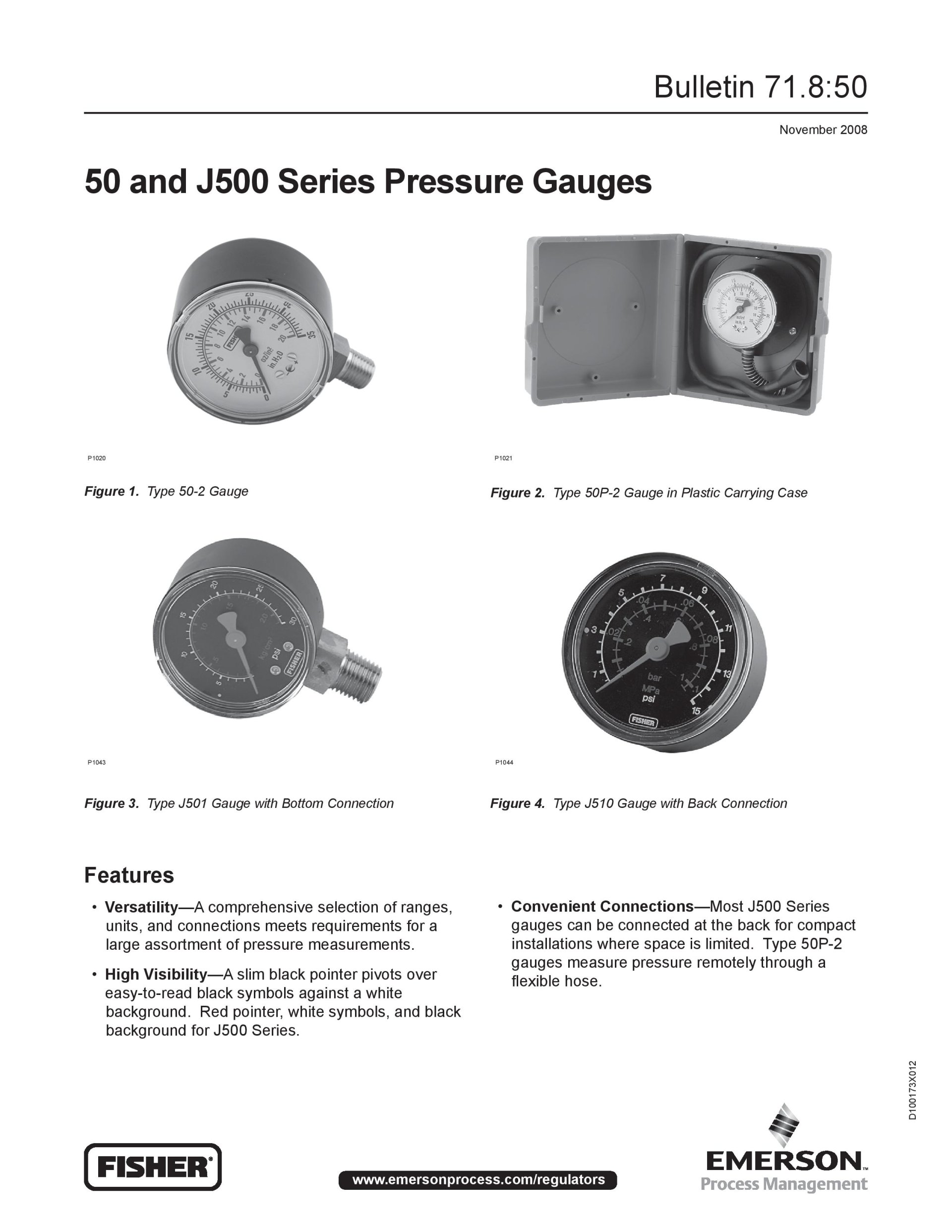

The Fisher™ 50 Series consists of versatile pressure gauges designed for a wide range of pressure measurement applications, both in laboratory settings and field environments. Each gauge features a durable black ABS Terluran plastic housing with a molded plastic viewing window for added protection and visibility. The Type 50P-2 gauge is functionally identical to the Type 50-2, with the key difference being its pressure input—delivered through a flexible hose instead of the standard 1/4-inch NPT connection.
Features
• Versatility A comprehensive selection of ranges, units, and connections meets requirements for a large assortment of pressure measurements.
• High Visibility A slim black pointer pivots over easy-to-read black symbols against a white background. Red pointer, white symbols, and black background for J500 Series.
• Convenient Connections Most J500 Series gauges can be connected at the back for compact installations where space is limited. Type 50P-2 gauges measure pressure remotely through a flexible hose.
Specifications
Body Sizes and End Connection Styles
• 1/4 NPT connection
50 and J500 Series Pressure Gauges
• Figure 1. Type 50-2 Gauge

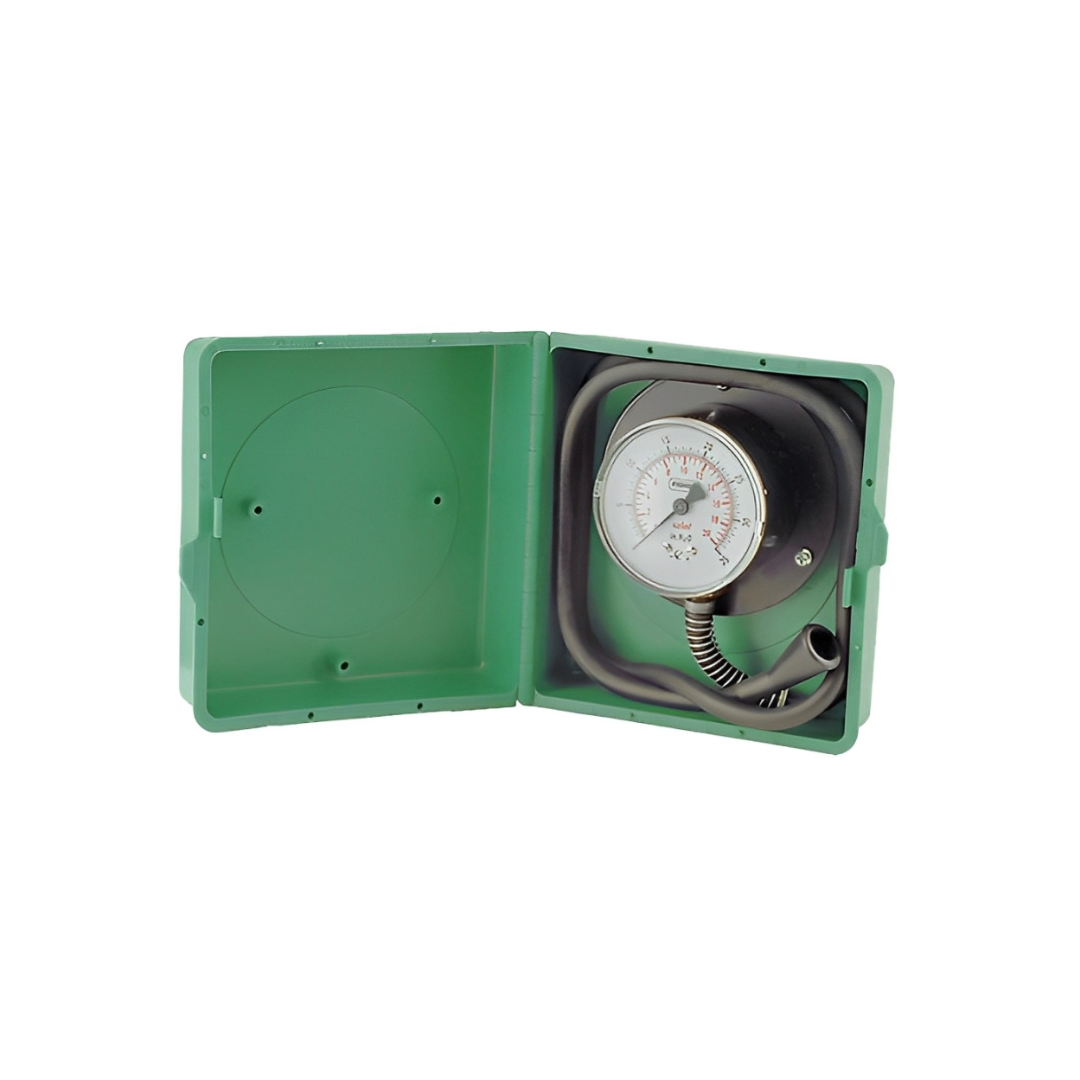

• Figure 2. Type 50P-2 Gauge in Plastic Carrying Case
PART NUMBER
• AA4854000A2
• AA4856000G2
• Figure 3. Type J501 Gauge with Bottom Connection
• Figure 4. Type J510 Gauge with Back Connection
PART NUMBER
• 11B8580X012
• 11B8580X052
• 11B8580X022
• 11B8580X032
• 11B8580X042
• 11B8579X012
• 11B8579X022
• 11B8579X032
• 11B8579X042
• 11B8579X052
• 11B8579X062
• 11B8579X072
• 11B8582X022
• 11B8582X032
• 11B8579X082
• 11B9639X022
• T1094738992
• 11B8580X062
