MAC Valves 35A Series Small 3-Way Valves
คุณสมบัติสินค้า:
Port Size : 1/8″, Actuation : Single Solenoid/Spring Return, Operating Pressure : 14-150 PSI, Proof Pressure : 120 PSI Temperature : -18 to 50°C, Medium : Compressed air, vacuum, inert gases, Function : 3 Port / 2 Position, Working Pressure : Vacuum to 120 PSI
หมวดหมู่ : PRODUCTS , อุปกรณ์นิวเมติกส์ (PNEUMATIC) , MAC Valves ,
แบรนด์ : MAC Valves distributor
Share
Technical data
Port Size : 1/8″
Actuation : Single Solenoid/Spring Return
Operating Pressure : 14-150 PSI
Proof Pressure : 120 PSI
Temperature : -18 to 50°C
Medium : Compressed air, vacuum, inert gases
Function : 3 Port / 2 Position
Working Pressure : Vacuum to 120 PSI
Cv (Max) : 0.17
Port Size : 1/8″
Configurations : Inline – Stacking – Sub Base/Manifold: Non Plug-in
MAC Valves 35A Series
35A-AAA-DAAA-1BA
35A-ACA-DDBA-1BA

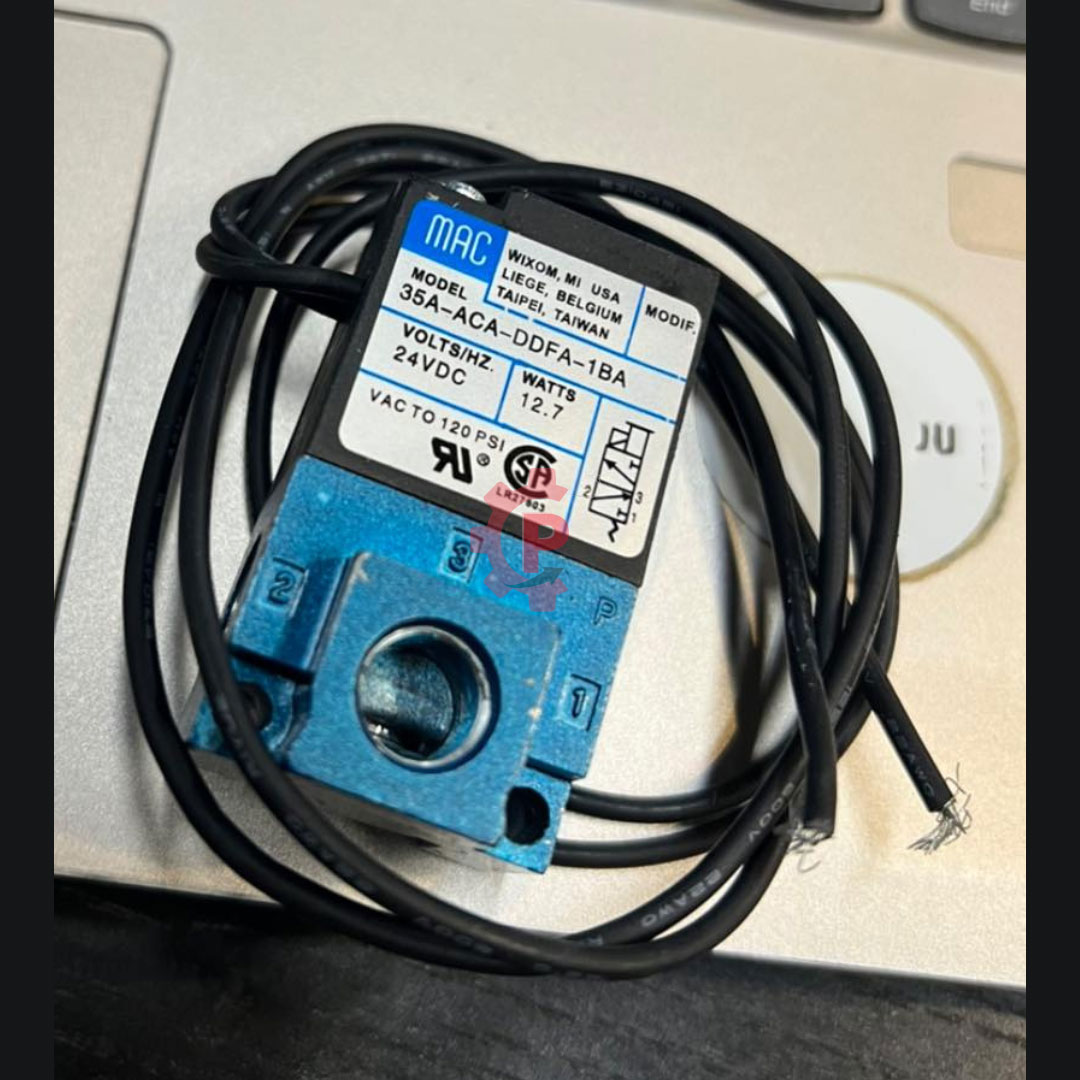

35A-ACA-DDFA-1BA
35A-ACA-DDAA-1BA

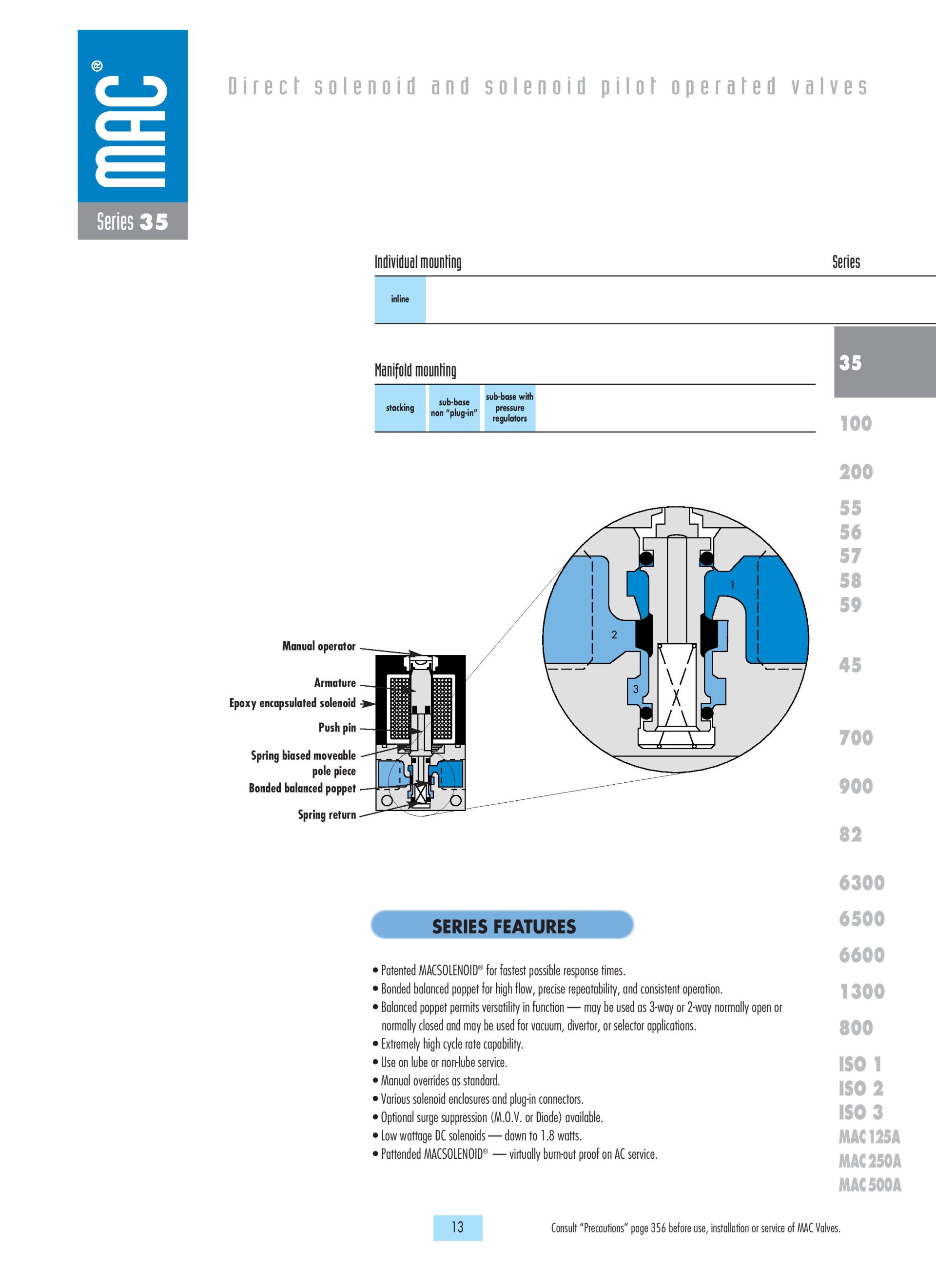

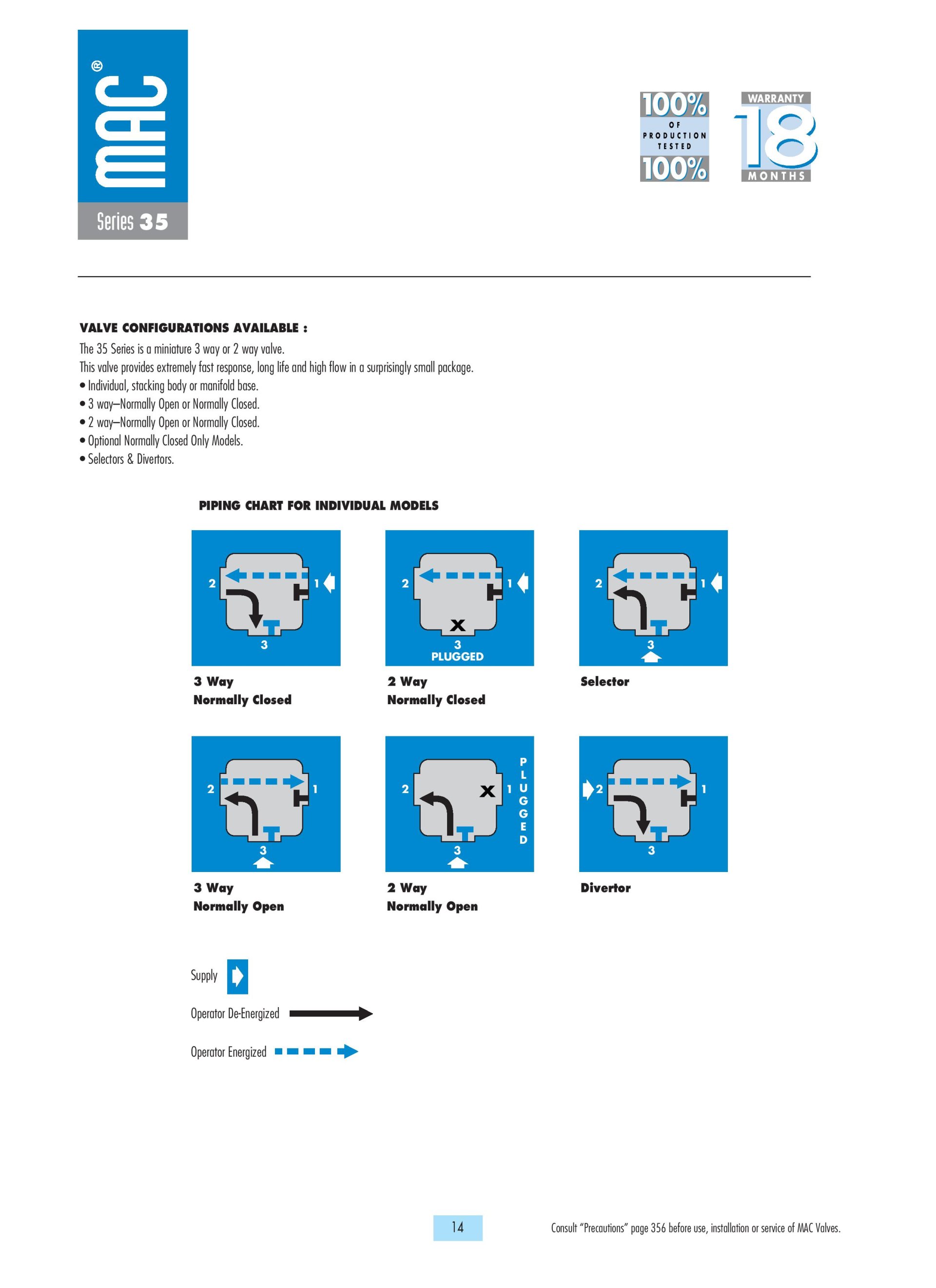

The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means versatility in piping – the valve can be configured as a 3-way or 2-way – normally closed or normally open or can be used for vacuum, diverter or selector applications.
