Asco Joucomatic 34600 Series 346 Quick Exhaust Valve
คุณสมบัติสินค้า:
PNEUMATIC ASCO Joucomatic 34600136, 34600137, 34600138, 34600139 Series 346 is a Quick Exhaust Valve, G1/4~G3/4 with a light alloy body. Suitable for temperatures between -10C and +60C.
หมวดหมู่ : PRODUCTS , อุปกรณ์นิวเมติกส์ (PNEUMATIC) , ASCO ,
แบรนด์ : ASCO valve distributor
Share
ตัวแทนนำเข้าและจำหน่ายอุปกรณ์นิวเมติกส์ (PNEUMATIC) ASCO Joucomatic 34600136, 34600137, 34600138, 34600139 Series 346 is a Quick Exhaust Valve, G1/4~G3/4 with a light alloy body. Suitable for temperatures between -10C and +60C.

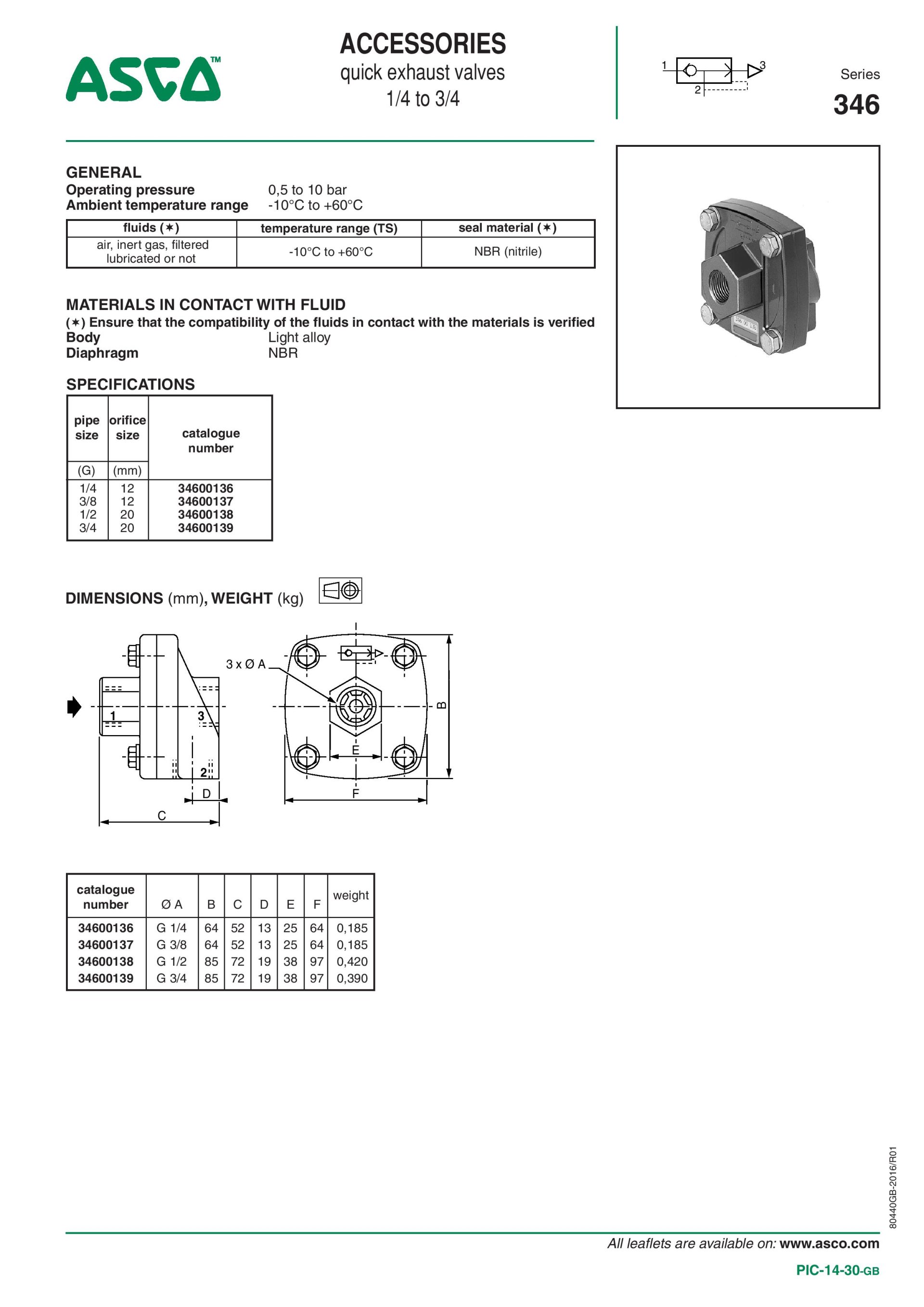

ASCO™ Pneumatic Accessory
Series 346 Quick Exhaust Valve
• Manufacturer : Joucomatic
• Part Number :
• 34600136 = G1/4
• 34600137 = G3/8
• 34600138 = G1/2
• 34600139 = G3/4
Specifications 34600136
| Body Material | Light Alloy |
| Pipe/Port Type & Size | G 1/4 (ISO 228/1) |
| Product Type | Air Preparation |
| Media | Air, Inert Gas |
| Min to Max Operating Pressure (Air) | 0-10 bar |
| Product Weight | 0.20 kg |
| Min to Max Ambient Temperature | -10-60 °C |
| Min to Max Fluid Temperature | -10-60 °C |
| Orifice Size | 12 mm |
| Orifice Size | 12 |
| Pipe/Port Size | 1/4" |
Specifications 34600137
| Body Material | Light Alloy |
| Pipe/Port Type & Size | G 3/8 (ISO 228/1) |
| Product Type | Air Preparation |
| Media | Air, Inert Gas |
| Min to Max Operating Pressure (Air) | 0-10 bar |
| Product Weight | 0.19 kg |
| Min to Max Ambient Temperature | -10-60 °C |
| Min to Max Fluid Temperature | -10-60 °C |
| Orifice Size | 12 mm |
| Orifice Size | 12 |
| Pipe/Port Size | 3/8" |
Specifications 34600138
| Body Material | Light Alloy |
| Pipe/Port Type & Size | G 1/2 (ISO 228/1) |
| Product Type | Air Preparation |
| Media | Air, Inert Gas |
| Min to Max Operating Pressure (Air) | 0-10 bar |
| Product Weight | 0.47 kg |
| Min to Max Ambient Temperature | -10-60 °C |
| Min to Max Fluid Temperature | -10-60 °C |
| Orifice Size | 20 mm |
| Orifice Size | 20 |
| Pipe/Port Size | 1/2" |
Specifications 34600139
| Body Material | Light Alloy |
| Pipe/Port Type & Size | G 3/4 (ISO 228/1) |
| Product Type | Air Preparation |
| Media | Air, Inert Gas |
| Min to Max Operating Pressure (Air) | 0-10 bar |
| Product Weight | 0.43 kg |
| Min to Max Ambient Temperature | -10-60 °C |
| Min to Max Fluid Temperature | -10-60 °C |
| Orifice Size | 20 mm |
| Orifice Size | 20 |
| Pipe/Port Size | 3/4" |
