ตัวแทนจำหน่าย Fisher by Emerson Type 63EG-98HM Pilot Operated Relief Valve or Back pressure Regulator ในประเทศไทย

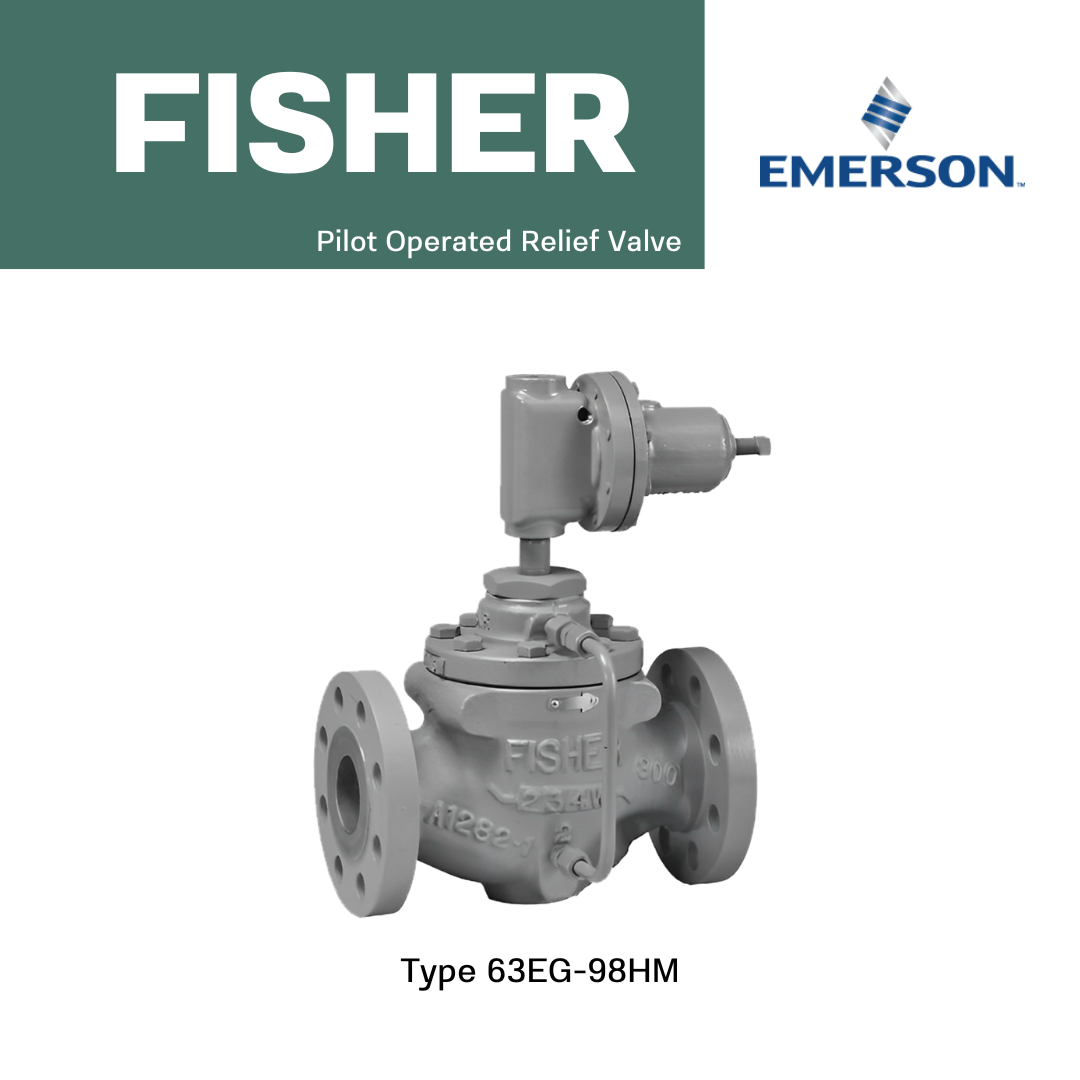

The Fisher Type 63EG-98HM is a versatile pilot-operated relief valve or backpressure regulator designed for use in gas, liquid, or steam applications. Capable of handling process temperatures up to 450°F (232°C), this valve utilizes high-performance elastomers such as Ethylene Propylene Rubber (EPR) or Perfluoroelastomer (FFKM) to ensure Class VI tight shutoff, even in high-temperature and corrosive environments.
When dealing with corrosive liquids, especially water-based or aqueous solutions, it is essential to select proper valve materials. Stainless steel components, such as a linear cage or Whisper Trim™ III cage and body flange, are recommended to ensure the valve plug travels along a corrosion-resistant surface. Note: the 63EG-98HM is not ASME certified.

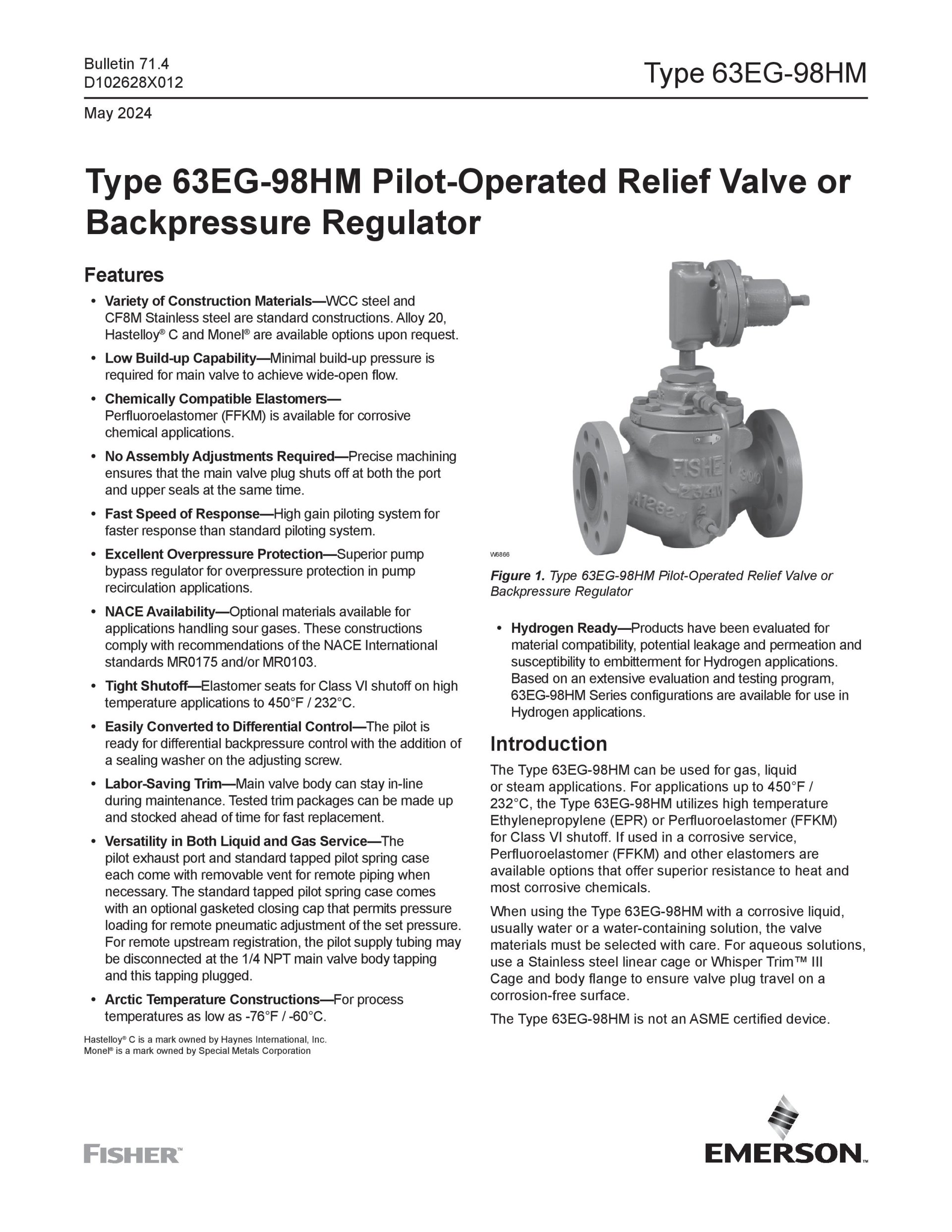

Features
Broad Material Availability
• Standard construction includes WCC steel and CF8M stainless steel. Specialty alloys such as Alloy 20, Hastelloy® C, and Monel® are available upon request for highly corrosive environments.
Low Pressure Buildup
• Designed for minimal pressure buildup to achieve wide-open main valve flow quickly.
Corrosion-Resistant Elastomers
• FFKM elastomers are available to handle chemically aggressive applications with enhanced temperature and corrosion resistance.
No Calibration Needed
• Precision-machined components ensure simultaneous shutoff at both the port and upper seal, eliminating the need for assembly adjustments.
Rapid Response Time
• A high-gain pilot system delivers faster reaction than conventional piloting systems, making it ideal for critical applications.
Effective Overpressure Protection
• Exceptional performance in pump bypass or recirculation systems, protecting against overpressure conditions.
Sour Gas Compatibility
• Optional NACE-compliant materials are available for handling sour gas applications, meeting MR0175 and/or MR0103 standards.
Class VI Shutoff at High Temperatures
• Elastomer seating ensures leak-tight Class VI shutoff at temperatures up to 450°F (232°C).
Quick Conversion to Differential Control
• Easily adaptable for differential backpressure control by adding a sealing washer to the adjusting screw.
Efficient Maintenance Design
• The main valve body remains in-line during servicing. Pre-assembled trim packages allow for fast and simple replacement, reducing system downtime.
Adaptable to Liquid and Gas Applications
• Includes removable vents on both the pilot exhaust port and tapped pilot spring case for remote vent piping. The spring case also supports remote pneumatic pressure adjustment using a gasketed closing cap.
Remote Upstream Registration Option
• For upstream sensing, the pilot supply tube can be disconnected at the 1/4-inch NPT tapping on the main valve body, and the port can be sealed.
Arctic Service Compatibility
• Available in special configurations for extremely low temperatures down to -76°F (-60°C).
Hydrogen Service Ready
• The 63EG-98HM Series has been evaluated and approved for hydrogen applications, meeting criteria for material compatibility, permeation, and resistance to hydrogen embrittlement.
PART NUMBER
• ERCA04288A0
• ERAA01910A0
• ERAA01911A0
• ERAA02889A0
• ERCA04293A0
• 1N943427142

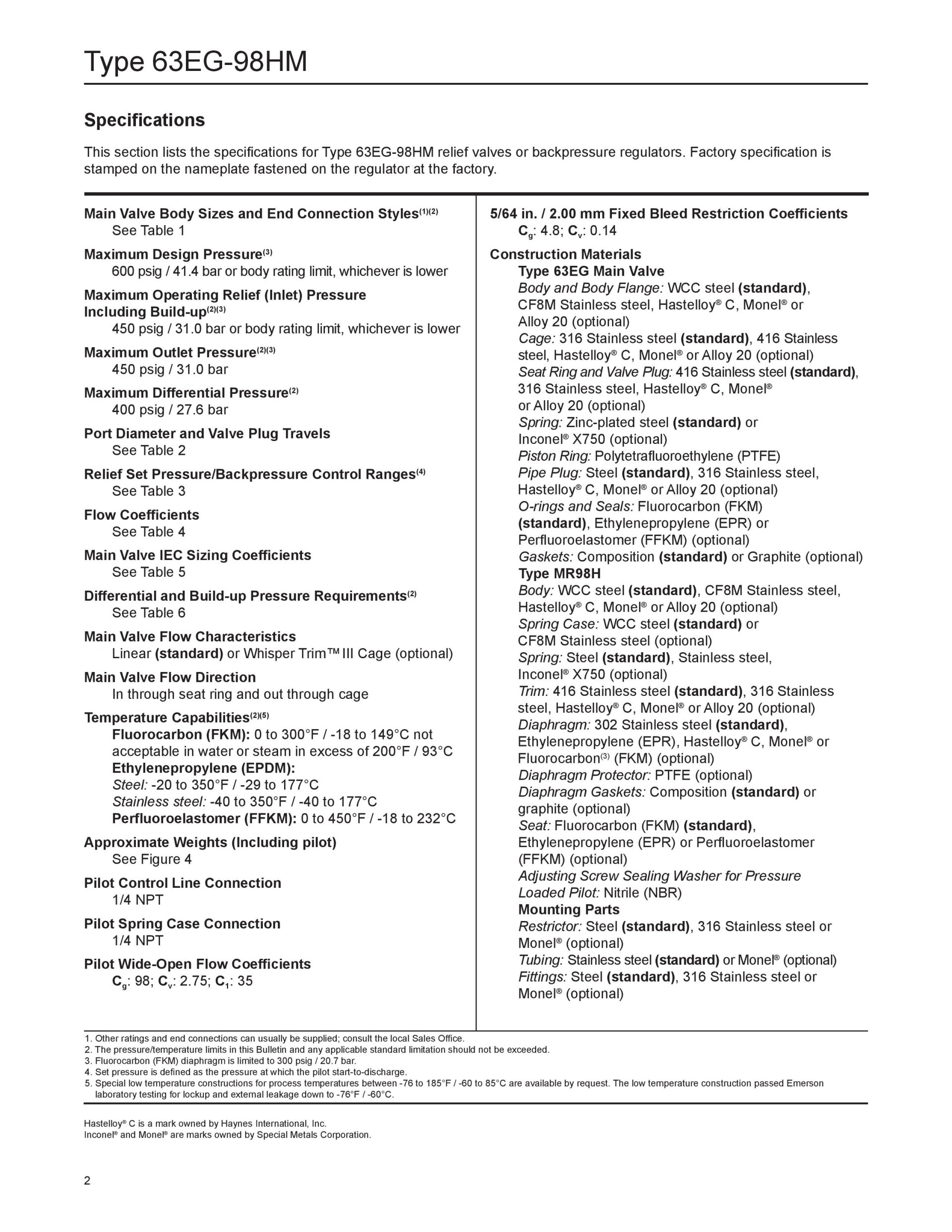

Specifications
Pressure Registration
• External
Temperature Capabilities
• Generic Spec 2 Value
Body Sizes
• NPS 2 / 3 / 4 / 6 / 8x6 | DN 50 / 80 / 100 / 150 / 200x150
End Connections
• CL150RF / CL300RF / CL600RF / PN 16/25/40
Maximum Inlet Pressure
• 450 PSIG / 31 bar | Or body rating limit, whichever is lower
Maximum Outlet Pressure
• 450 PSIG / 31 bar | Or body rating limit, whichever is lower
Spring Ranges
• 15 to 375 PSIG / 1 to 25.9 bar
Additional Technical Data
• For additional technical information,?contact?your local?Sales Office?or refer to technical documentation.
