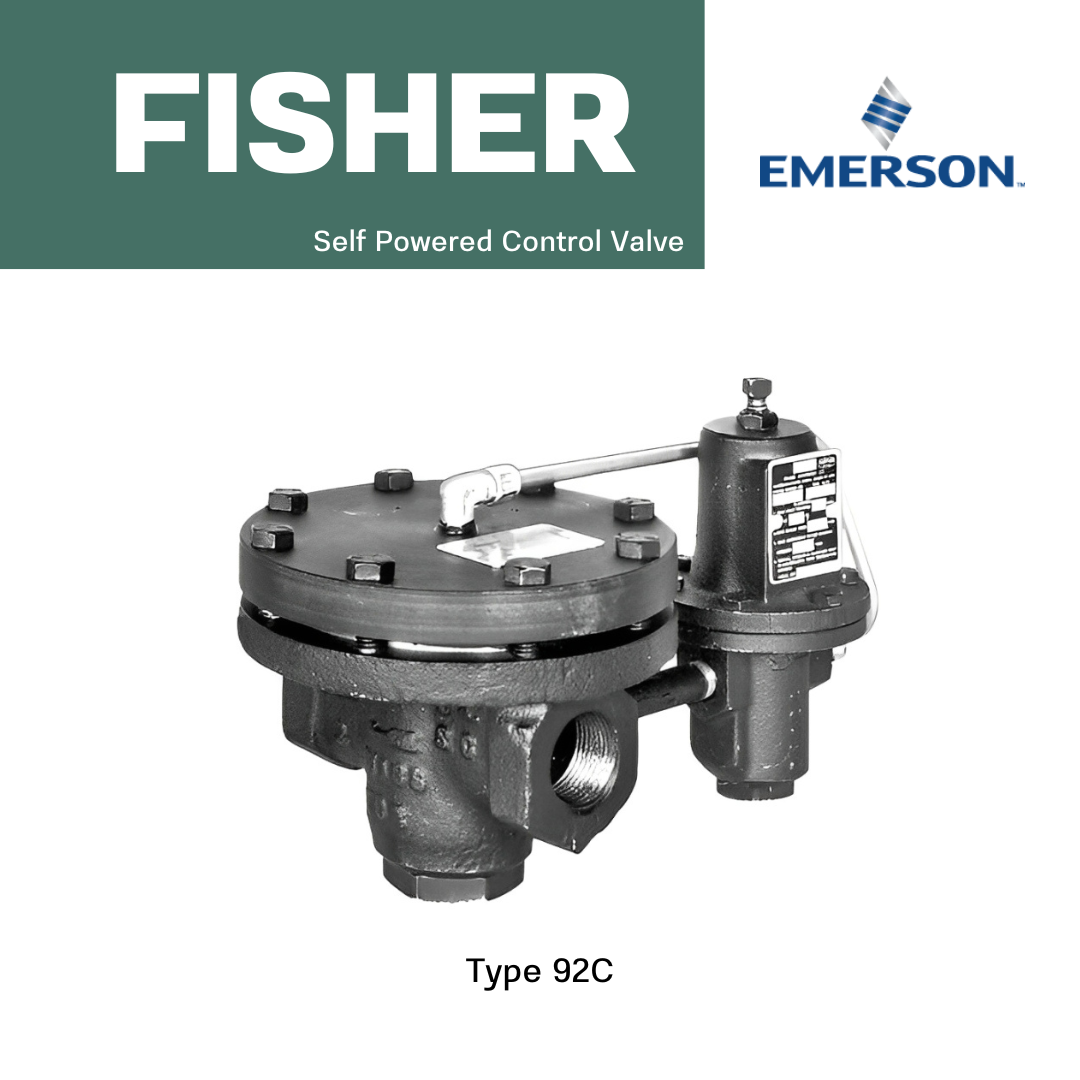

ตัวแทนจำหน่าย Fisher Type 92C Self Powered Control Valve ในประเทศไทย

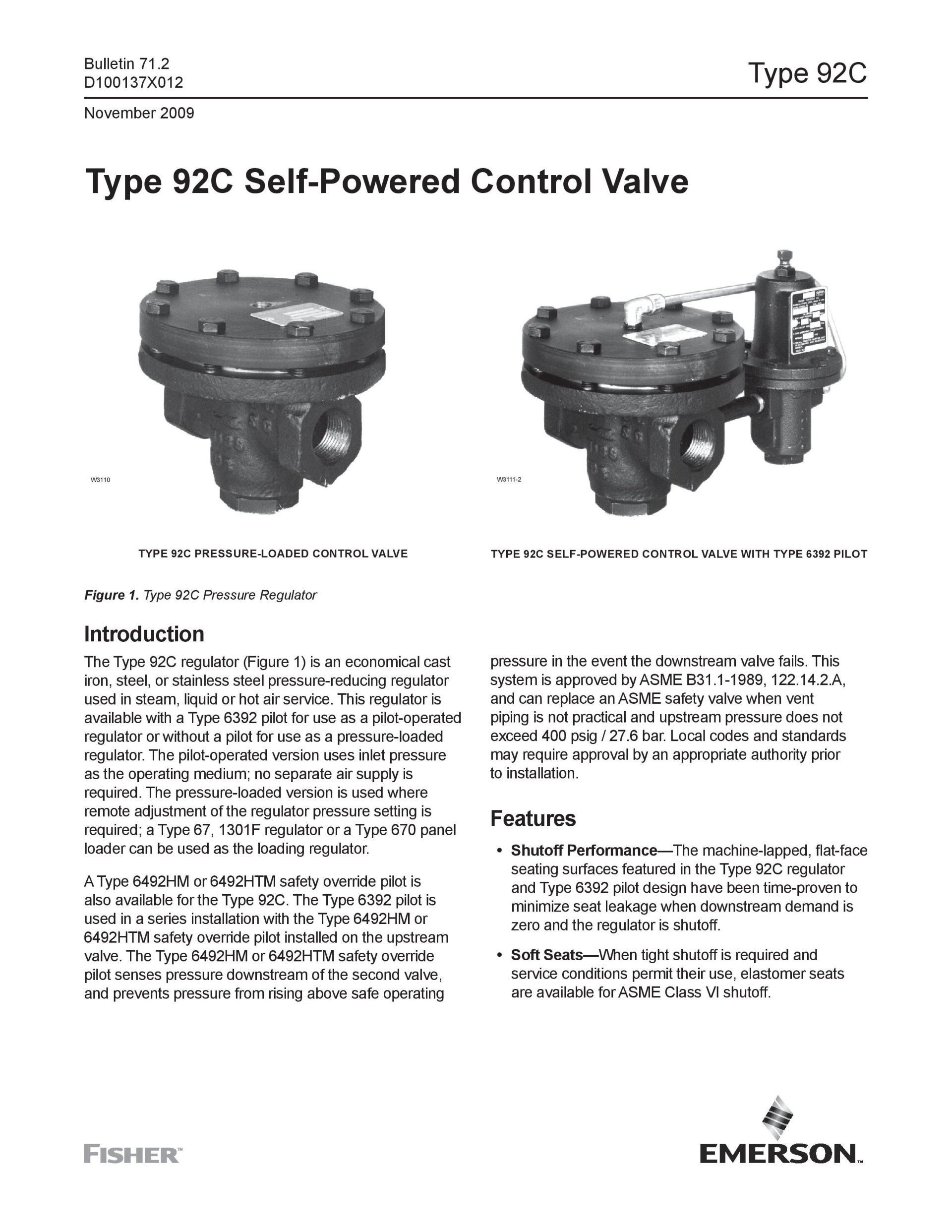

The Fisher Type 92C is a versatile and economical pressure-reducing regulator designed for steam, liquid, or hot air service. Constructed from cast iron, steel, or stainless steel, this regulator offers durable performance in demanding industrial environments.
The Type 92C is available in two configurations:

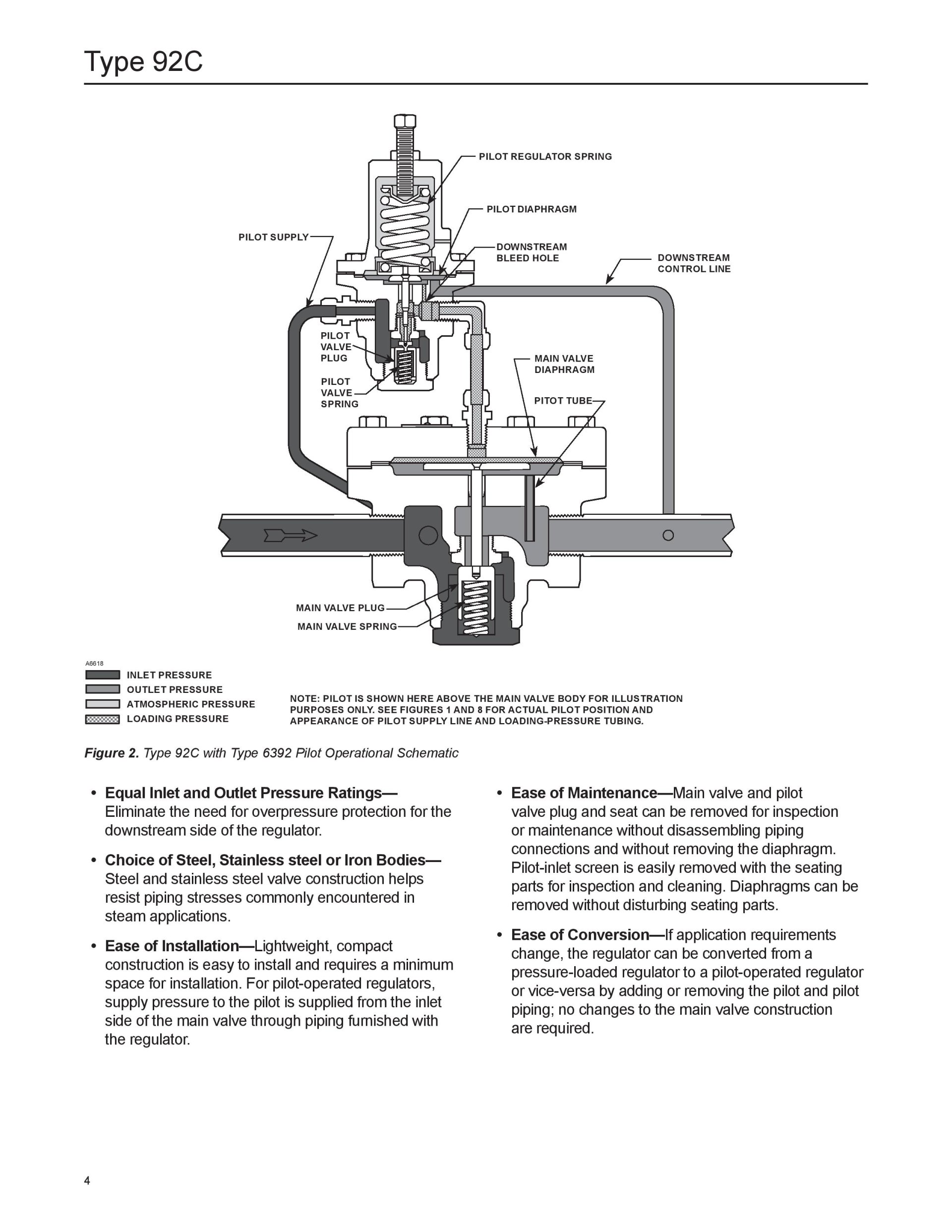

• As a pilot-operated regulator using the Type 6392 pilot, which utilizes inlet pressure as the operating medium, requiring no external air supply.
• As a pressure-loaded regulator, suitable for remote pressure adjustment, when used with a separate loading regulator such as the Type 67, 1301F, or Type 670 panel loader.

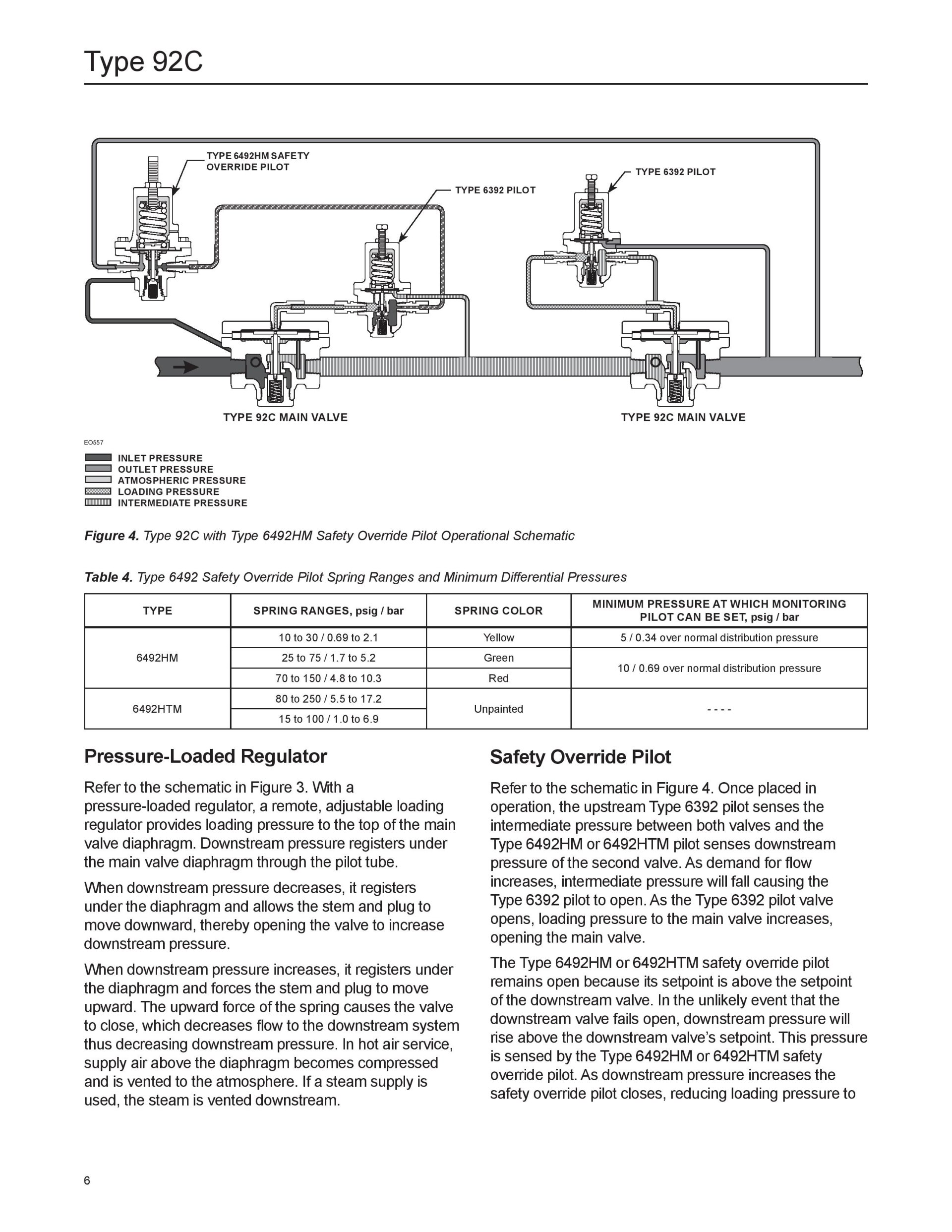

Additionally, the Type 6492HM or 6492HTM safety override pilot can be installed with the Type 92C for applications requiring advanced overpressure protection. In this configuration, the Type 6392 pilot is mounted on the downstream valve, while the 6492HM/HTM pilot is placed on the upstream valve. This arrangement allows the override pilot to monitor downstream pressure and prevent pressure from exceeding safe limits if the downstream valve fails.
This safety setup meets the requirements of ASME B31.1-1989, 122.14.2.A, and may replace a traditional ASME safety valve when vent piping is impractical and upstream pressure does not exceed 400 psig (27.6 bar). Local codes may require additional approvals prior to installation.
Features
• Reliable Shutoff Performance
Machine-lapped, flat-faced seating surfaces in both the Type 92C and Type 6392 pilot minimize leakage under zero downstream demand conditions.
Soft Seat Options for Tight Shutoff
• Elastomeric seat materials are available when ASME Class VI shutoff is required and service conditions allow.
Equal Inlet and Outlet Pressure Ratings
• Designed with matched pressure ratings, eliminating the need for downstream overpressure protection.
Material Flexibility
• Available in cast iron, steel, and stainless steel to suit a range of application conditions. Steel and stainless options offer enhanced resistance to mechanical stress in steam systems.
Compact and Easy to Install
• Lightweight, space-saving design simplifies installation. For pilot-operated models, the supply pressure is routed from the valve inlet to the pilot using factory-provided piping.
Service-Friendly Maintenance
• Plug and seat components in both the main valve and pilot can be accessed without disturbing pipeline connections or removing the diaphragm. The pilot-inlet screen is easily removed along with seating parts for cleaning and inspection.
Simple Conversion Between Configurations
• The Type 92C can be converted from a pressure-loaded to a pilot-operated regulator—or vice versa—without modifying the main valve. Conversion only requires adding or removing the pilot and associated piping.
PART NUMBER
• 1E392627012
• 1E392727142
• 14B9941X012
• 14B9940X012

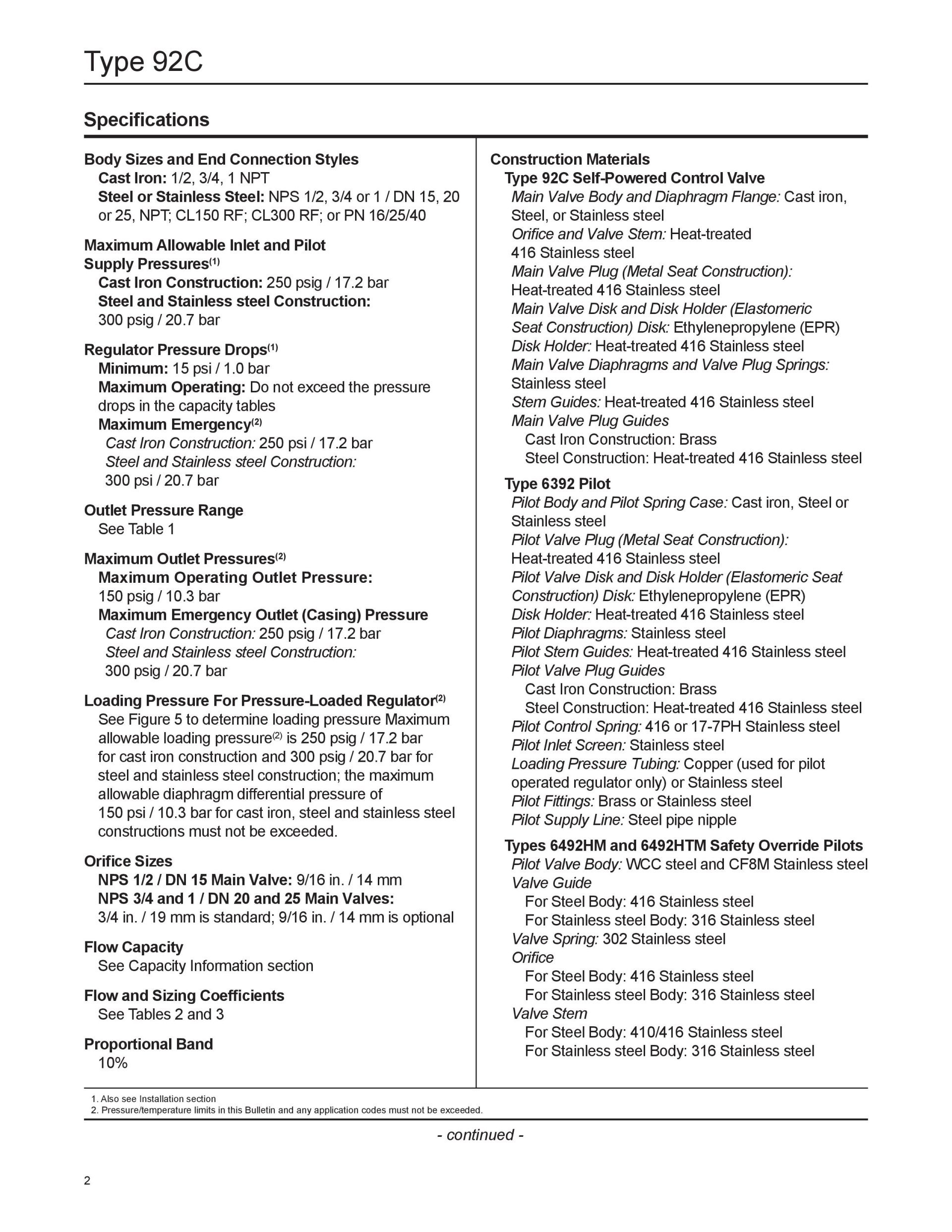

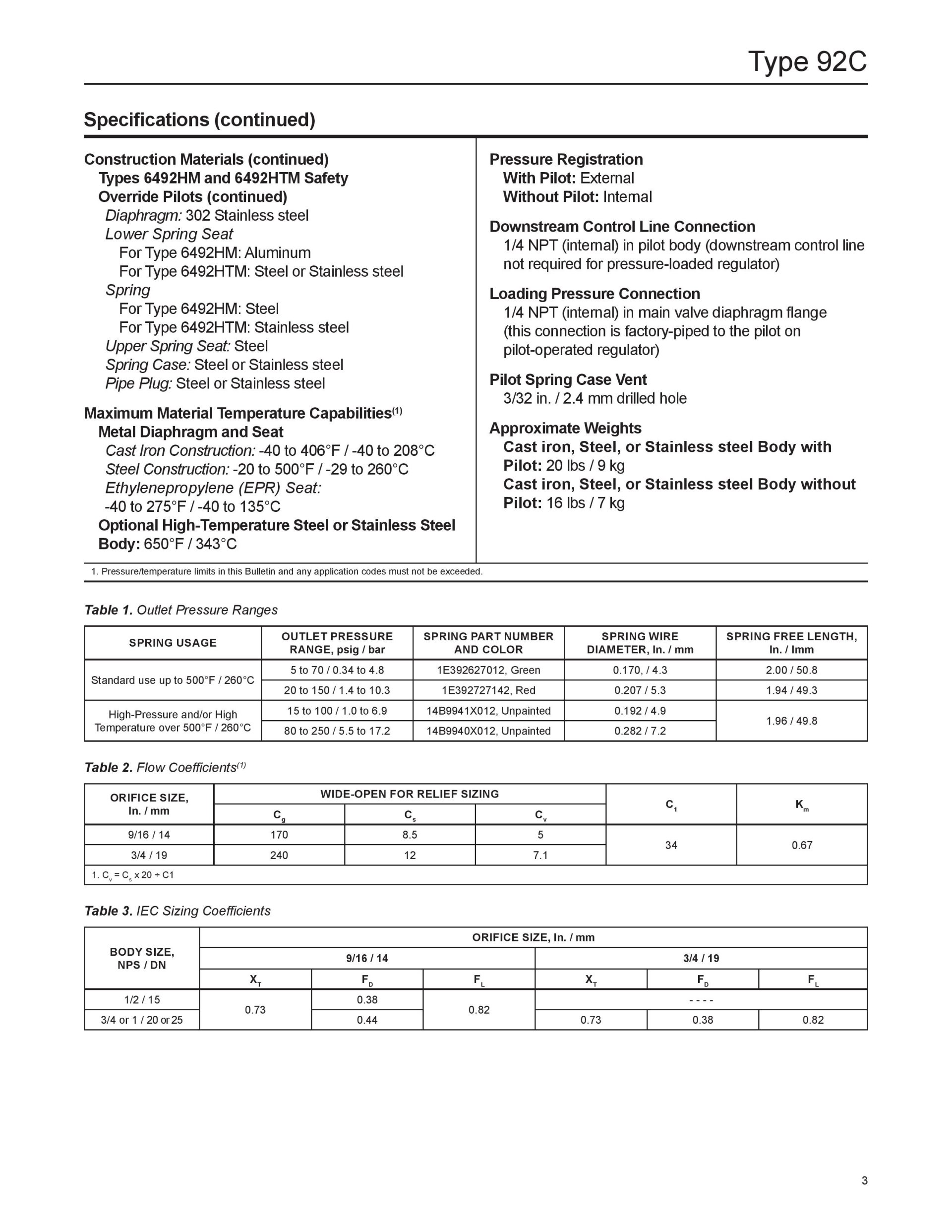

Specifications
Pressure Registration
• With Pilot:?Externall | Without Pilot: Internal
Temperature Capabilities
• Metal Diaphragm and Seat Cast Iron Body:?406°F / 208°C | Stainless Steel or Steel Body: 500°F / 260°C | Optional High-Temperature Steel or Stainless Steel Body: 650°F / 343°C
Body Sizes
• NPS 0.5 / 0.75 / 1
End Connections
• NPT
Maximum Inlet Pressure
• Cast Iron: 250 PSIG / 17.2 bar | Steel: 300 PSIG / 20.7 bar
Maximum Outlet Pressure
• Cast Iron: 250 PSIG / 17.2 bar | Steel: 300 PSIG / 20.7 bar
Spring Ranges
• 5 to 250 PSIG / 0.34 to 17.2 bar
Additional Technical Data
• For additional technical information,?contact?your local?Sales Office?or refer to technical documentation.
