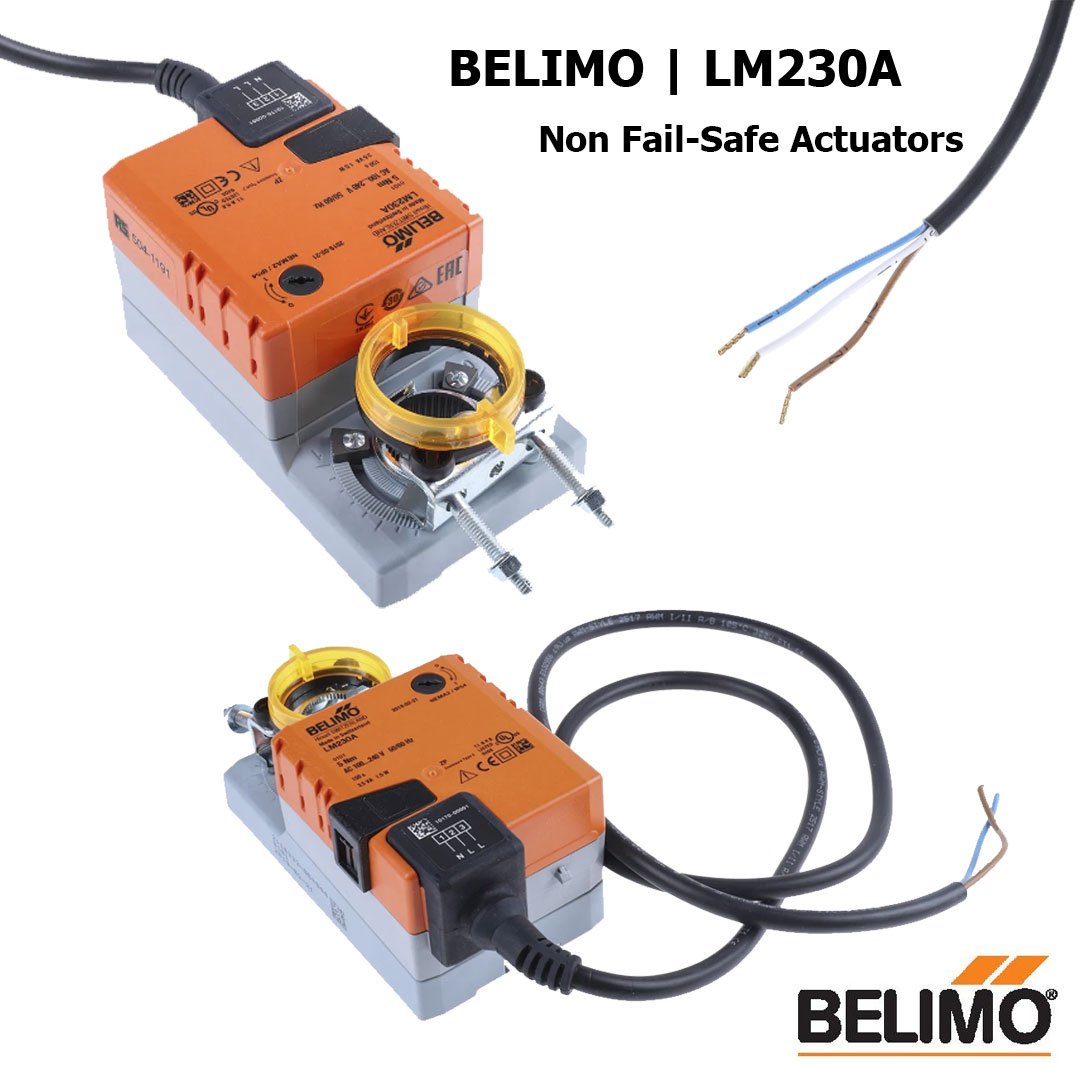

BELIMO LM230A | Non Fail-Safe Actuators
คุณสมบัติสินค้า:
Belimo LM230A Rotary actuator, Open/Close Damper Actuator 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54
หมวดหมู่ : PRODUCTS , ELECTRIC ACTUATOR , BELIMO , LM230A ,
แบรนด์ : BELIMO distributor
Share
จำหน่าย Non Fail-Safe Actuators ยี่ห้อ Belimo รุ่น LM230A ราคาถูก Rotary actuator, Open/Close Damper Actuator 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54 ตัวแทนจำหน่ายประเทศไทย
Belimo Damper Actuator
The Belimo damper actuator has an open/close control type. This actuator has an adjustable U-clamp, which accepts round or square shafts. It is a rotary/louver actuator. It is compatible with all the leading makes of HVAC controls. The damper actuator is used for adjusting air dampers in ventilation and air-conditioning systems in buildings. This actuator operates on stall torque technology, which does not require end switches. The damper actuator has no limit switches and is overload proof. It requires a 240VAC/VDC supply voltage.
Optional auxiliary switch (stock no. 504-1545) suitable for use with LM, NM, SM and GM damper actuators, features 2xSPDT switches rated at 3 (0.5)A 250Vac and supplied with 1m of cable.
Features and Benefits
• Operation life is minimum 60000
• Pushbutton manual override
• Direction change switch
• Cable length is 1m
• Ambient temperature ranges between -30°C and 50°C
• Maintenance free
• Low power consumption up to 1.5W
• Maximum damper area is 1m²
• Damper spindle compatibility ranges between 6mm and 20mm
• Motor torque is 5Nm
• Noise level is 35dB
Certifications
• IP54 rated
• CE according to 89/336/EEC
• 92/31/EEC
• UL Enclosure Type 2
• IEC/EN 60730-1
• IEC/EN 60730-2-14

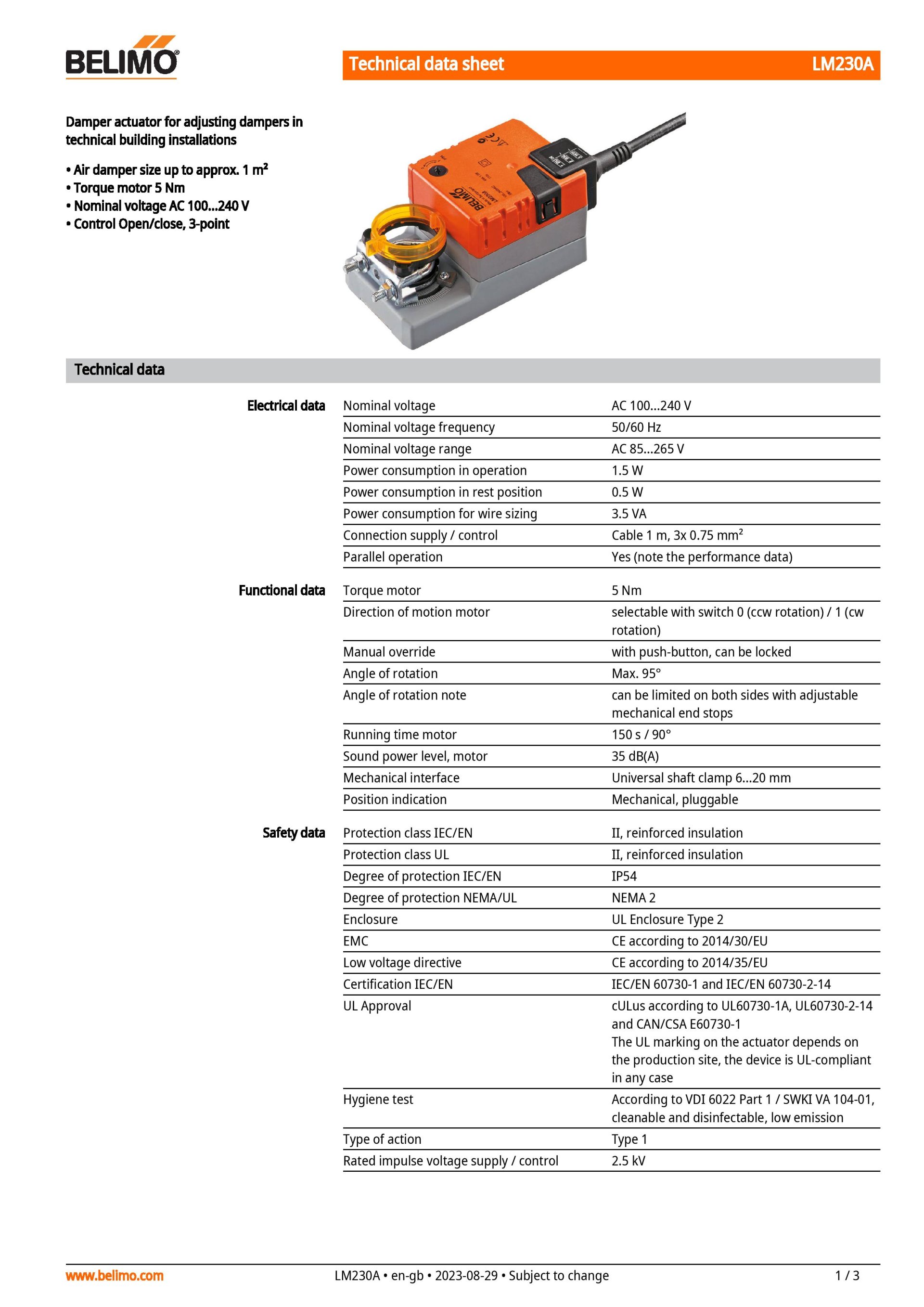

Specifications
| Voltage AC/DC | AC 100...240 V |
| Power consumption (running) | 1.5 W |
| Power consumption (holding) | 0.5 W |
| Power Consumption For Wire Sizing | 3.5 VA |
| Connection Supply Control | Cable 1 m, 3x 0.75 mm² |
| Torque | 5 Nm |
| Control type | : Open/close : 3-point |
| Direction Of Motion Motor | selectable with switch 0 (ccw rotation) / 1 (cw rotation) |
| Manual override | With push-button, can be locked |
| Angle of rotation | 95 |
| Running time (motor) | 150 s / 90° |
| Mechanical interface | Universal shaft clamp 6...20 mm |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | -30...50°C [-22...122°F] |
