MAC Valves Large 4-Way Valves 6300 Series

Name: MAC Valves Large 4-Way Valves 6300 Series
Brand: MAC Valves distributor
SKU: 6300
Availability: InStock

คุณสมบัติสินค้า:

Function : 4 Port/2 Position, Actuation : Single/Double Solenoid, Cv (Max) : 3.0, Port Sizes : 1/4″-1/2″, Configurations : Individual Sub-base/Manifold: Plug-in/Non Plug-in

เพิ่มรายการโปรด

เปรียบเทียบ

หมวดหมู่ : PRODUCTS , อุปกรณ์นิวเมติกส์ (PNEUMATIC) , MAC Valves ,

แบรนด์ : MAC Valves distributor

ตัวแทนจำหน่าย MAC Valves รุ่น 6300 Series ประเทศไทย ราคาถูก

Technical data
Function : 4 Port/2 Position
Actuation : Single/Double Solenoid
Cv (Max) : 3.0
Port Sizes : 1/4″-1/2″
Configurations : Individual Sub-base/Manifold: Plug-in/Non Plug-in

Maximum Flow Rate : 3,000 L
Maximum Working Pressure : 120 psi
Working Temperature : 0-50.C

MAC Valves 6300 Series
6311D-000-PM
6311D-111-PM
6311D-121-PM
6311D-211-PM
6311D-311-PM
6311D-321-PM

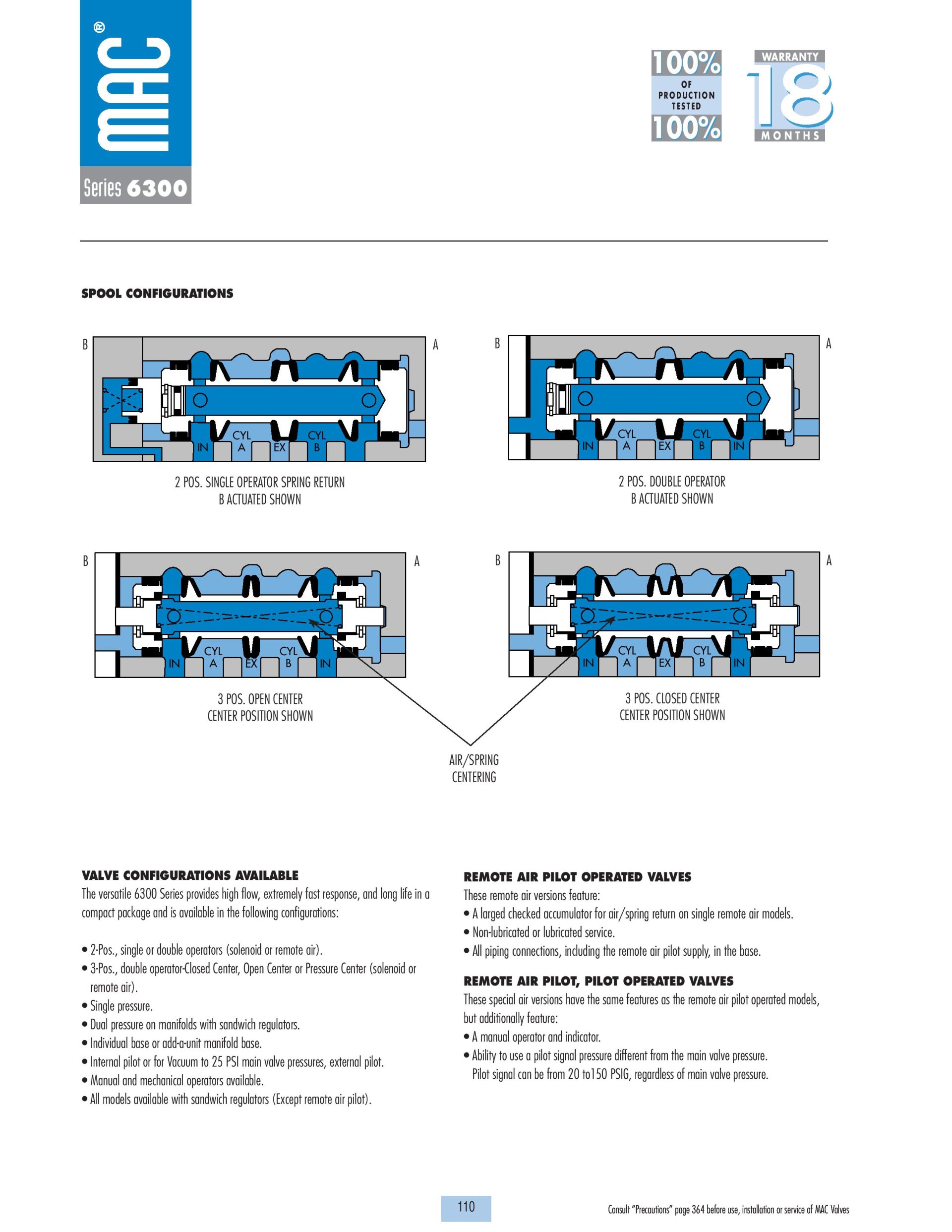

The MAC 6300 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations. Our balanced spool means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications. Our one piece bonded seal spool means longer life and easy maintenance.
