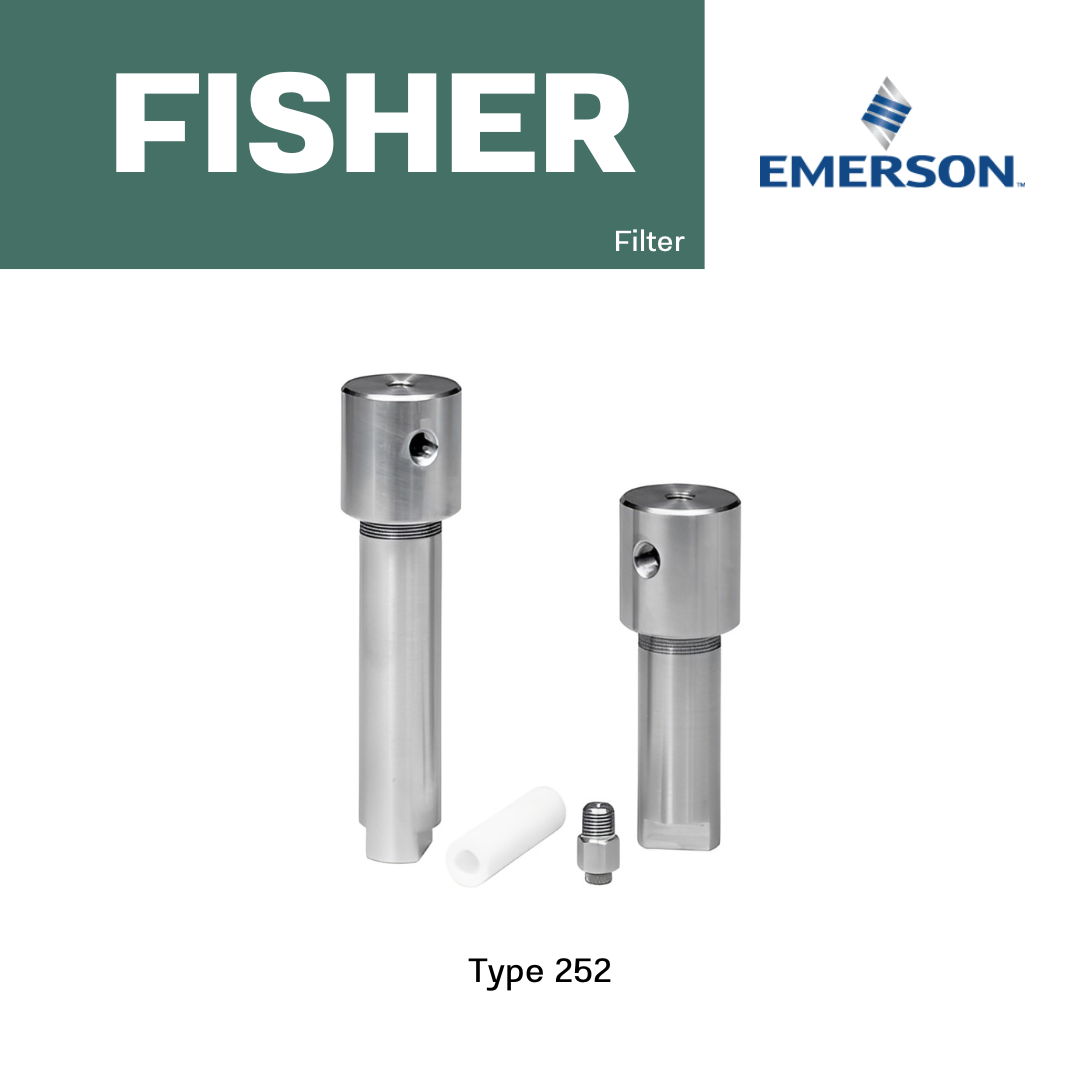

ตัวแทนจำหน่าย Fisher by Emerson Type 252 Filter ในประเทศไทย

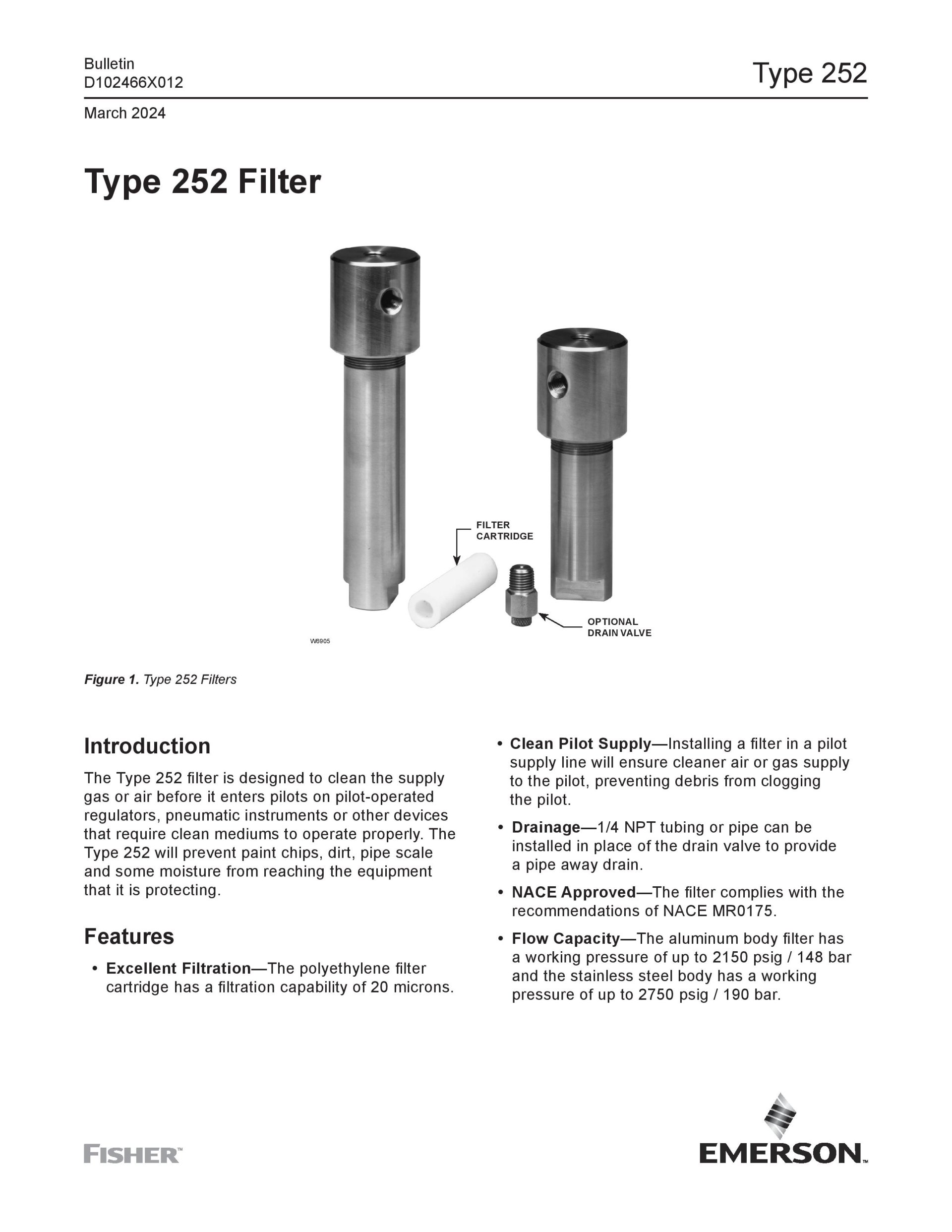

The Fisher Type 252 filter is engineered to purify gas or air before it enters pilot-operated regulators, pneumatic instruments, or other equipment that requires a clean operating medium. By capturing contaminants like pipe scale, dirt, paint chips, and some moisture, the Type 252 helps maintain system performance and reliability.
Features
High-Performance Filtration
• Equipped with a durable polyethylene cartridge, the filter offers 20-micron filtration, effectively capturing fine particulates and ensuring cleaner pilot supply.
Improved System Integrity
• Installing the Type 252 in the pilot supply line protects sensitive components from contamination, helping to reduce clogging and operational issues in pilot devices.
Drainage Option
• The filter includes a drain valve and is compatible with 1/4-inch NPT pipe or tubing for remote drainage, allowing for convenient moisture removal.
NACE Compliance
• The Type 252 is constructed to meet the NACE MR0175 standard, making it suitable for sour gas applications.
Robust Pressure Ratings
• Aluminum Body: Rated for up to 2150 psig / 148 bar
• Stainless Steel Body: Rated for up to 2750 psig / 190 bar
These ratings ensure compatibility with high-pressure systems across a wide range of industries.

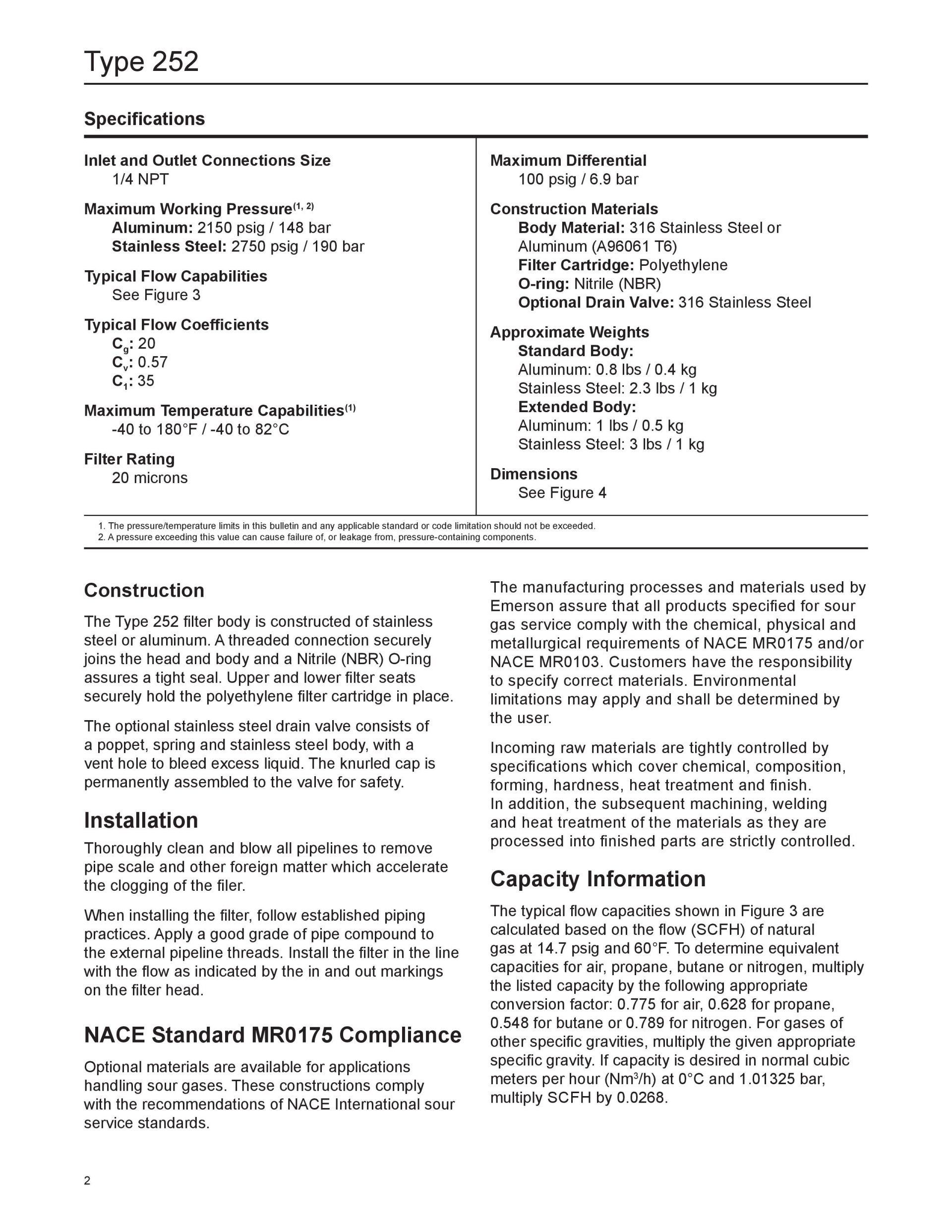

Specifications
Inlet and Outlet Connections Size
• 1/4 NPT
Maximum Working Pressure
• Aluminum: 2150 psig / 148 bar
• Stainless Steel: 2750 psig / 190 bar
Temperature Capabilities
• -40° to 180°F / -40° to 82°C
