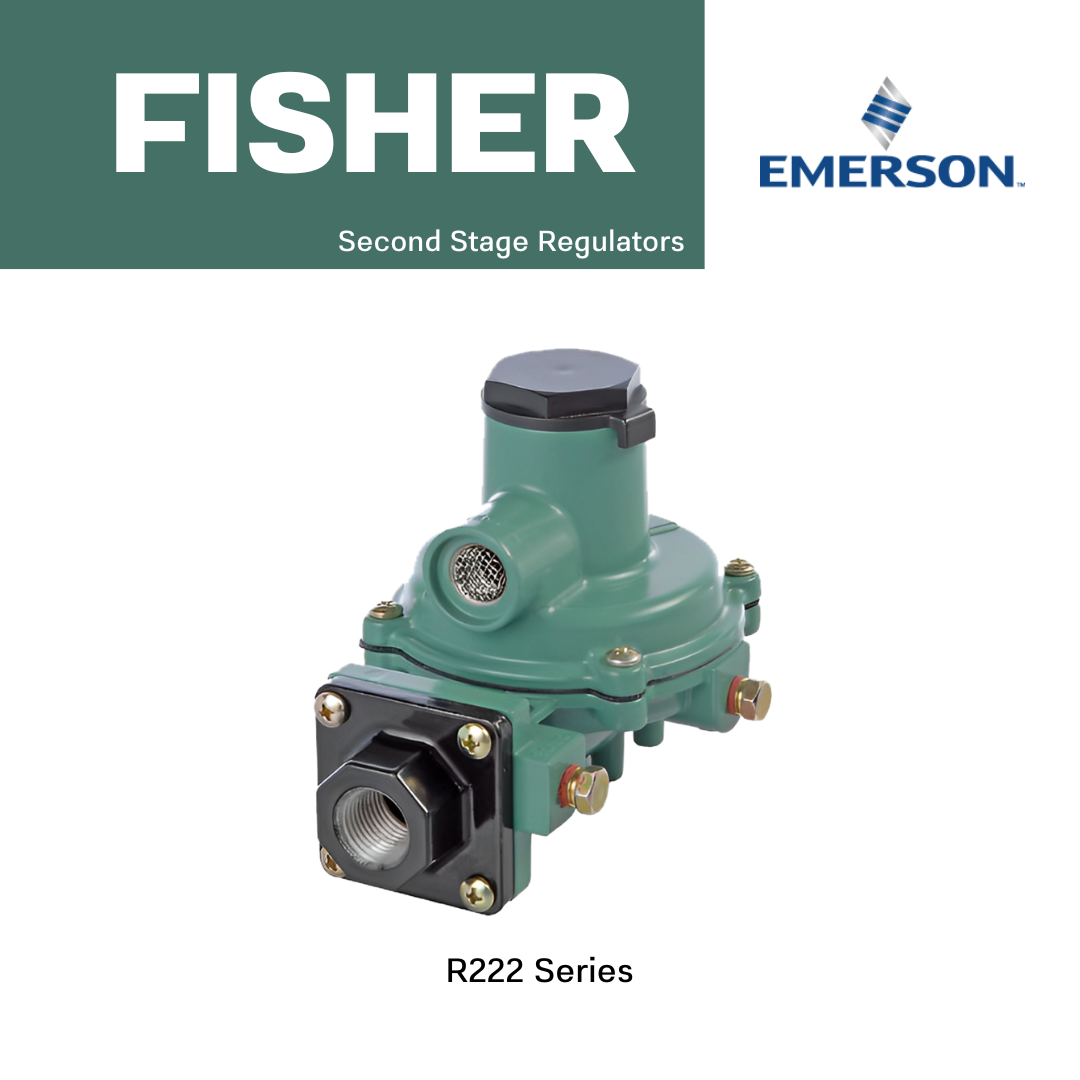

The Fisher Type R222 is a UL®-listed second-stage regulator designed for use in two-stage LP-Gas systems. Its primary function is to reduce the outlet pressure from a first-stage regulator—typically 10 psig (0.69 bar)—to a consistent downstream pressure of 11 inches w.c. / 27 mbar.
With a capacity of up to 650,000 BTU/hr, the compact design of the R222 makes it ideal for small domestic loads and tight installation spaces. In its standard configuration, a screened drip-lip vent is positioned over the inlet.
Features
• 20-Year Recommended Replacement Life
Built using durable, time-tested design principles and corrosion-resistant materials—both inside and out—the R222 offers a long service life. With proper installation and periodic maintenance, the unit is rated for a 20-year replacement interval.
Dual Gauge Taps for Easy System Checks
• Includes built-in 1/8-inch NPT gauge taps on both inlet and outlet sides, orificed to a #54 drill size, allowing convenient and accurate pressure checks.
Proven Durability
• Incorporates the same rugged valve stem linkage design used in Fisher’s R600 Series, providing consistent lockup and regulation performance.
Stable and Accurate Regulation
• Features a large fabric-reinforced diaphragm that ensures precise and reliable pressure control under varying operating conditions.
Compact and Installer-Friendly
• The regulator’s small footprint and accessible wrench flats simplify installation, even in confined spaces. Optional vent orientation with the outlet-facing configuration adds installation flexibility.
Superior Overpressure Protection
• Equipped with a high-capacity relief valve and large vent, the R222 provides protection that exceeds UL standards. It can limit downstream pressure to 2 psig (0.14 bar), even during dual failure scenarios when used with Fisher Type R122H or R622H first-stage regulators.
Corrosion-Resistant Construction
• Internal and external coating processes on all castings enhance corrosion resistance. Additional protection comes from stainless steel relief valve components and a corrosion-resistant seat.
Positive Draining Spring Case
• When installed with the spring case vent pointed downward, the design allows moisture to drain from the spring chamber—helping to prevent corrosion and ice buildup.
Specifications
Body Sizes and End Connection Styles (inlet x outlet)
• 1/2 x 1/2-inch NPT
Maximum Inlet Pressures
• Maximum Inlet Pressure: 10 psig / 0,69 bar
• Emergency Inlet Pressure: 75 psi / 5.2 bar when used with Types R122H, R222H or R622H first stage regulator; 40 psi / 2.8 bar when used with any other first stage regulator.
Outlet Pressure Ranges
• 9.5 to 13 inches w.c. / 24 to 32 mbar spring range
Capacity
• 650,000 BTU/hr
Vent Size
• 3/8 NPT screened
Pressure Registration
• Internal
Temperature Capabilities
• -20° to 160°F / -29° to 71°C
Approximate Weight
• 1.4 Pounds / 635 g
