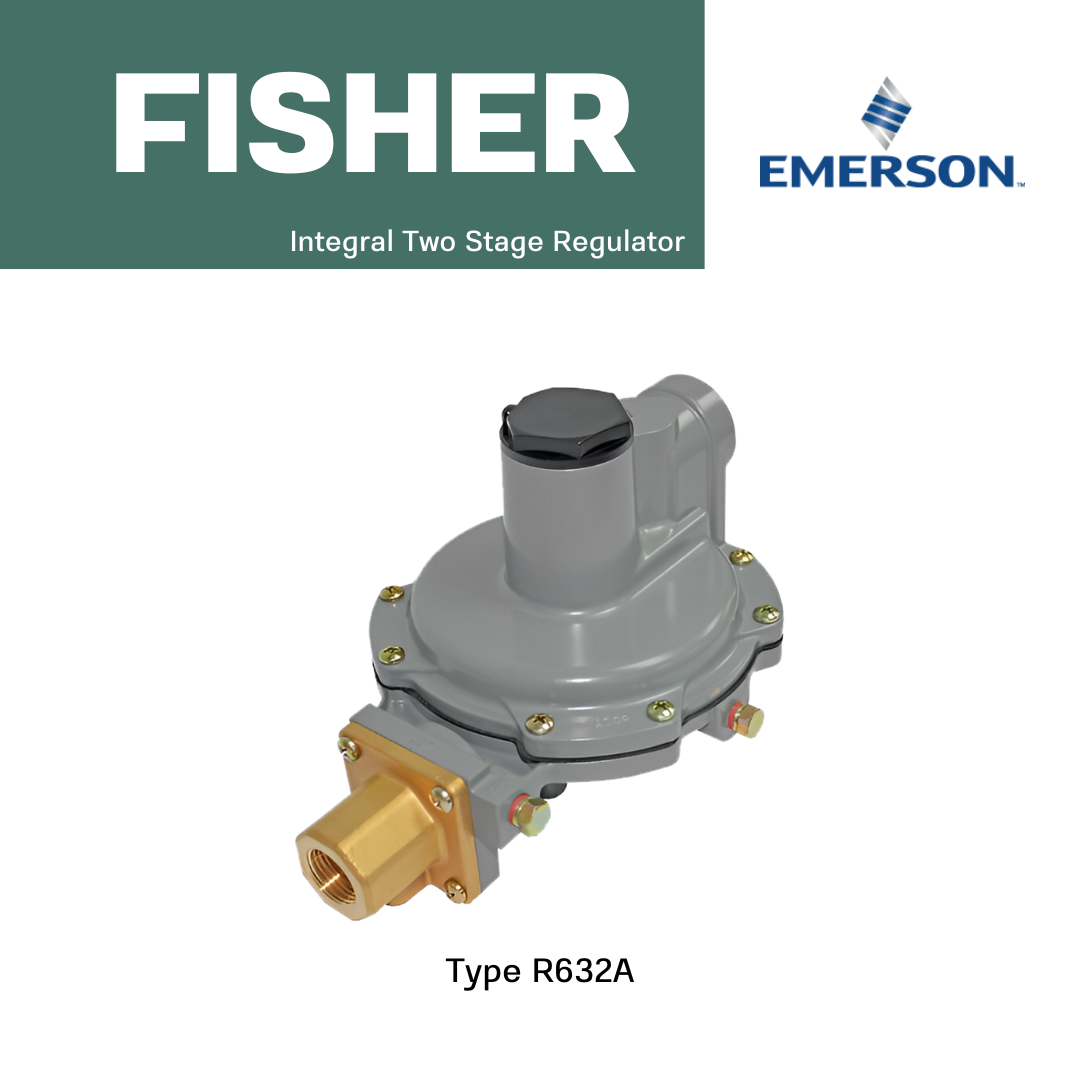

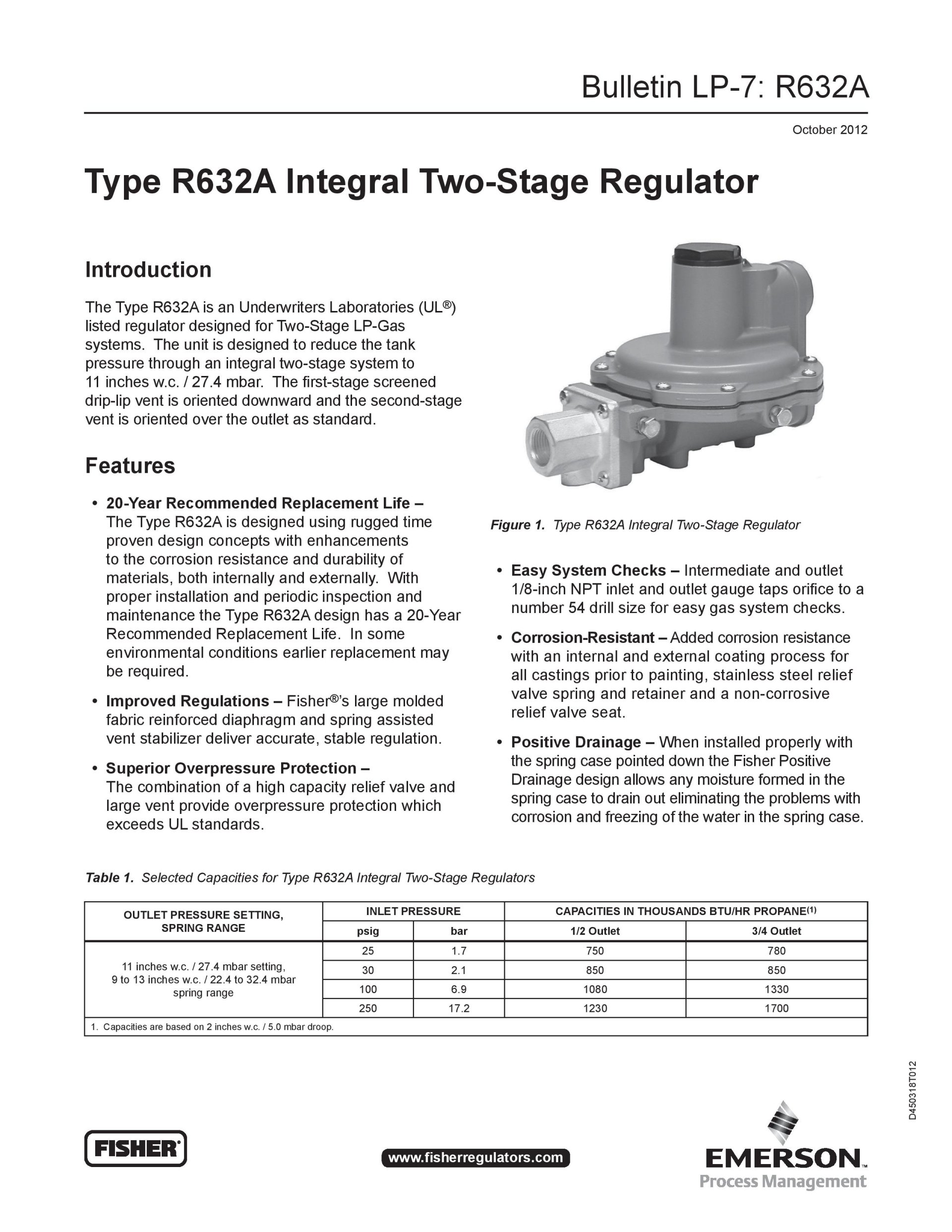

The Fisher Type R632A is a UL®-listed regulator specifically designed for two-stage LP-Gas systems. It reduces tank pressure through an integrated two-stage configuration to 11 inches w.c. / 27.4 mbar. The regulator comes with a first-stage screened drip-lip vent oriented downward and a second-stage vent positioned above the outlet as standard.
Features
20-Year Recommended Replacement Life
• Engineered with rugged, time-tested design principles and enhanced materials, the R632A offers exceptional durability and corrosion resistance—both inside and out. With proper installation, inspection, and periodic maintenance, this regulator is recommended for up to 20 years of service life. In more demanding environments, earlier replacement may be necessary.
Accurate Pressure Regulation
• Utilizes a large, molded, fabric-reinforced diaphragm and spring-assisted vent stabilizer to deliver consistent and stable outlet pressure control.
Enhanced Overpressure Protection
• Combines a high-capacity relief valve with a large vent to offer superior protection from overpressure events, exceeding UL safety standards.
Simplified System Testing
• Equipped with 1/8-inch NPT inlet and outlet gauge taps drilled to a #54 size, enabling quick and easy system checks without disassembly.
Corrosion-Resistant Construction
• Features both internal and external coatings on castings, plus stainless steel components for the relief valve spring and retainer. Non-corrosive materials are used throughout critical components for long-term reliability.
Fisher Positive Drainage Design
• When installed with the spring case facing downward, the design allows moisture to drain out—preventing corrosion and ice formation inside the spring chamber.
TYPE NUMBER
• R632A-BCF
• R632A-bcfxa
• R632A-HCF
• r632A-hcfxa
• R632A-CFF
• r632A-cffxa
• R632A-JFF
• r632A-jffxa
Specifications

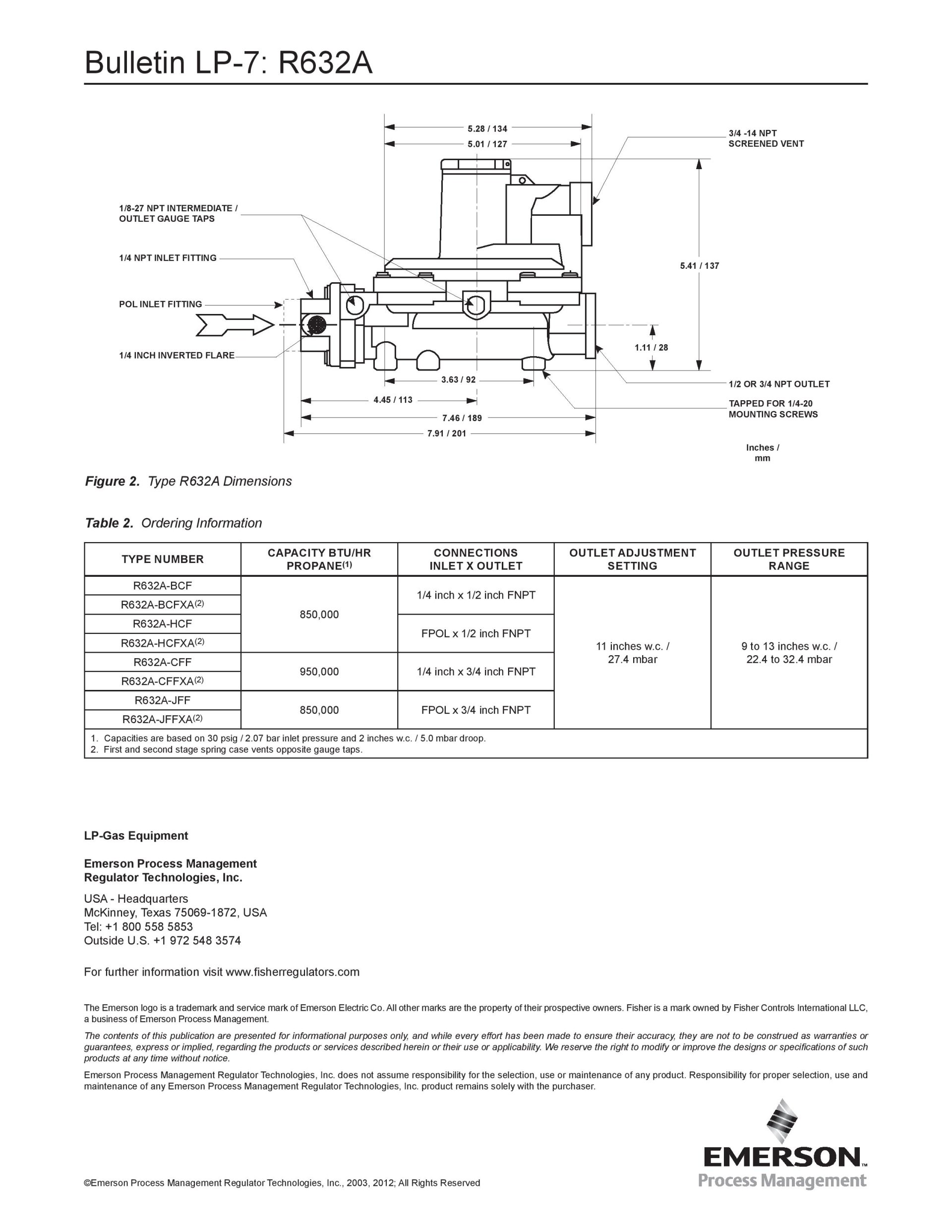

Body Sizes and End Connection Styles (inlet x outlet)
• 1/4 inch x 1/2 inch FNPT, FPOL x 1/2 inch FNPT, 1/4 inch x 3/4 inch FNPT, FPOL x 3/4 inch FNPT
Maximum Allowable Inlet Pressure
• 250 psig / 17,2 bar
Outlet Pressure Ranges
• 9 to 13 inches w.c. / 22.4 to 32.4 mbar spring range
Capacity
• Up to 950,000 BTU/hr
Vent Size
• 1st Stage : 1/4 NPT Inverted Flare
• 2nd Stage : 3/4 NPT screened
Temperature Capabilities
• -20° to 160°F / -29° to 71°C
Approximate Weight
• With FPOL: 2.9 lbs / 1310 g
• With NPT fitting: 2.5 lbs / 1125 g
